APPLICATION: Approved for use in all indoor and outdoor locations

exposed to moisture and rain, corrosive fumes, non-explosive vapors and

gases or non-combustible dusts. Vapor tight and rain tight. May be

mounted directly to a wall or octagon box.

LIGHT SOURCE: Standard incandescent fixture for medium base “A” lamp.

Fixtures can be equipped with an optional ballast housing for up to 42 watt

compact fluorescent or 150 watt metal halide or high pressure sodium.

See ballast option on page 12

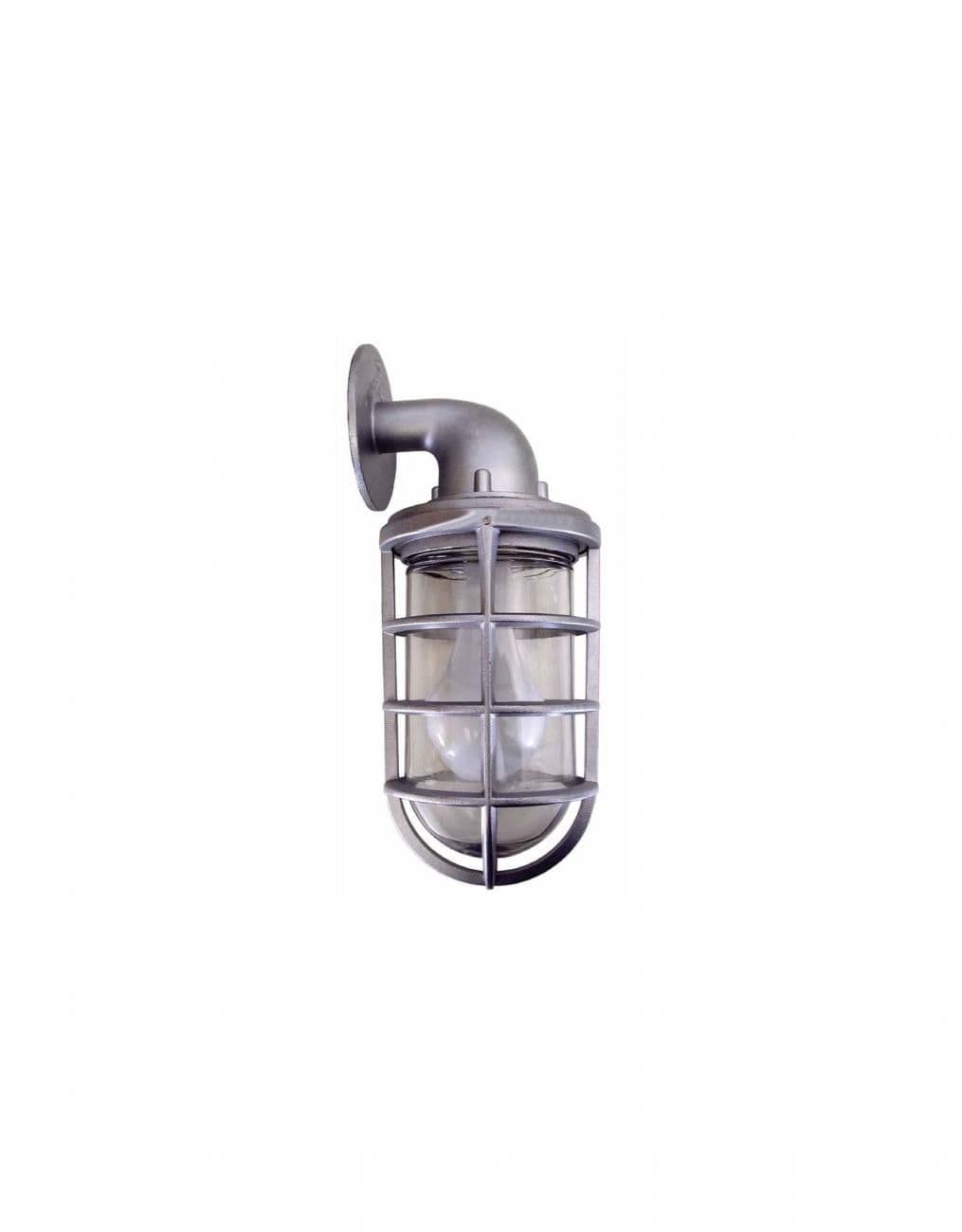

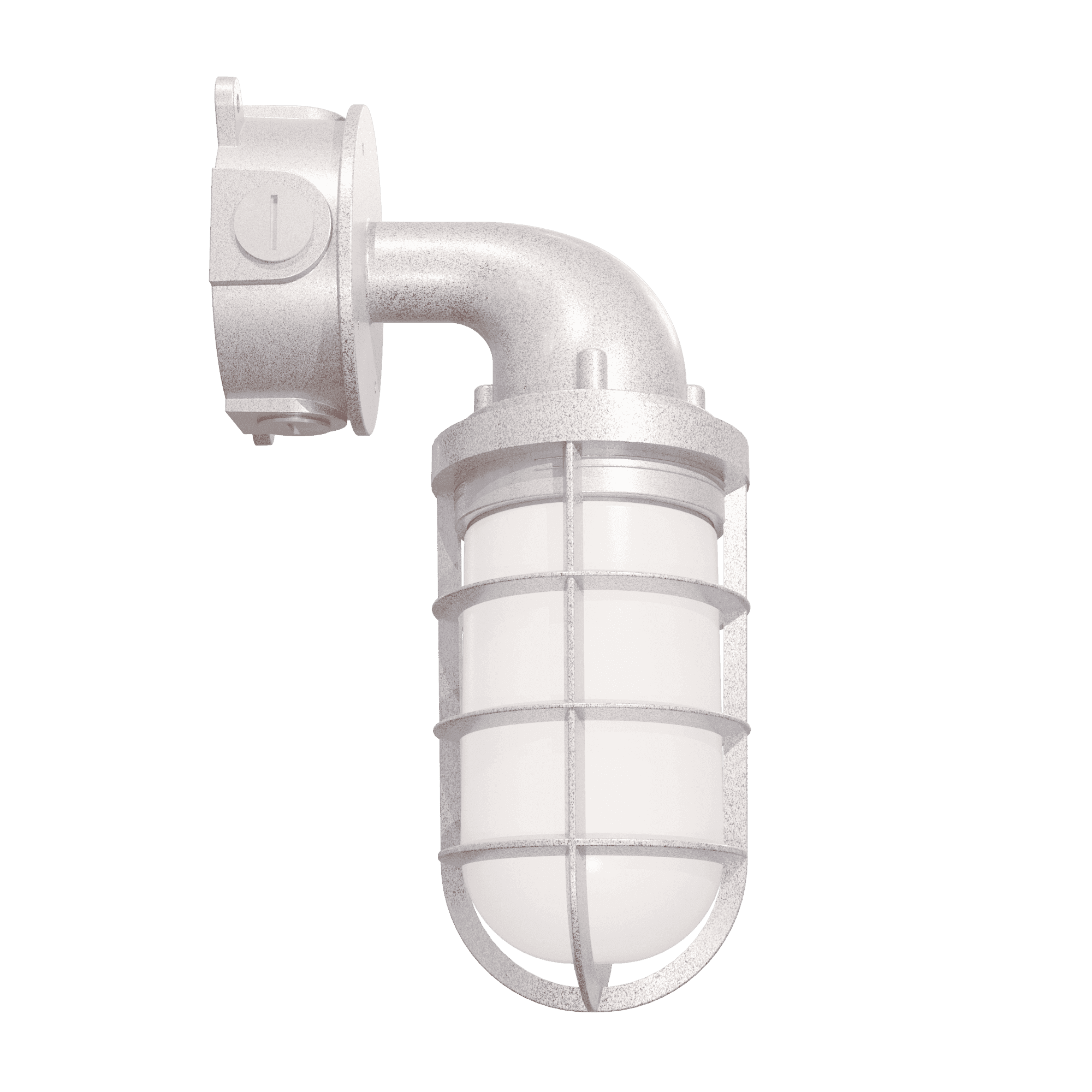

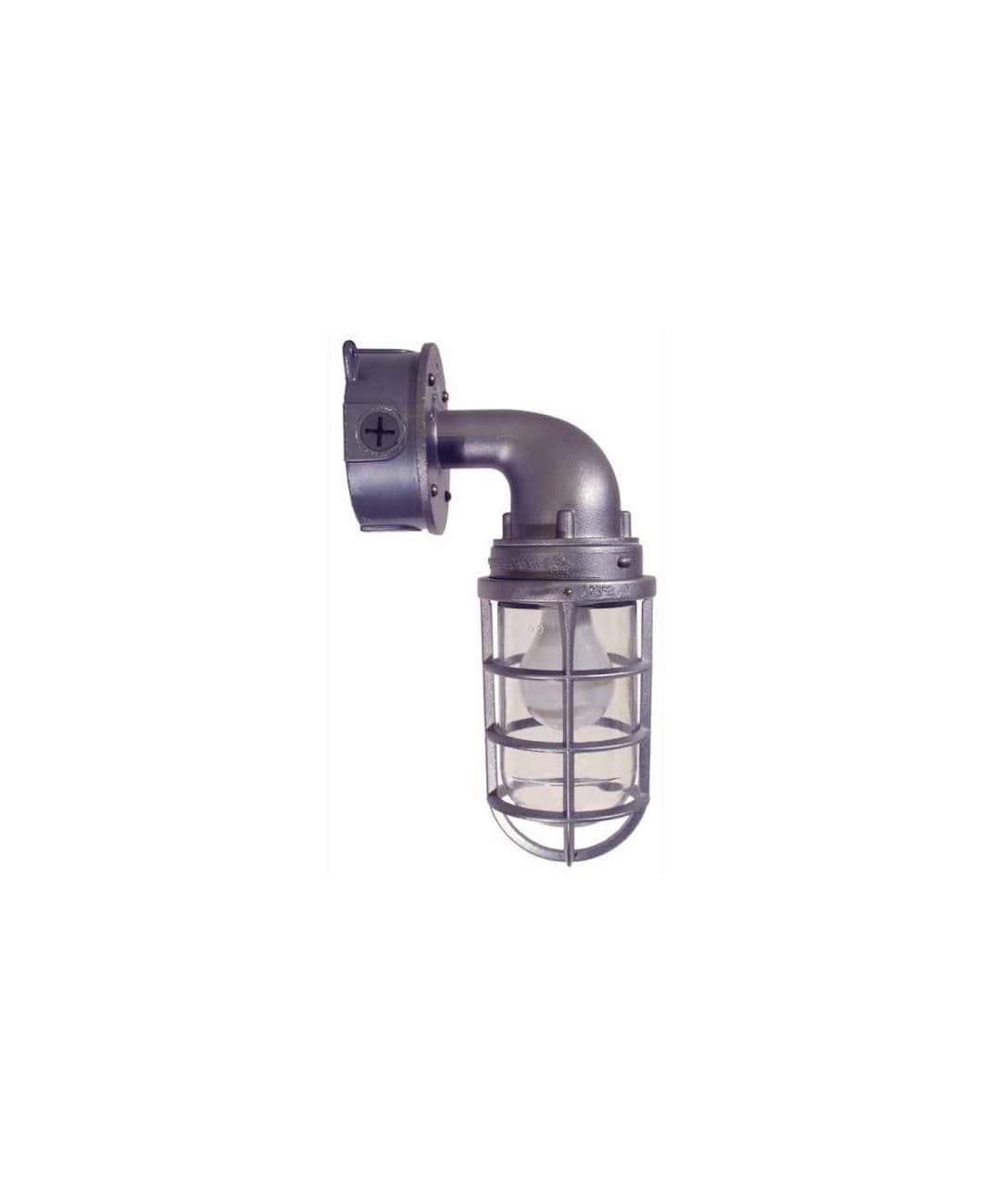

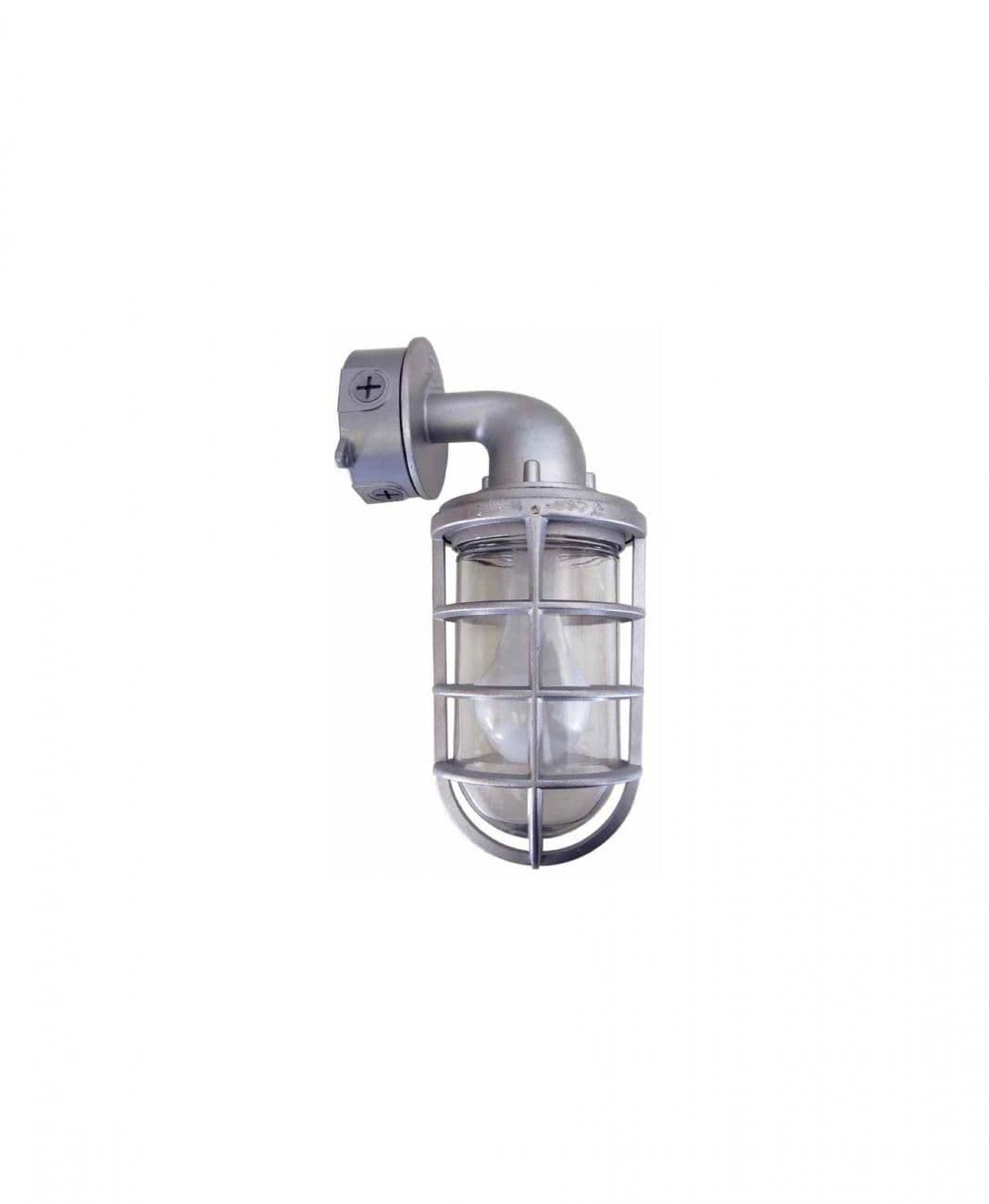

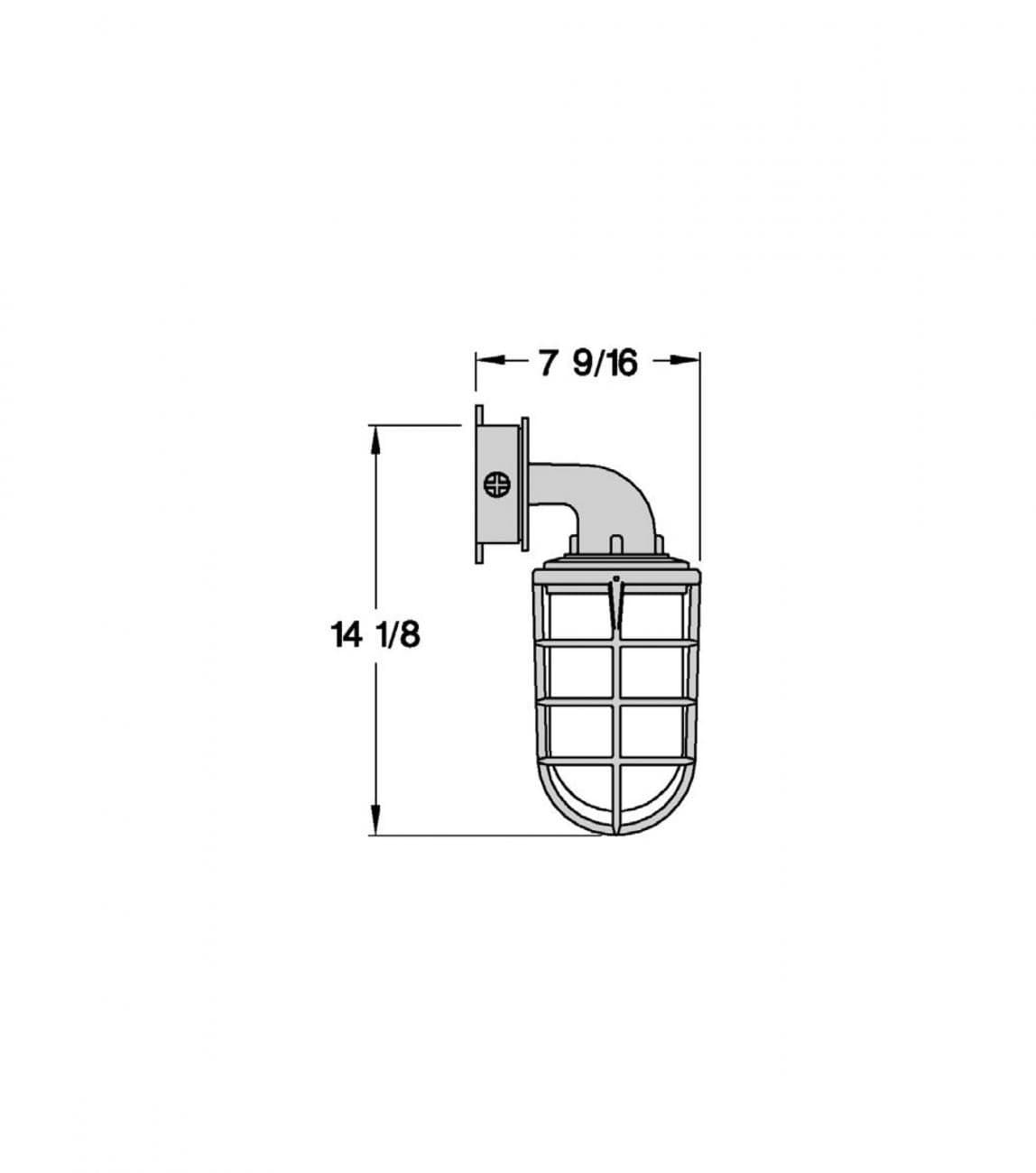

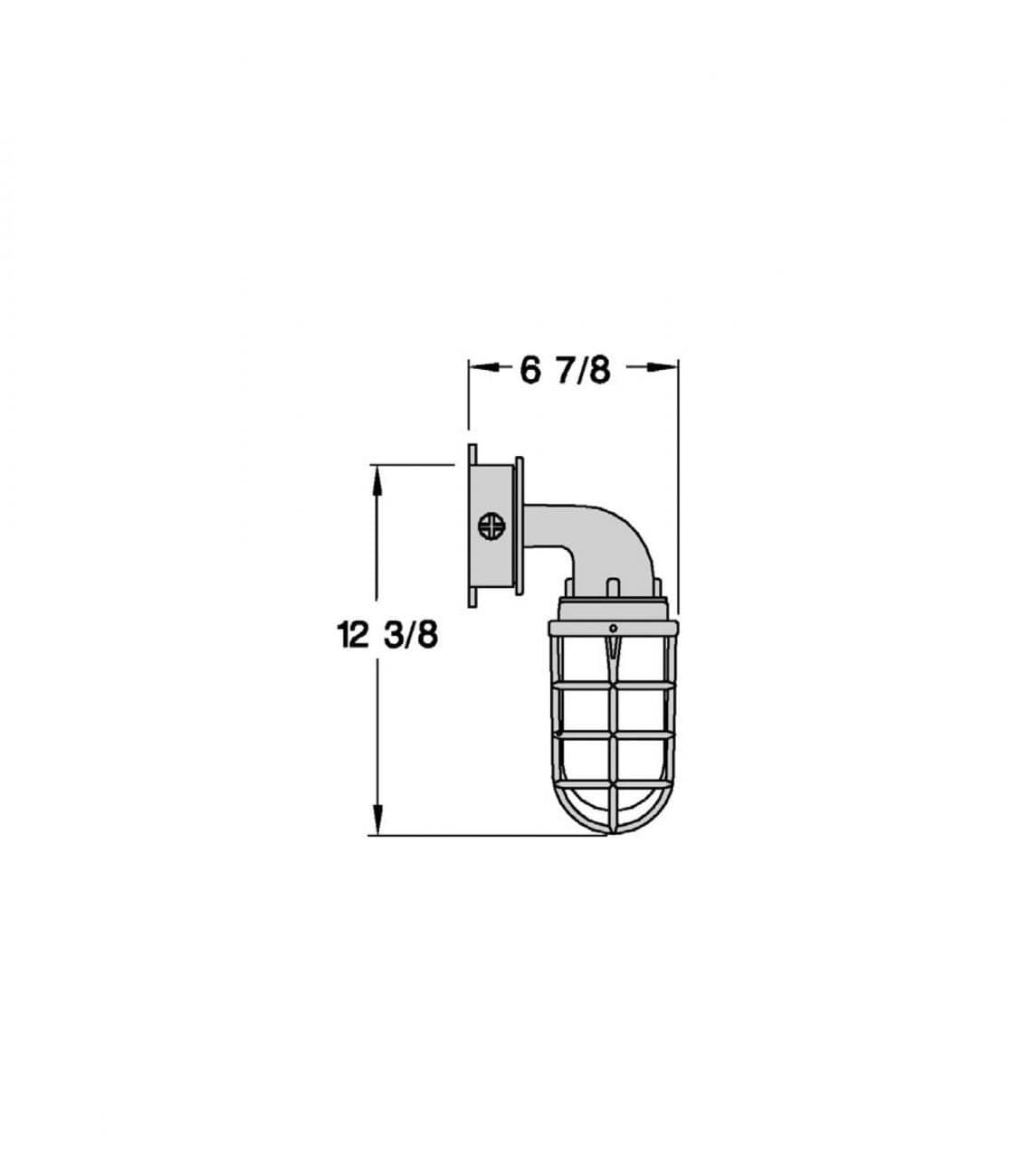

HOUSING CONSTRUCTION: Wall mount type with optional heavy duty

die-cast aluminum junction box, tapped 1/2” or 3/4”. Die-cast threaded

aluminum globe fitter assembly with exterior threads for optional die-cast

aluminum screw-on guard.

FINISH: Standard finish is textured natural aluminum. Optional powder

coat finishes are available at an additional cost. See ordering guide for

complete list of finishes.

GUARD: Threaded, die-cast aluminum with stainless steel, headless hex

type set-screw.

GLOBE: Threaded for easy lamp replacement. Standard globe is clear

glass. Optional glass globes include prismatic, opal, blue, green, amber

or red. Lexan globes in clear or colors are also available. Cast guard

option is not available with Lexan globes. See ordering guide for

complete list of globes.

SOCKET: Standard units include a medium base, glazed porcelain, 4KV

pulse rated lamp holder with nickel plated screw shell and spring loaded

center contact. Compact fluorescent ballast option includes a

GX24Q-3 / GX24Q-4 universal 4-pin socket for 26, 32 or 42 watt triple

tube lamps.

HARDWARE: All fasteners are stainless steel.

GASKETS: Memory retentive, die-cut silicone for superior sealing and heat

resistance.

APPROVALS: Listed with Underwriter’s Laboratories for

WET LOCATIONS. C-UL Listed for Canada.

BAA/BABA: Please add either BAA or BABA to end of part number if job requires.
