Beretto Aluminum Spinning

Decorative Reflectors
Pendant
Product Information: Beretto Aluminum Spinning

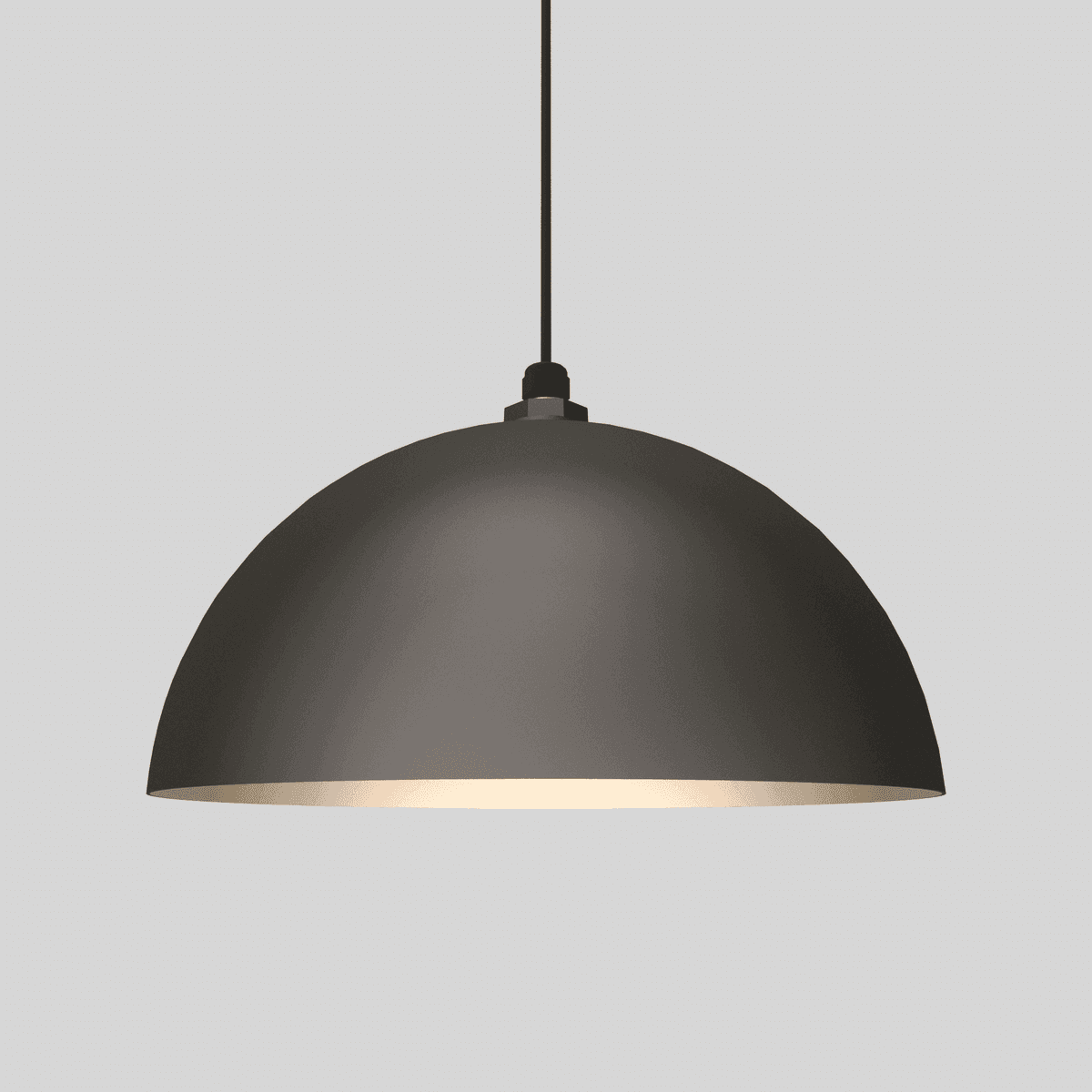

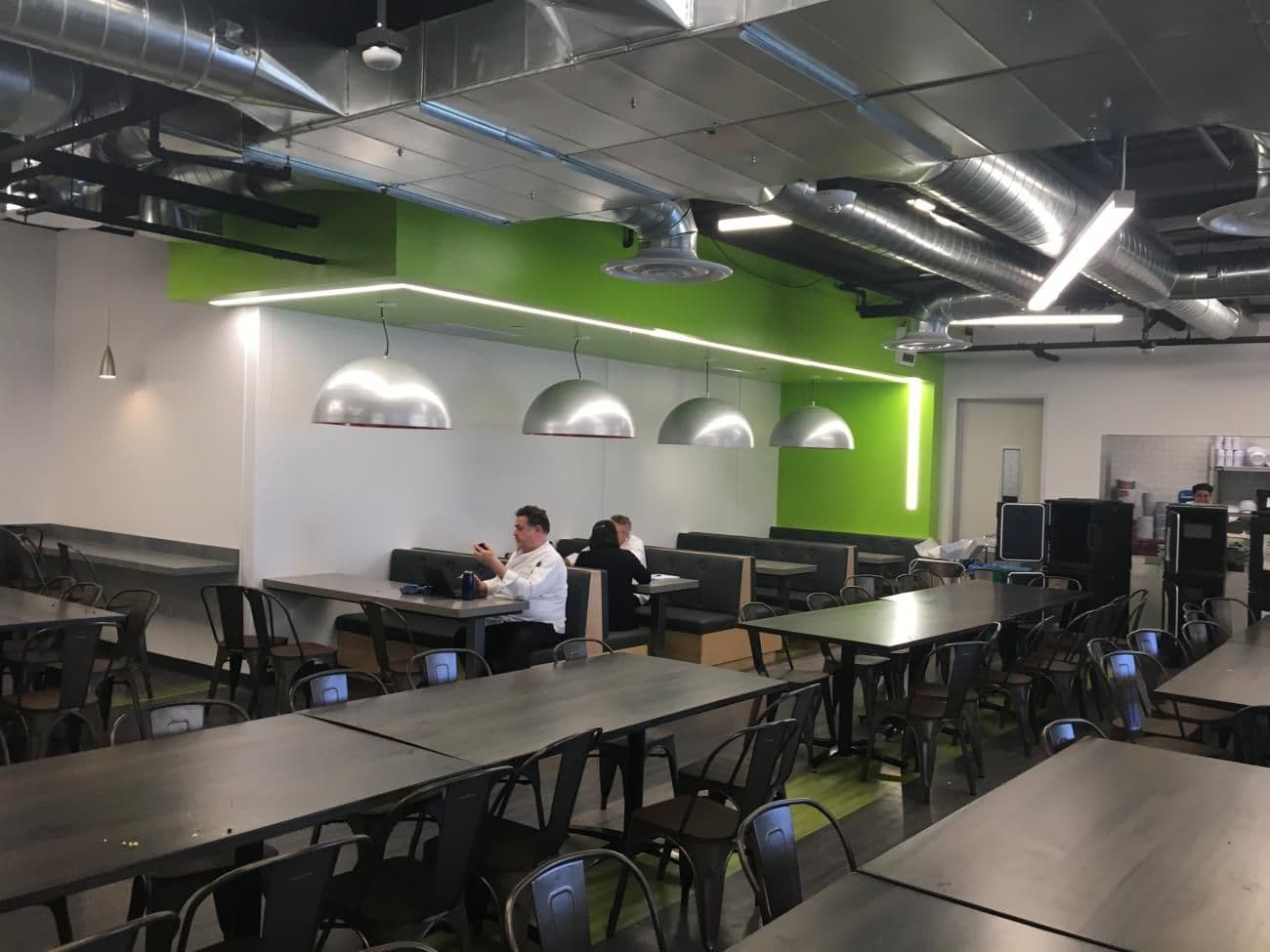

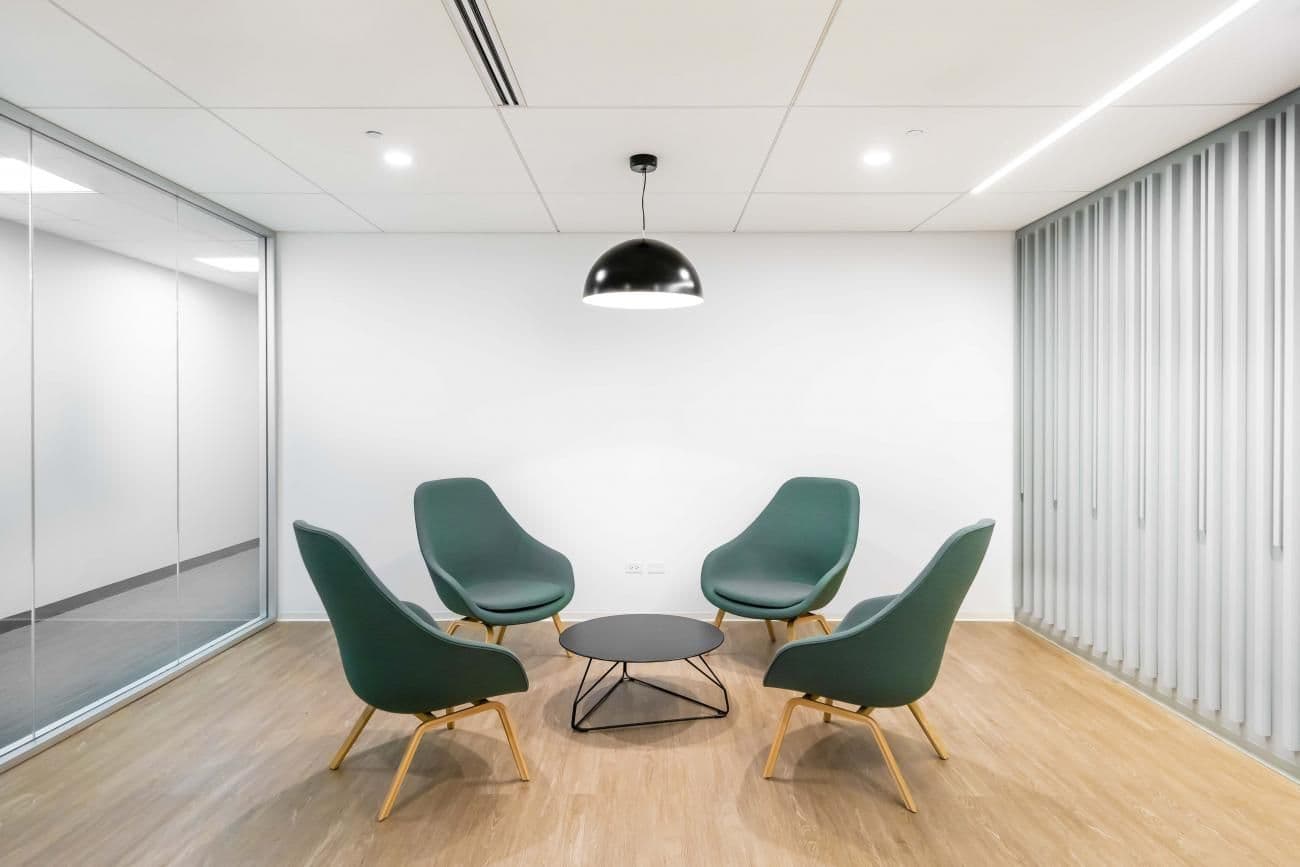

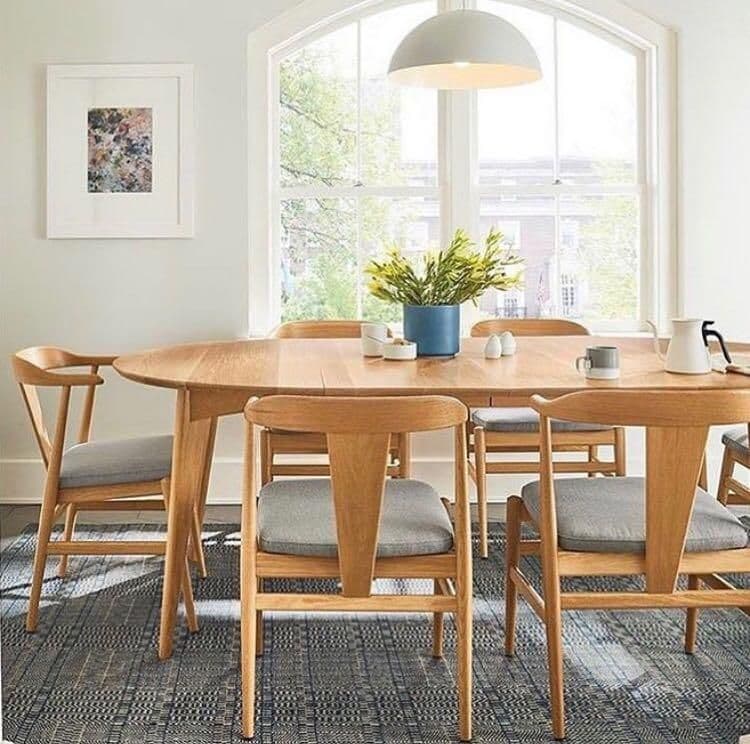

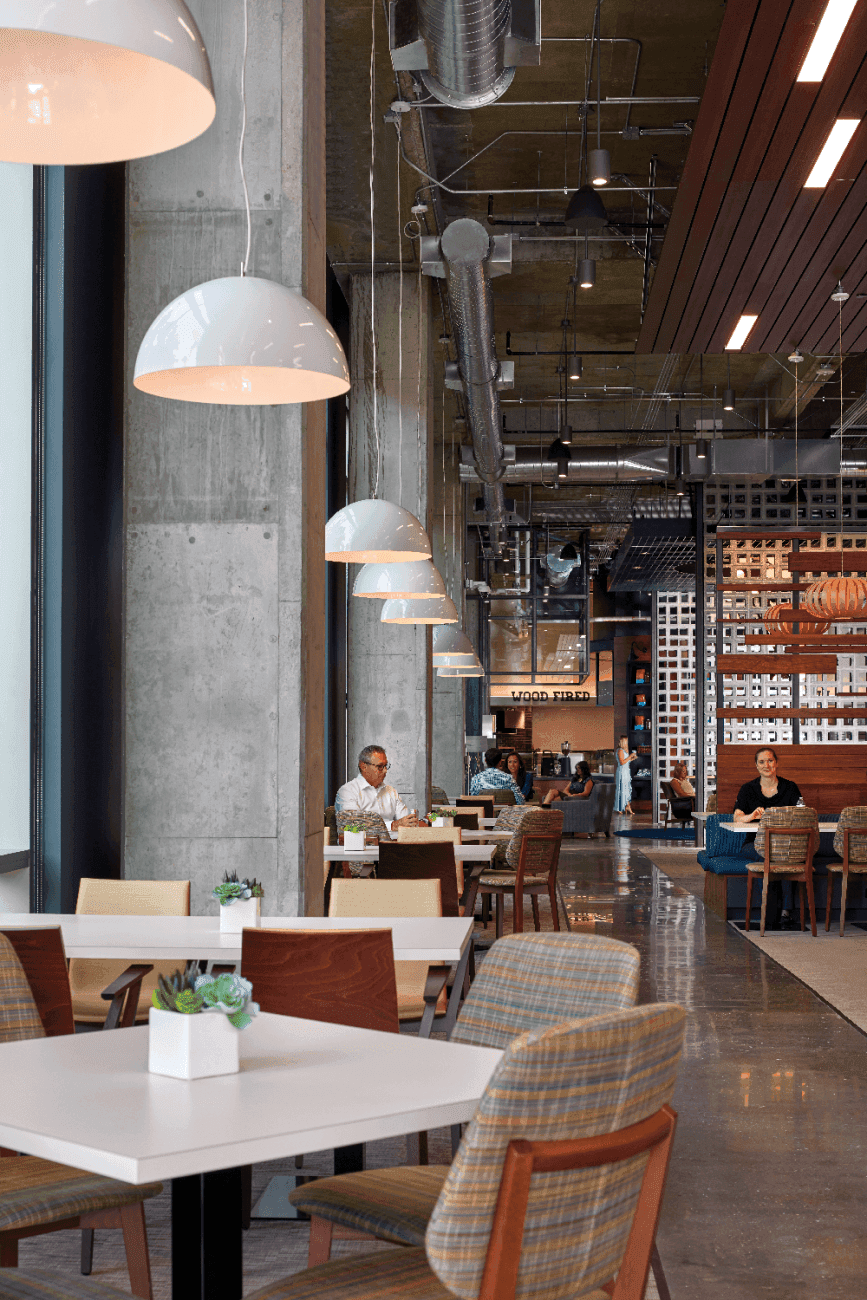

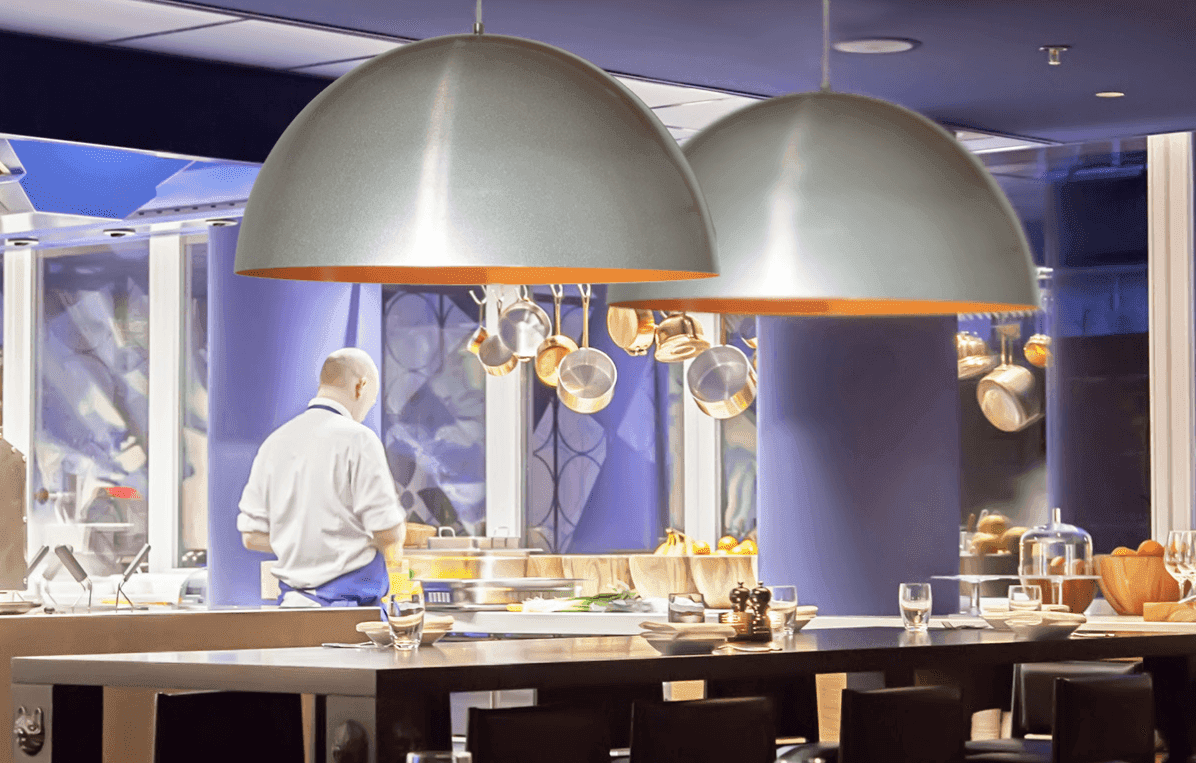

The Beretto Aluminum Pendant is a spun aluminum metal shade with two tone high quality powder coat finish. Lamp Type options include LED, Compact Fluorescent, Incandescent. Fixture is provided with 10 foot of field cuttable cord in Black, White and Silicone. LED and Incandescent version dimmable with either Triac , ELV, 0-10V or Lutron Dimming.

Concept
Finish: Available in a variety of powder coat colors inside and out. Brushed nickel strain relief.

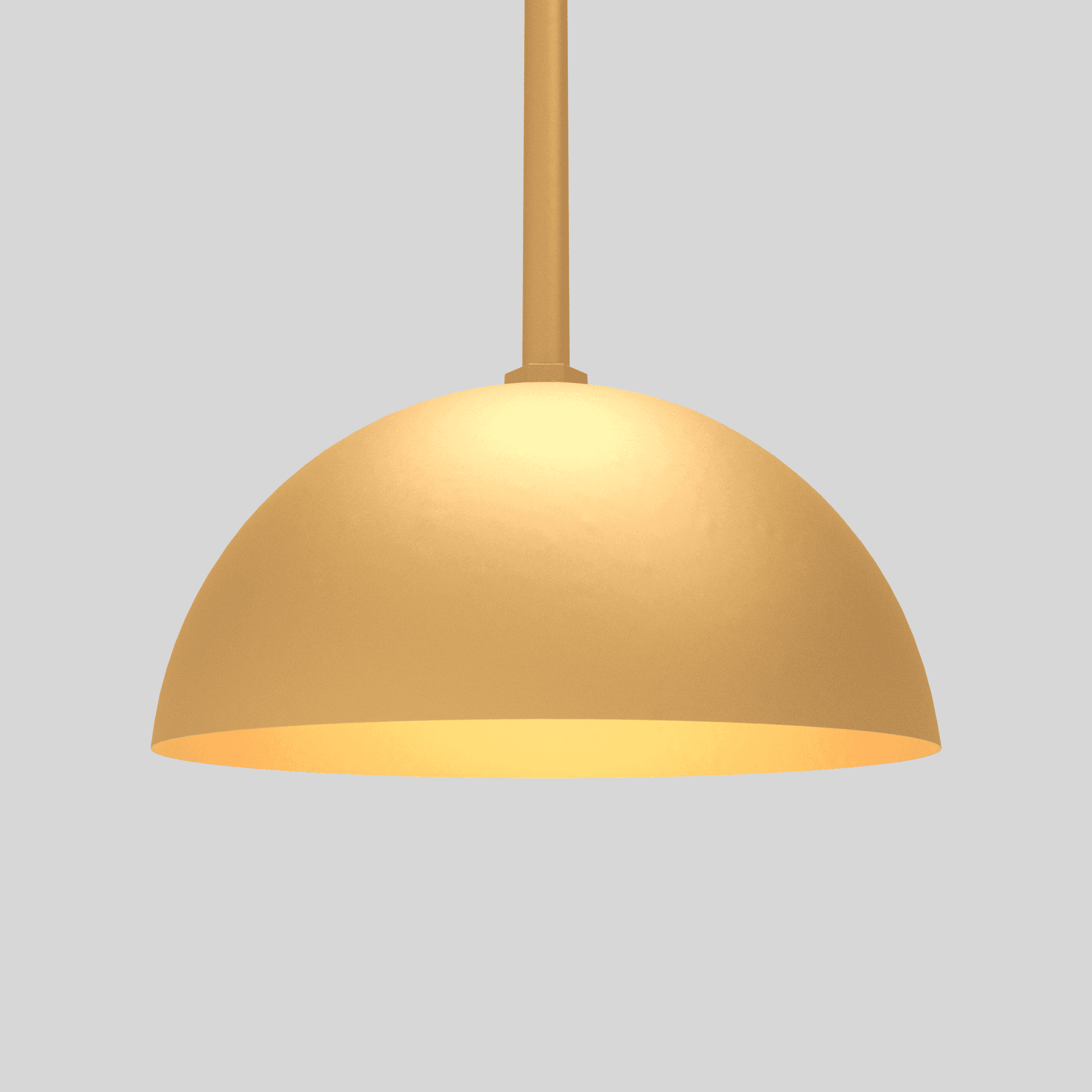

Mounting: Cord in Silicone, Black or White. Stem 1/2" or 3/4" with top mounting.
Material: Spun Aluminum
Certification: cULus, Damp Location
Available: Beretto Handblown Glass in Satin White & Red, 15” & 20”

Reflector
BERET15 = 15” Diameter, 7.5” Height - Pendant
BERET20 = 20” Diameter, 10” Height -  Pendant
BERET24 = 24” Diameter, 12” Height -  Pendant
BERET36 = 36” Diameter, 18” Height - Pendant
BERET48 = 48” Diameter, 24” Height - Pendant
BERET60 = 60” Diameter, 30” Height - Pendant - COMING SOON

Finish
In = iXX   Ext = eXX
G0 = Black G1 = White G12 = Brushed Aluminum G25 = Navy Blue G50 = Neon Orange G51 = Neon Pink G52 = Neon Yellow G53 = Lime Green Neon R* = RAL Color - More color options available on the Bock Lighting website. http://bock.lighting/colors

Lamp Type
LVG02-(W)-(K) = Cree CXA LED with ERP Driver, 120V Only, Triac Dimmable, 80CRI. Takes 1 Module.
     9W, 950LM, 27/30/35/40K
     13W, 1,400LM, 27/30/35/40K
LAC01-13W-(K) = 13W, AC LED, 120V Only, 30/40K, 1,000LM, Takes 1 Module.
LBA01-(M)-(LM)-(K) = LBA01 Module, Cree LEDs, Philips Driver, 120-277V, 0-10V Dimming (Only offered in 20"+, all require driver)
     1 Module M=1 = LM=850(8W)/1250(11W)/2000(19W)/3000(29W)LM, K=27/30/35/40K
     2 Module M=2 = LM=850(16W)/1250(22W)/2000(38W)/3000(58W)LM, K=27/30/35/40K
MED = Medium Base E26, 60W Max
GU24 = GU24, 32W Max

Canopy with Driver Enclosure
BCC6C(CSL/BK/WH) = Ballasted Canopy for Cords, LBA01 & G24Q
BCC6CHD(CSL/BK/WH) = Ballasted Canopy for Cords, LBA01 & G24Q
BCC6A(BK/WH) = Ballasted Canopy with swivel aligner for 1/2" or 3/4" Stems, LBA01 & G24Q
BCC6S(BK/WH) = Ballasted Canopy for 1/2" or 3/4" Stems, LBA01 & G24Q

Canopy
640(BK/WH) = Canopy held in place with a slip ring for 1/2" or 3/4" Stems, LVG02, LAC01 & MED (Does not require driver)
642(BK/WH) = Canopy Self aligning aluminum die cast aligner for 1/2" or 3/4" Stems, LVG02, LAC01 & MED (Does not require driver)
643HD(CSL/BK/WH) = Canopy for Cords with Aircraft Cable, LVG02, LAC01 & MED (Does not require driver)

Stem Length:

6"

12"

18"

24"

36"

48"

60"

72"

1/2"-NPT

ST2-6

ST2-12

ST2-18

ST2-24

ST2-36

ST2-48

ST2-60

ST2-72

3/4"-NPT

ST3-6

ST3-12

ST3-18

ST3-24

ST3-36

ST3-48

ST3-60

ST3-72

LensPipe 1/2"or 3/4" threaded N.P.T. both ends.
Additional lengths available on request, Consult Factory.
If installed outdoors use a thread sealant on all threads. Be sure thread size of reflector and stem both match.

FL = Frosted Lens. Mounts 1/3 from Bottom of reflector.
    FL-BERET15 = 2.5in, FL- BERET20 =3.3in , FL- BERET24 = 4in, FL- BERET36 = 6in, FL- BERET48 = 8in, FL- BERET60 = 10in
