About Tenda Aluminum

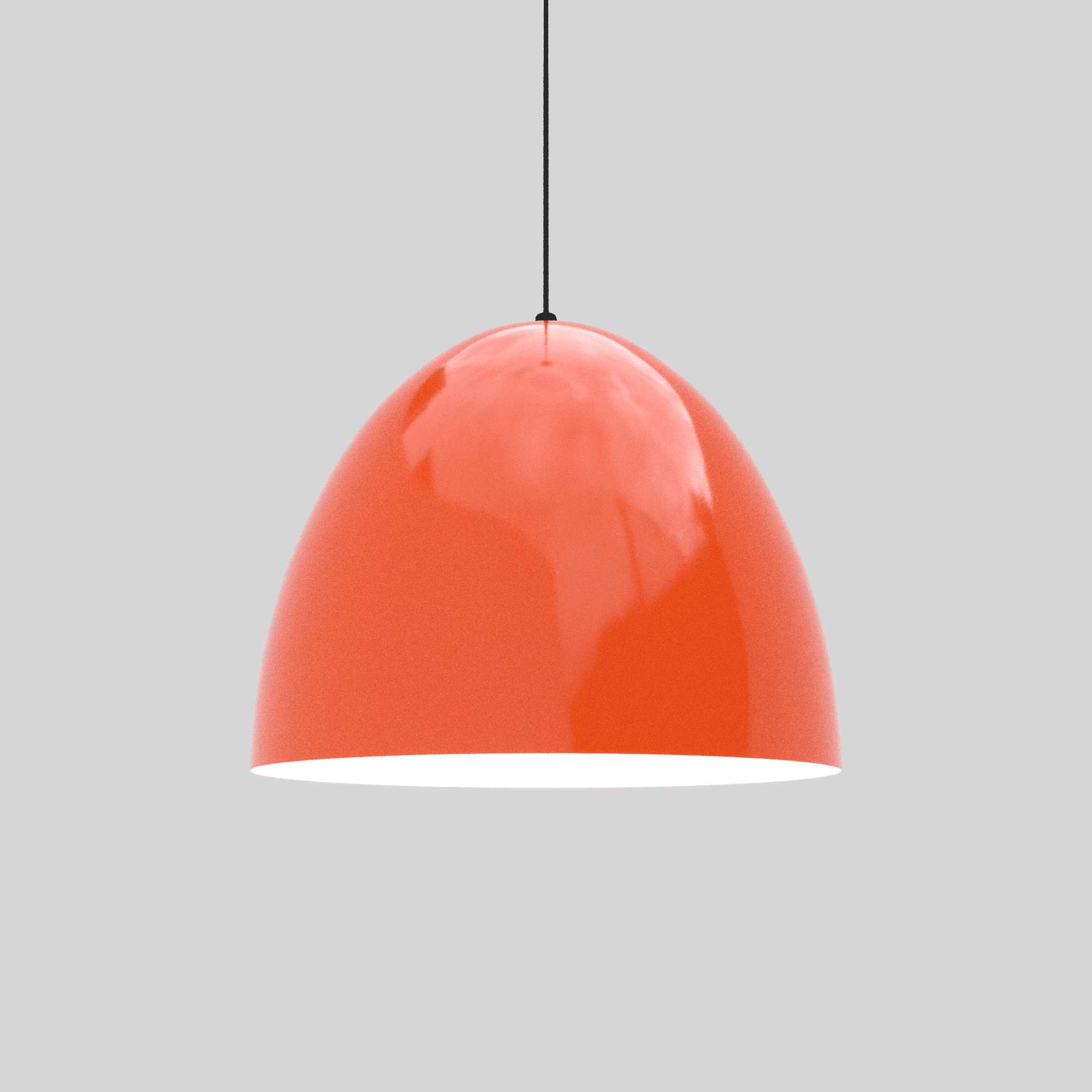

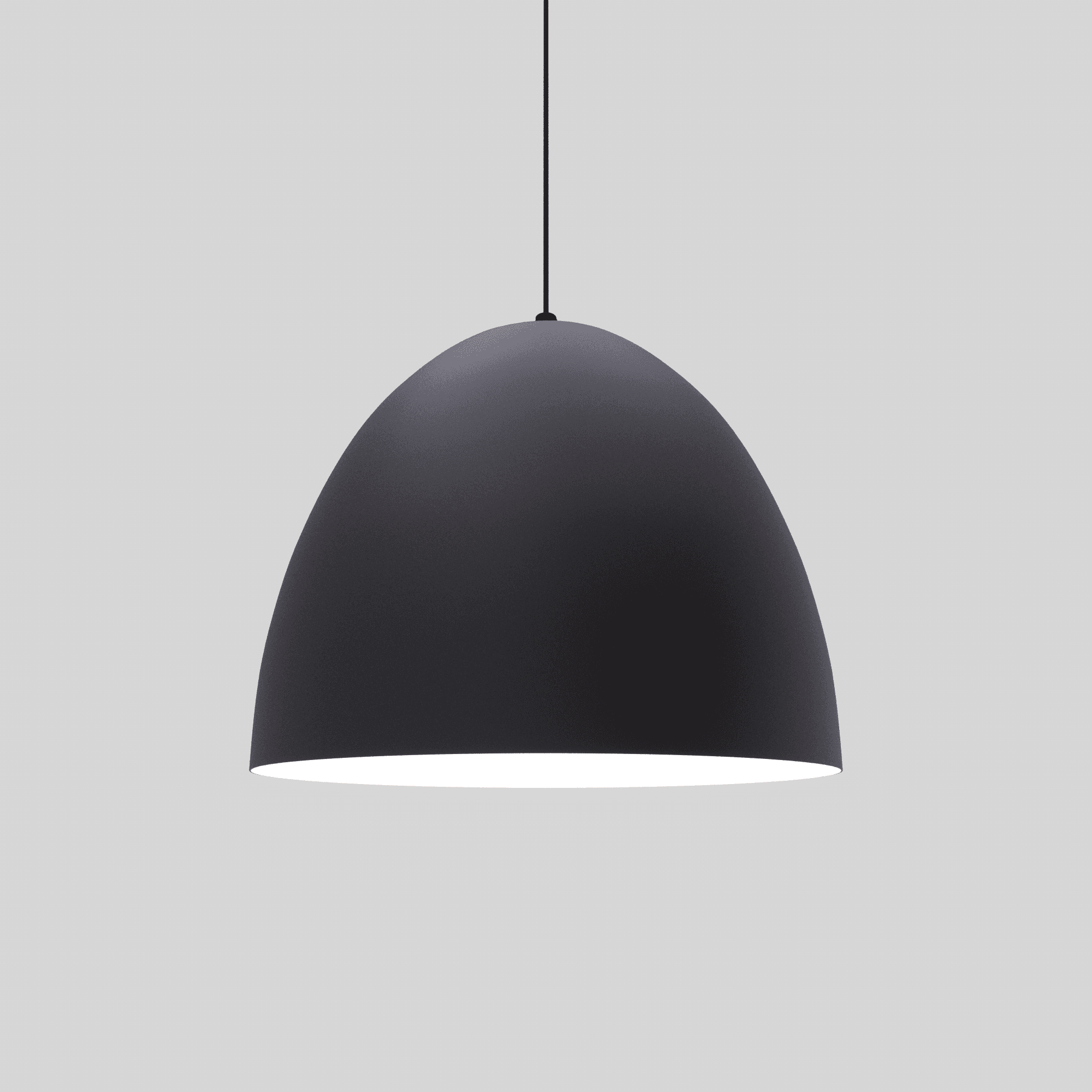

The Tenda Aluminum is a decorative commercial pendant with an aluminum finish that looks best in large indoor spaces. There are a variety of colors available to add a pop of color to the inside of your fixture to contrast the exterior of the aluminum spun shade.

Finish: Variety of colors available for inside and out
Material: Spun Aluminum
Certification: cULus, Dry Location
Available: Hand Blown Glass

TENDA17 = Tenda 17in Aluminum Reflector

Finish In = iXX Ext = eXX
G0 = Black G1 = White G12 = Brushed Aluminum G25 = Navy Blue G50 = Neon Orange G51 = Neon Pink G52 = Neon Yellow G53 = Lime Green Neon R* = RAL Color - More color options available on the Bock Lighting website. http://bock.lighting/colors

Lamp Type
MED = Medium Base E26, 60W Max
GU24 = GU24, 32W Max
LVG02-(W)-(K) = Cree CXA LED with ERP Driver, 120V Only, 80CRI
    9W, 950LM, 27/30/35/40K
    13W, 1,400LM, 27/30/35/40K
LBA01-(M)-(LM)-(K) = LBA01 Module, Cree LEDs, 120-277V, 0-10V Dimming, Requires Ballast Box
    1 Module M=1 = LM=850/1250/2000/3000LM, K=27/30/35/40K
    2 Module M=2 = LM=850/1250/2000/3000LM, K=27/30/35/40K
G24Q(26/32/42) = Triple-Tube 4-Pin Fluorescent, Universal Voltage, Requires Ballast Box

Ballast Box
BCC6C(BK/WH) = Ballast Box for LBA01 & G24Q

FL = Frosted Lens. Mounts 1/3 (4in) from Bottom of reflector.
