Cat#Mat WattDiaHt

VRM-A12

100W

12.50"

10.25"

VRM-A14

100W

14.50"

10.25"

VRM-A16

100W

16.50"

10.25"

VRM-B12

100W

12.50"

10.25

VRM-B14

100W

14.50"

10.25"

VRM-B16

100W

16.50"

10.25"

VRM-C12

100W

12.50"

10.25"

VRM-C14

100W

14.50"

10.25"

VRM-C16

100W

16.50"

10.50"

VRM-C18

100W

18.75"

11.25"

VRM-C20

100W

20.25"

11.75"

VRM-D12

100W

12.50"

10.25"

VRM-D14

100W

14.50"

10.25"

VRM-D16

100W

16.50"

10.25"

VRM-D18

100W

18.50"

10.75"

VRT-A12

100W

12.50"

10.25"

VRT-A14

100W

14.50"

10.25"

VRT-A16

100W

16.50"

10.25"

VRT-B12

100W

12.50"

10.25

VRT-B14

100W

14.50"

10.25"

VRT-B16

100W

16.50"

10.25"

VRT-C12

100W

12.50"

10.25"

VRT-C14

100W

14.50"

10.25"

VRT-C16

100W

16.50"

10.50"

VRT-C18

100W

18.75"

11.25"

VRT-C20

100W

20.25"

11.75"

VRT-D12

100W

12.50"

10.25"

VRT-D14

100W

14.50"

10.25"

VRT-D16

100W

16.50"

10.25"

VRT-D18

100W

18.50"

10.75"

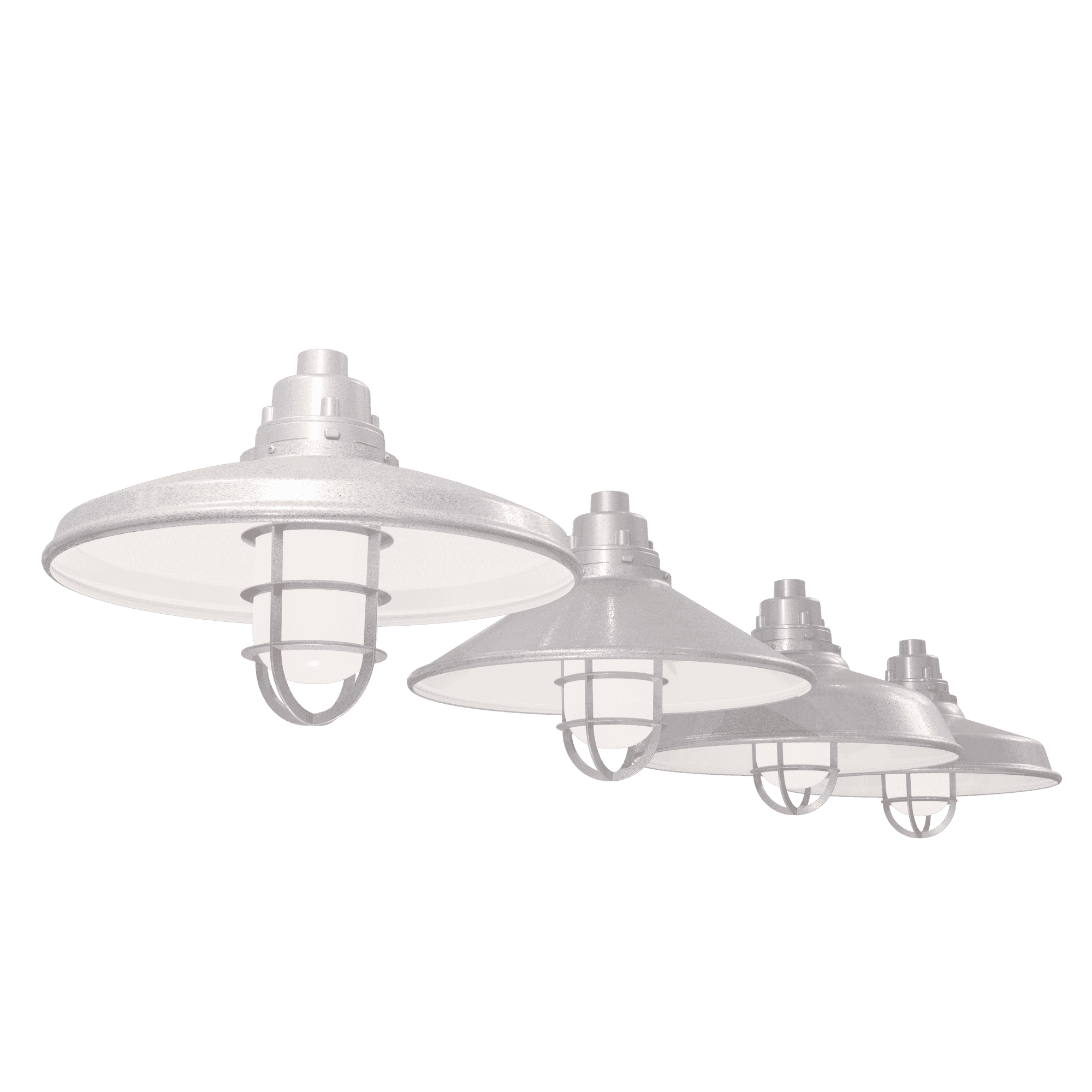

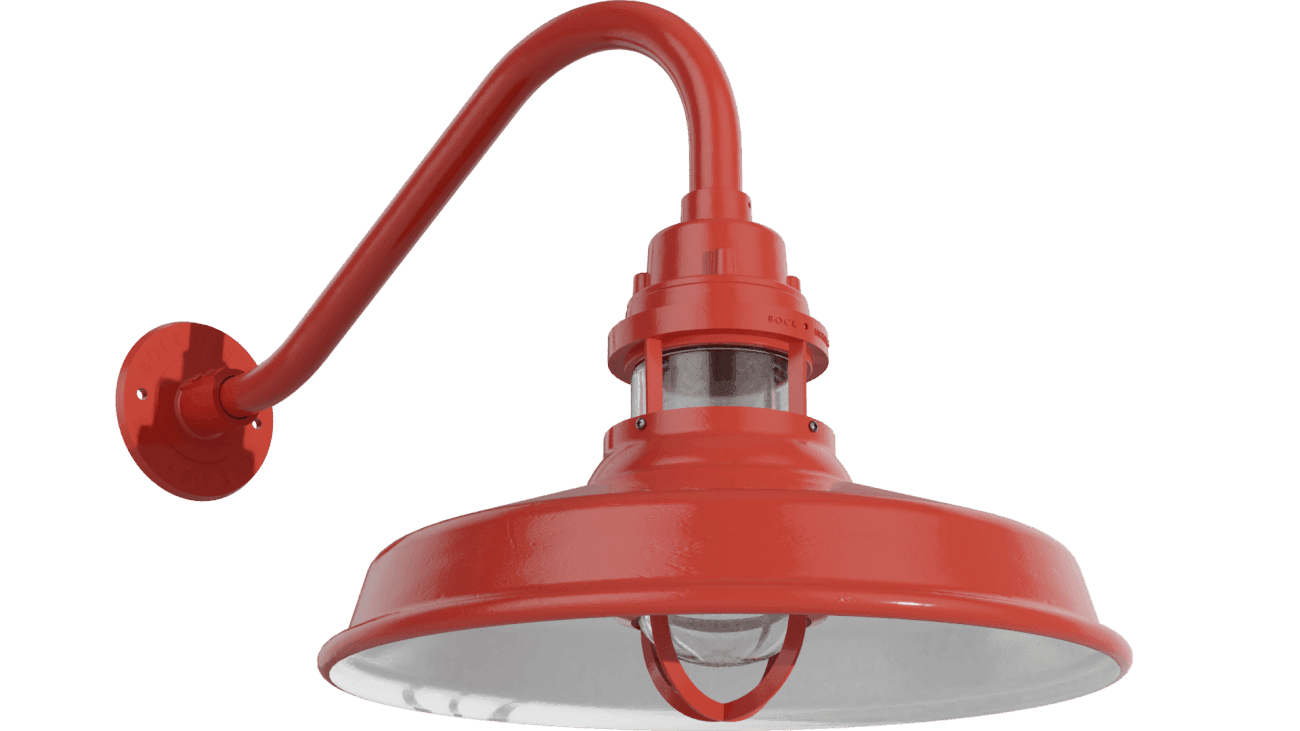

Reflector: Spun from heavy gauge aluminum with a rolled in bead.

Lamp Types:

• Incandescent: 300W, Medium base porcelain socket. Medium base standard. Mogul on request with 518 and 520 only.
• LED: Requires External Driver Enclosure.
• • LVEV, LVFV, LVXV

Mounting: Top Mounting with 3/4 NPT. For outdoor use, Teflon tape should be used around threads.
Finish: Powder Coat Finish for Outdoor use. Complete color selection found at bock.lighting/colors.
Certification: Built to UL 1598 and UL Certified for Damp and Wet Locations.

BAA/BABA: Please add either BAA or BABA to end of part number if job requires.
