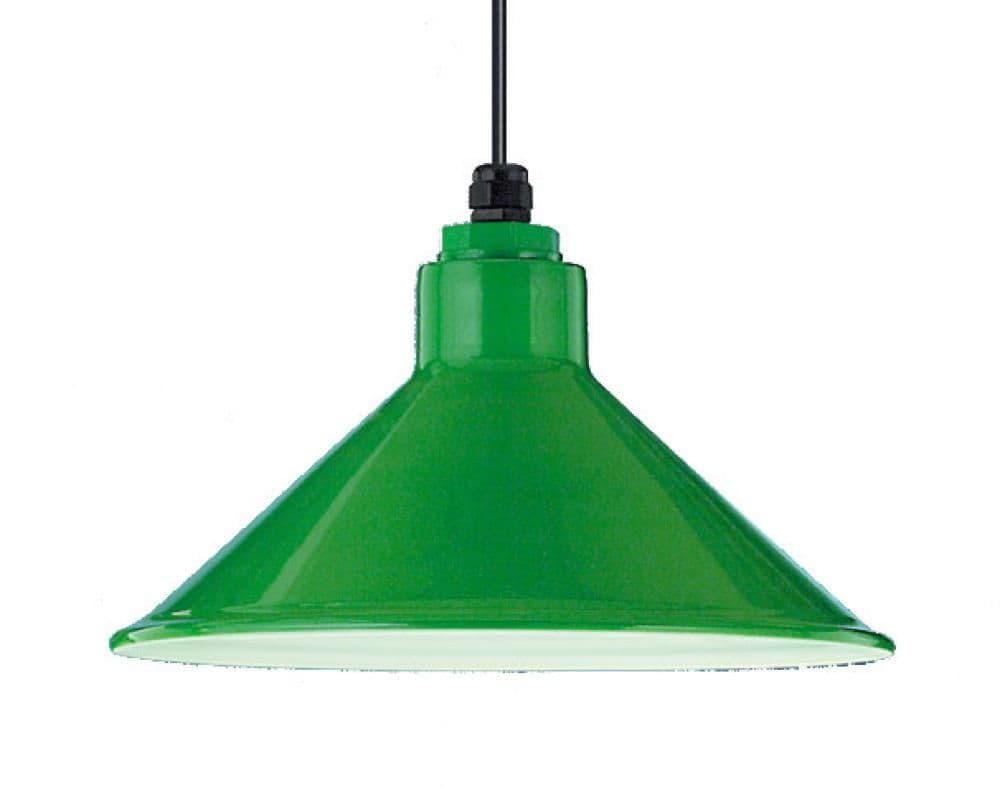

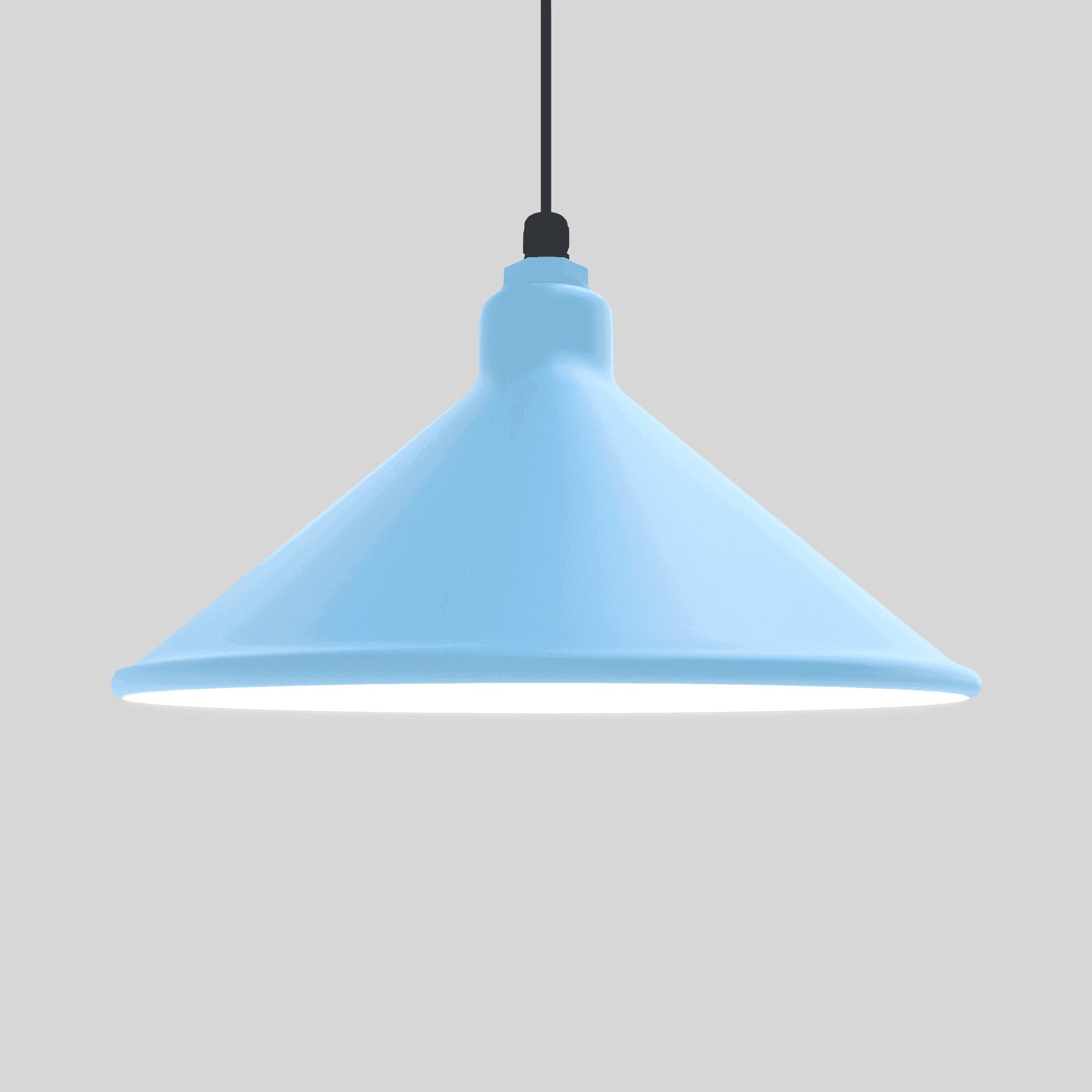

About Shallow Cone

Reflector: Spun from heavy gauge aluminum with an rolled in bead.
Lamp Types:
Incandescent: 150W max. Medium base porcelain socket.
LED: Requires External Driver Enclosure.
LED(850/1250): Cree LMH2 Module with Osram Driver
LVE01: Cree CXA COB with Osram Driver, Requires Glass Jar
              CFL: Requires External Driver Enclosure.
              HPS: Requires External Driver Enclosure.
MH: 150W Max Requires External Driver Enclosure.
Mounting: Top Mounting with 3/4 NPT. For outdoor use, Teflon tape should be used around threads.
Finish: Powder Coat Finish for Outdoor use.
Certification: Built to UL 1598 and UL Certified for Damp and Wet Locations.

SizeDiameterHeightMax Wattage
120HX13”6-1/2"100W
160HX16”8-1/2”150W
