Catalog: Decorative Lamp Types
Product: LED - LVG02

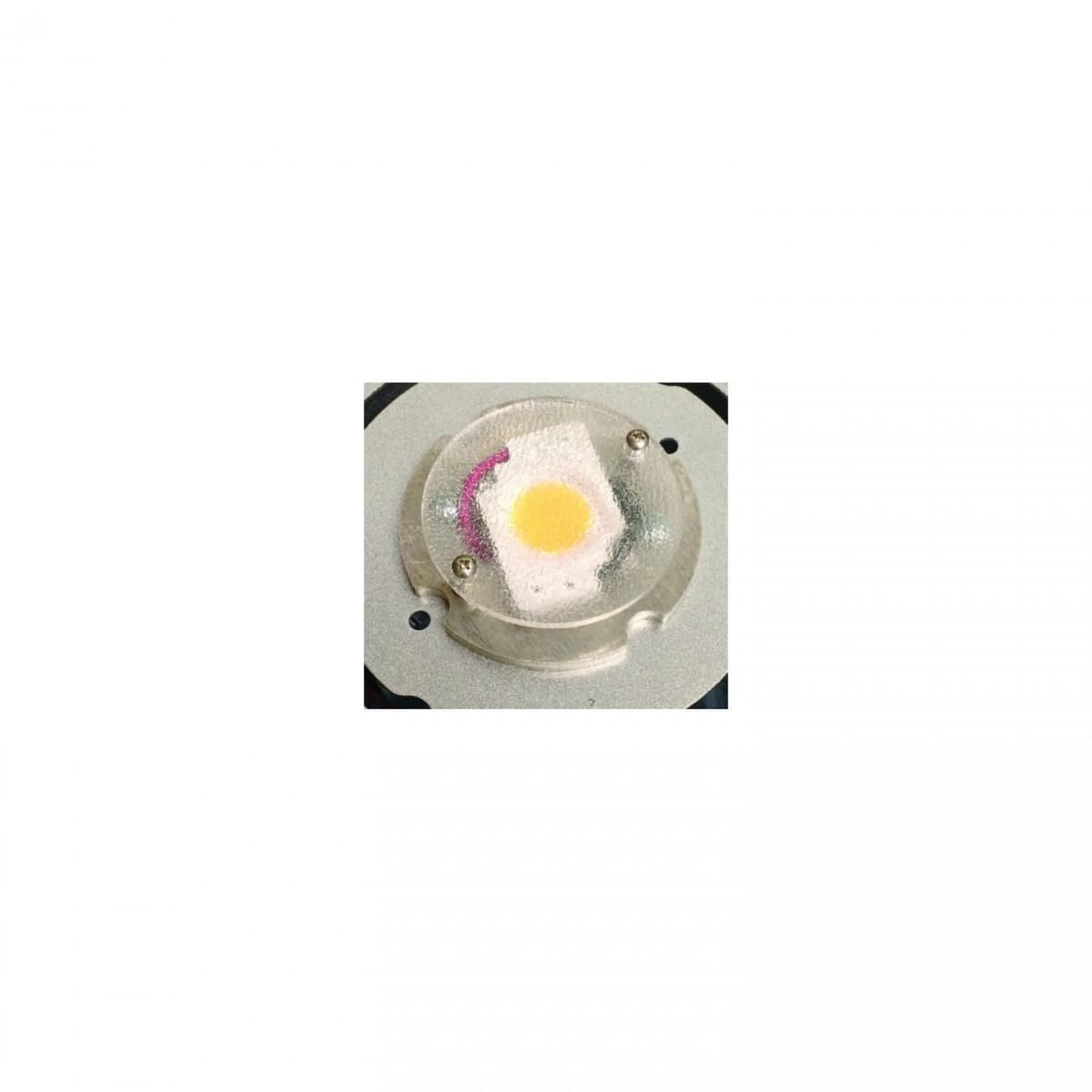

Bock’s LVG02 LED module offers is a COB (Chip-on-Board) module with a small driver that can be installed in a
4” junction box, 2-1/8” Deep. For use with globe enclosure in the Decorative Glass. Based on the LVE01 Module.

Application: Decorative Glass

Features:

LED: Cree CXA Series, 80 CRI

Lens: Flat Lens on open shades.

Lumens: 950 & 1,400  at source.

Kelvin: 27K, 30K, 35K, & 40K

Driver: ERP Driver, 120V 50/60Hz. Driver installed in junction box (3.5” Mounting Spacing, 2-1/8” Deep min).

Heat-sink: Visible on open shades.

Warranty: 5 Years Limited



Power Usage:
Numbers are conservative estimates with testing validation. Includes driver conversion loss.



27K

30K

35K

40K

9W - 200ma

950lm

950lm

1,000lm

1,000lm

13W - 300ma

1,400lm

1,400lm

1,500lm

1,500lm



Example Part Numbers:
A30112295154 / LVG02-9W-27K
