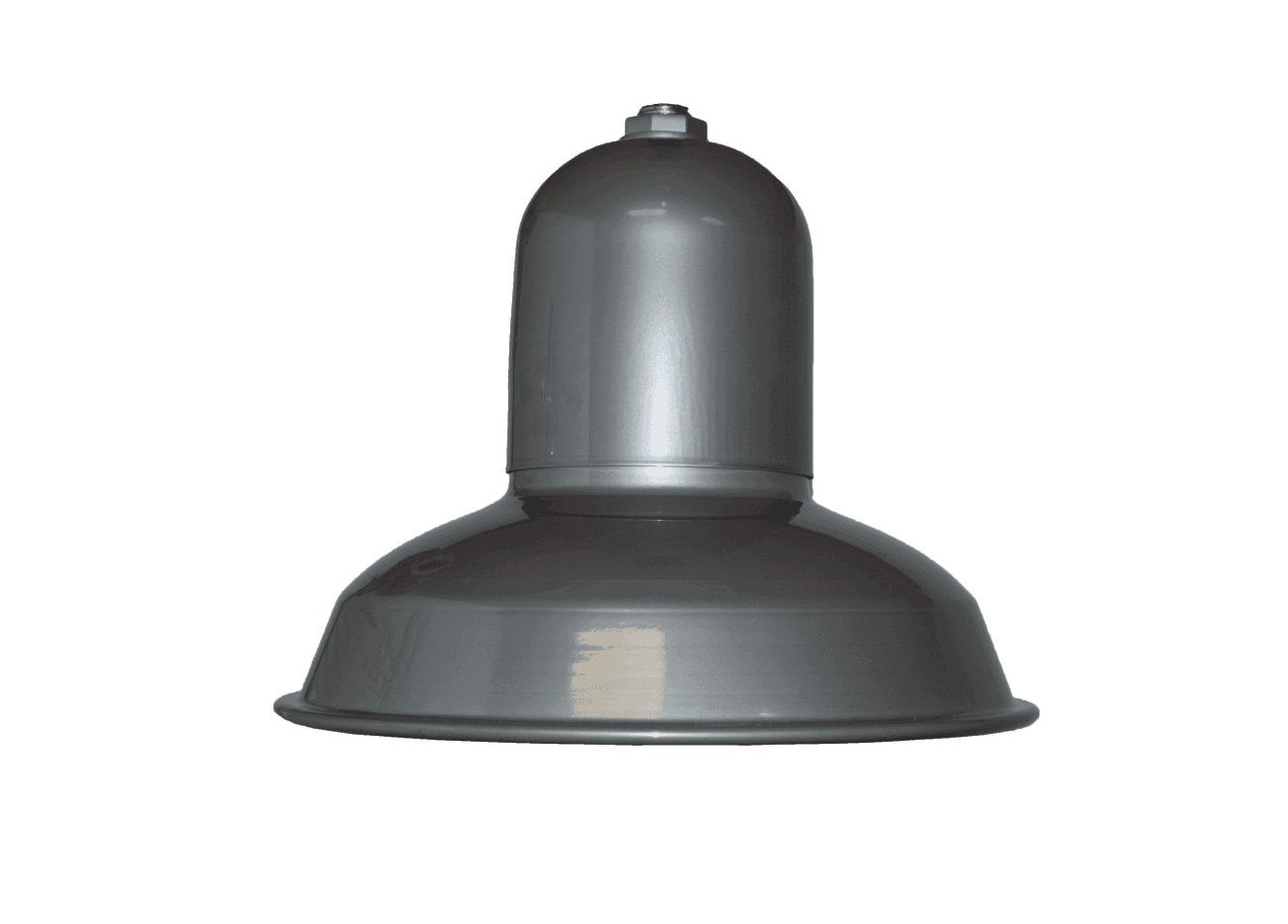

Self Ballasted Dome

Reflectors
Product Information: Self Ballasted Dome

Customize your product

Cat.#     Max Watt     Dia    Ht

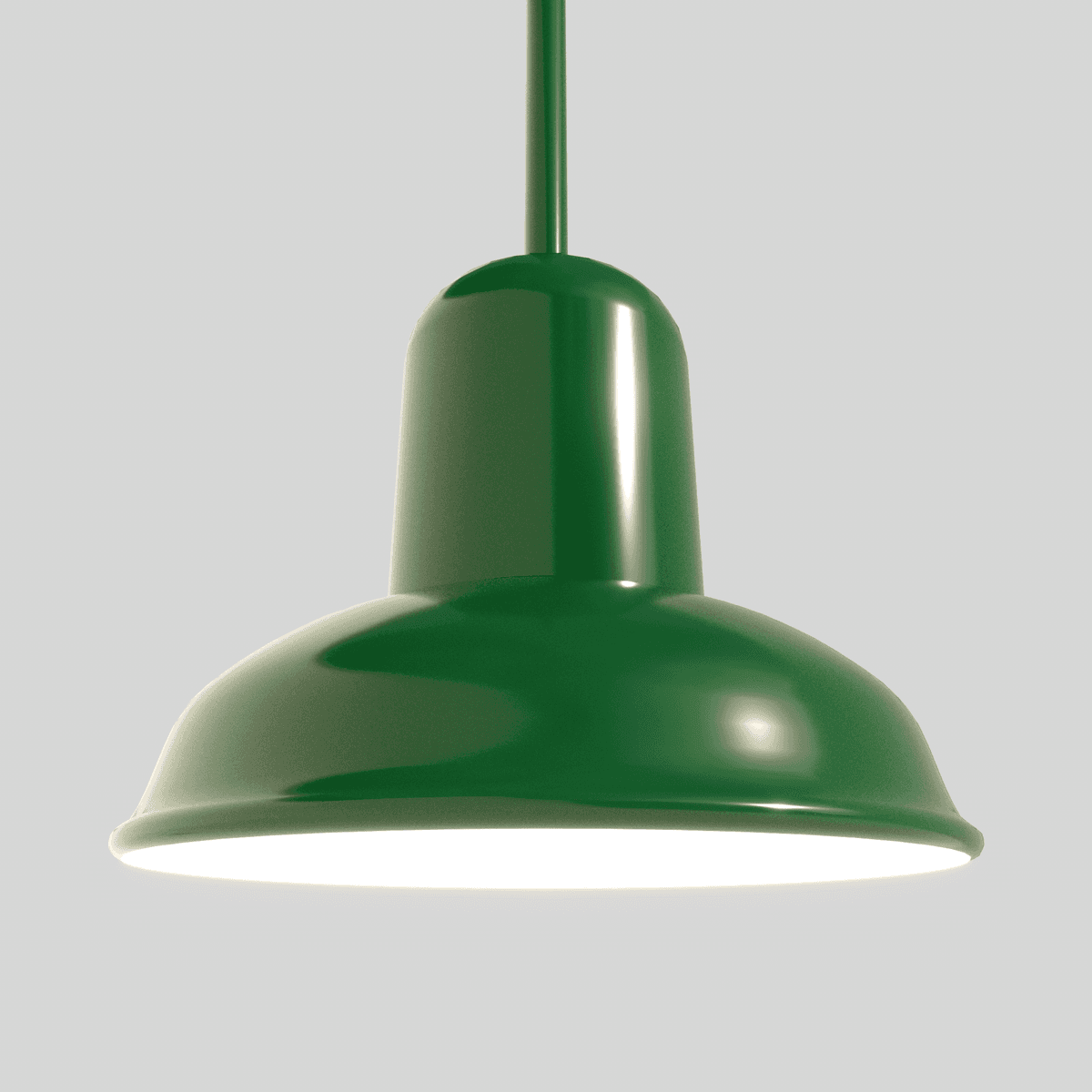

516B    175W           16”    13 “
520B    175W           20”    14”
Integrally ballasted fixtures available for metal halide, high pressure sodium or compact fluorescent lamps. See page 26 for ordering guide.

Download PDF
RLMSS - 20150708 - Self Ballasted Dome_0.pdf
Download IES
520B - 41 - 31DCG - LVE01 - 2000lm.ies
520B - 41 - 31DCG - LVE01 - 3000lm.ies
520B - 41 - LVE01 - 1800lm.ies
520B - 41 - LVE01 - 2000lm.ies
520B - 41 - LVE01 - 3000lm.ies
520B - LMH2.ies
520B-LED1250.ies
520B-MH150.IES
520B-MH175.IES
520B-MH175-42.IES
520B-MH175-42PR.IES
516B-HS50.IES
520B - 41 - 31DCG - LVE01 - 1800lm.ies
