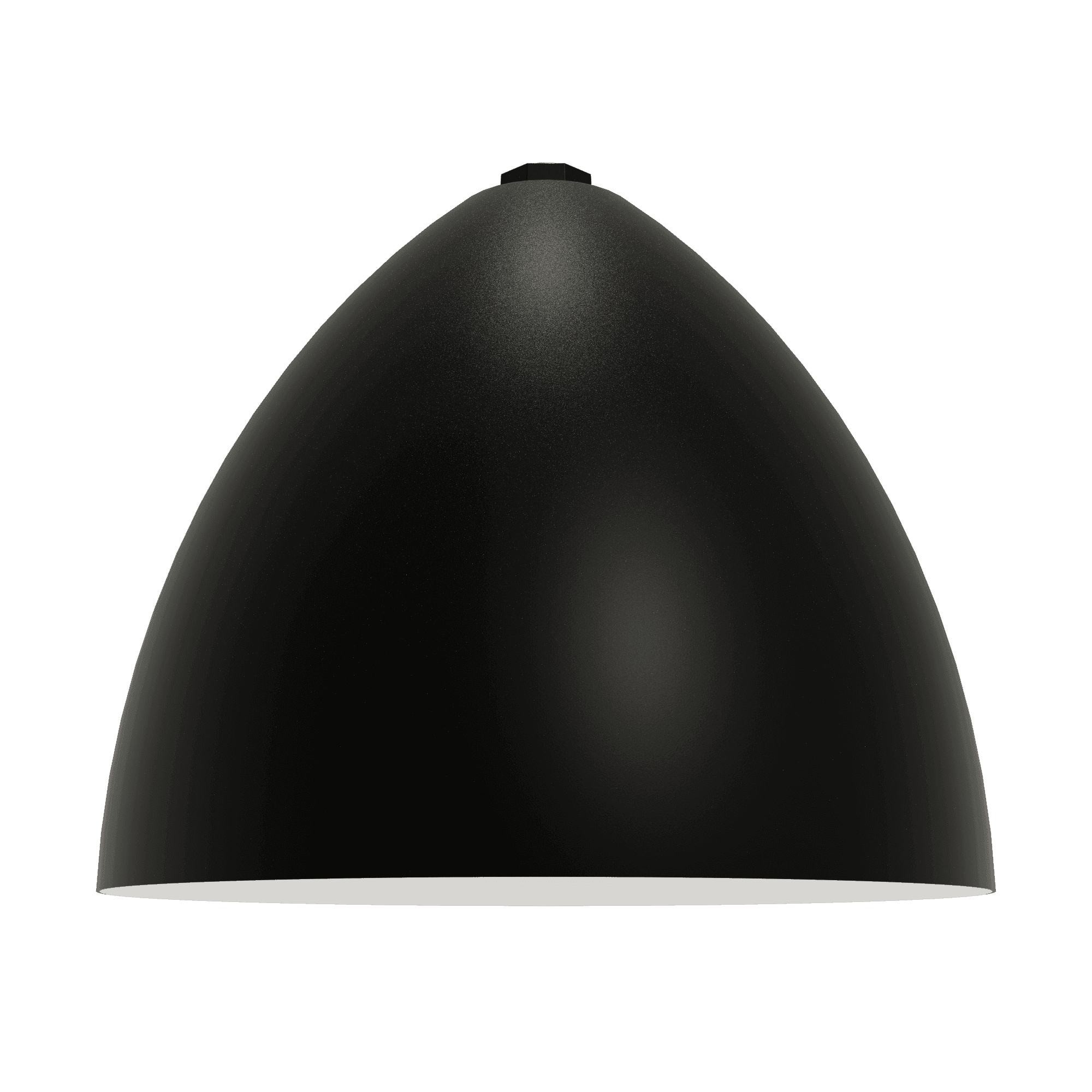

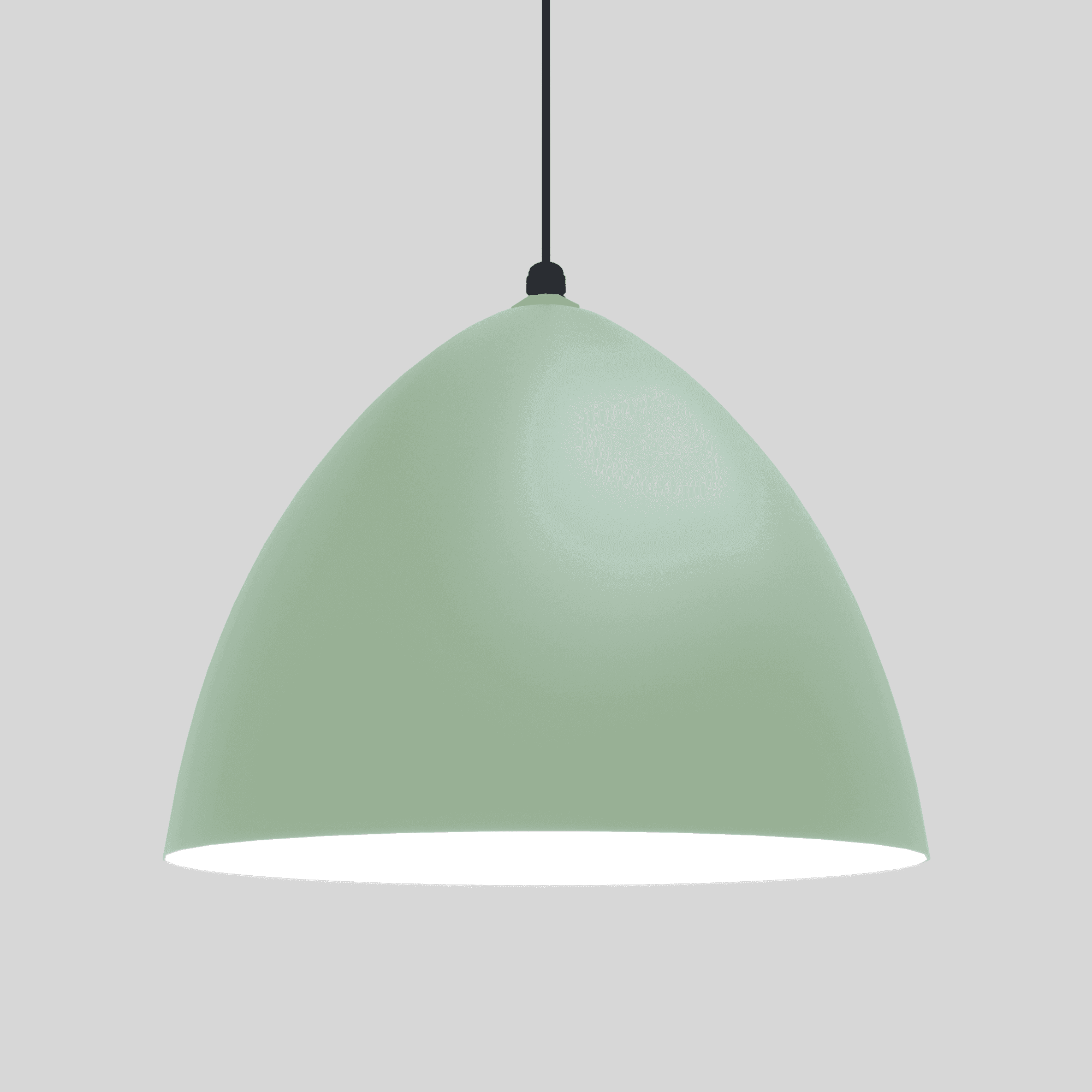

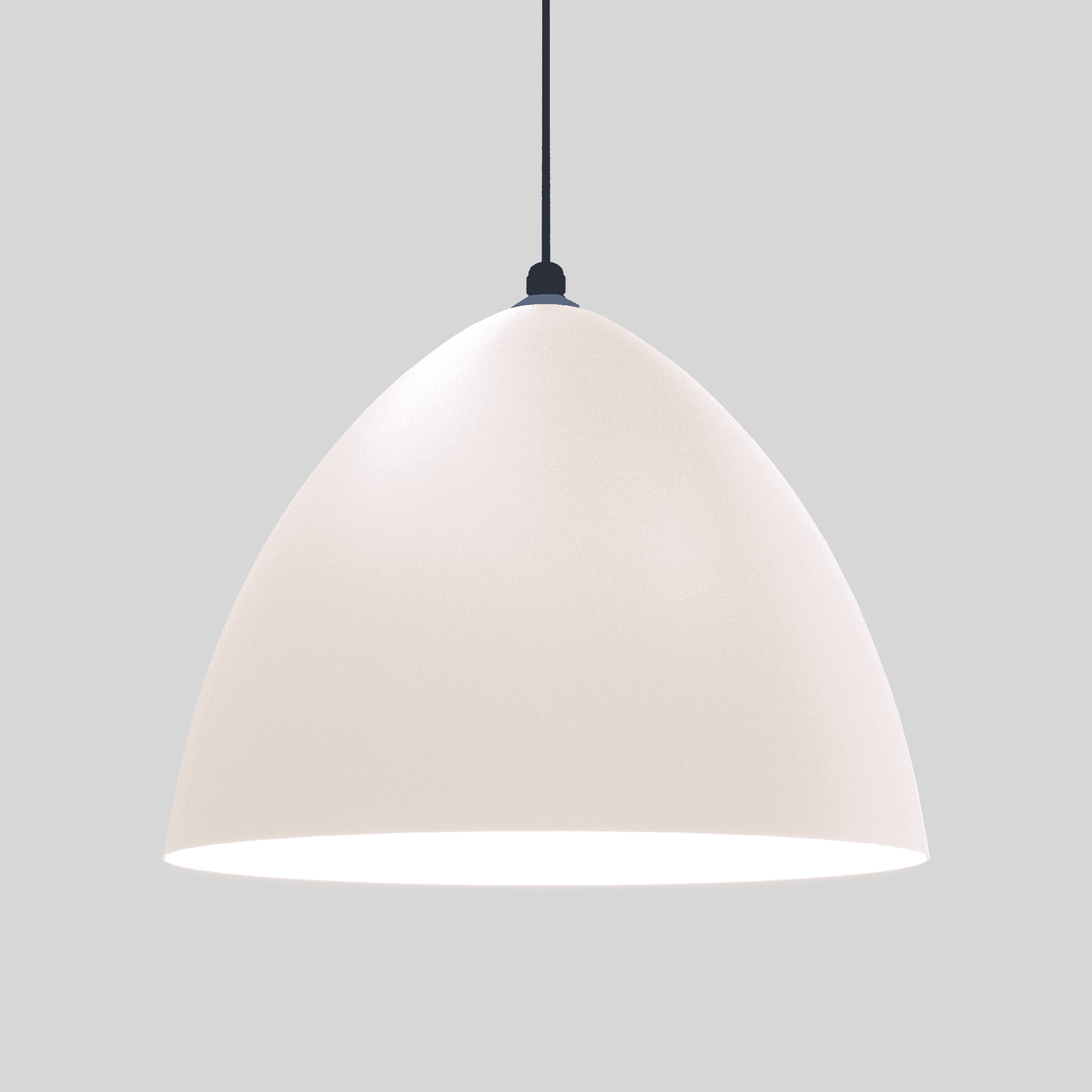

Reflector: Spun from heavy gauge aluminum.
Lamp Types: Incandescent, LED
Lens: Compatible with 41 and 42 size globes and corresponding guards.
Mounting: Top Mounting with 3/4"-NPT (standard), 1/2"-NPT available. Gooseneck, Stem and Cord mountings available. See configurator for complete offering. Outdoor use will require Teflon tape or like kind sealant to be used.
Finish: Powder Coat Finish. Complete color selection found at bock.lighting/colors.
Certification: cULus Certified for Damp and Wet Locations.
Size | Diameter | Height | Max Wattage |
AL12 | 12 | 7.5 | 100 |
AL14 | 14 | 10 | 100 |
AL16 | 16 | 14.25 | 150 |
AL18 | 18 | 18 | 200 |
Recent configurations
Built with AL
AL16-eG2-iG1 / MED5 / GN23A-G52
AL12-eG4-iG1 / GU24 / PT-GN2-G28
AL12-eG8-iG1 / LVFV1-1250-40K-1SL / 642-50-G8 / ST2-12-G8
AL12-eG0-iG1 / LBAC1-2-2500-35K -1SL-0-10V / BCW6-G0 / GNX-1039-9-6-G0
