Application: Wallpack for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities, Parking Garages
Material: Die Cast Aluminum Housing
Lamp Type: Integral LED, 120-277V or 347-480v
SM-LED17W: 3/4/5K, Type V, 2,200LM Max
LG-LED37W: 3/4/5K, Type II, III, IV, V, 5,710LM Max
LG-LED65W: 3/4/5K, Type II, III, IV, V, 10,030LM Max
LG-LED100W: 3/4/5K, Type II, III, IV, V, 15,430LM Max
LG-LED140W: 3/4/5K, Type II, III, IV, V, 21,600LM Max
Dimensions: Small: L: 18.5in, D: 11in, H: 6.75in
Large: L: 23.25in, D: 18in, H: 8.5in
Mounting: Wall mount to junction box, Mounts to Square Poles with Included Arm, or Walls with Easy-Hang Option.
Finish: Bronze, White, Grey or Black Powder Coat Finish, Polycarbonate Opal Lens
Listing: ETL listed for wet locations
WPAP

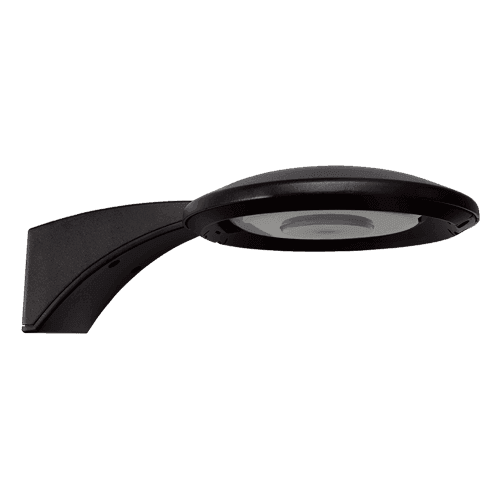

WPAP is an integral LED wallpack in die cast aluminum, small and large sizes. 17W to 140W, up to 21,600LM, Type II-V optics. Wall or square pole mount. ETL wet.
Application: Wallpack for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities, Parking Garages
Material: Die Cast Aluminum Housing
Lamp Type: Integral LED, 120-277V or 347-480v
SM-LED17W: 3/4/5K, Type V, 2,200LM Max
LG-LED37W: 3/4/5K, Type II, III, IV, V, 5,710LM Max
LG-LED65W: 3/4/5K, Type II, III, IV, V, 10,030LM Max
LG-LED100W: 3/4/5K, Type II, III, IV, V, 15,430LM Max
LG-LED140W: 3/4/5K, Type II, III, IV, V, 21,600LM Max

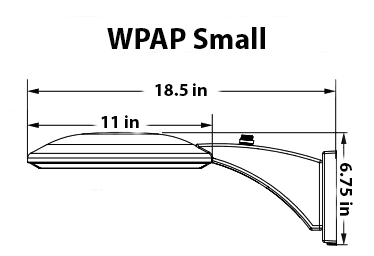

Dimensions: Small: L: 18.5in, D: 11in, H: 6.75in
Large: L: 23.25in, D: 18in, H: 8.5in
Mounting: Wall mount to junction box, Mounts to Square Poles with Included Arm, or Walls with Easy-Hang Option.
Finish: Bronze, White, Grey or Black Powder Coat Finish, Polycarbonate Opal Lens
Listing: ETL listed for wet locations
