Application: Low-glare architectural wall pack for commercial and industrial outdoor lighting — retail centers, schools, restaurants, factories
Material: Die-cast aluminum housing with low-glare lens
Lamp Type: Integral LED, 120-277V, 8,407LM Max, Field-Selectable Wattage & Kelvin, 70CRI, Forward Throw (Type I)
AWQS-72W: 15/30/50/72W, 3000/4000/5000K

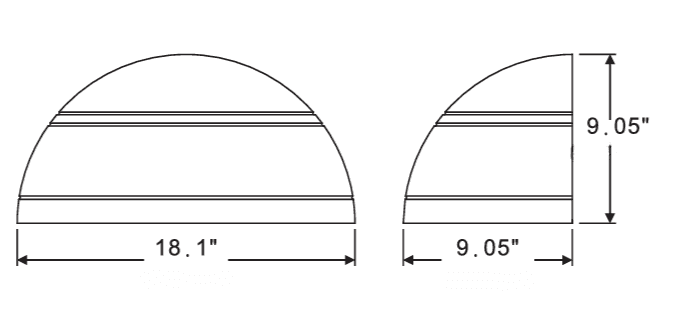

Dimensions: L: 18.1in, W: 9.05in, H: 9.05in
Mounting: Quick-mount plate
Finish: Bronze Powder Coat
Listing: cULus for Wet Locations, DLC 5.1
AWQS

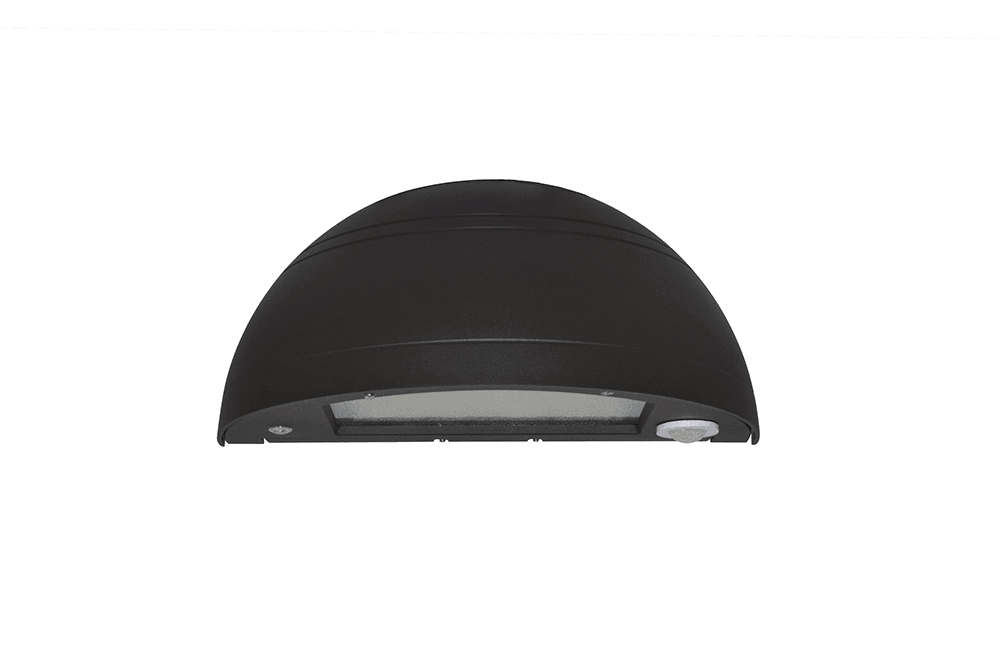

The AWQS Series low-glare architectural LED wall pack: field-selectable 15/30/50/72W and 3000/4000/5000K, up to 8,407 lumens. Die-cast aluminum, wet-location, DLC 5.1.
AWQS
From$646.50
Application: Low-glare architectural wall pack for commercial and industrial outdoor lighting — retail centers, schools, restaurants, factories
Material: Die-cast aluminum housing with low-glare lens
Lamp Type: Integral LED, 120-277V, 8,407LM Max, Field-Selectable Wattage & Kelvin, 70CRI, Forward Throw (Type I)
AWQS-72W: 15/30/50/72W, 3000/4000/5000K
Dimensions: L: 18.1in, W: 9.05in, H: 9.05in
Mounting: Quick-mount plate
Finish: Bronze Powder Coat
Listing: cULus for Wet Locations, DLC 5.1
Photos
Product Files
IES Files
No IES files available
Spec Sheets
Revit Files
No Revit files available
