ACP

Pendant
Product Information: ACP

Concept

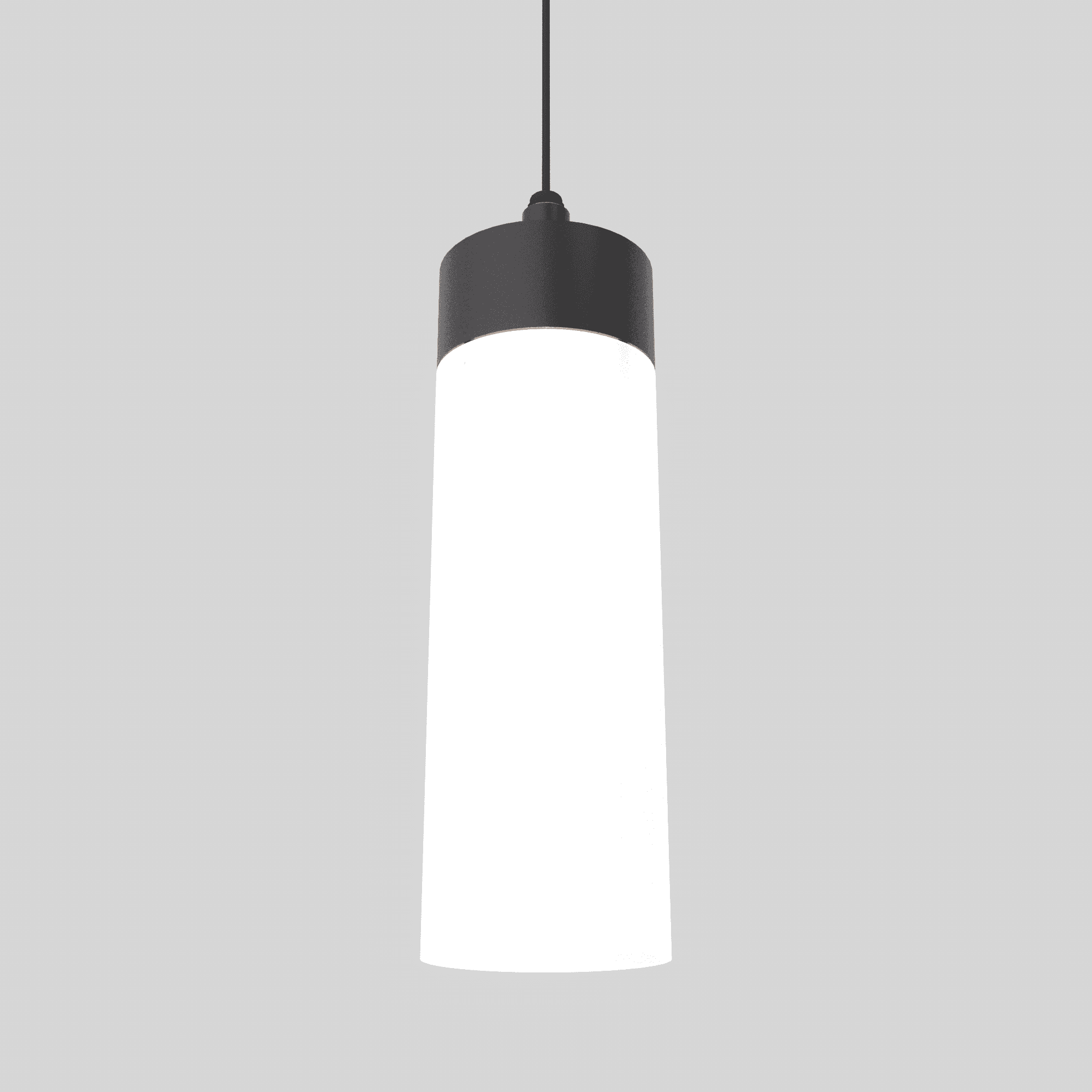

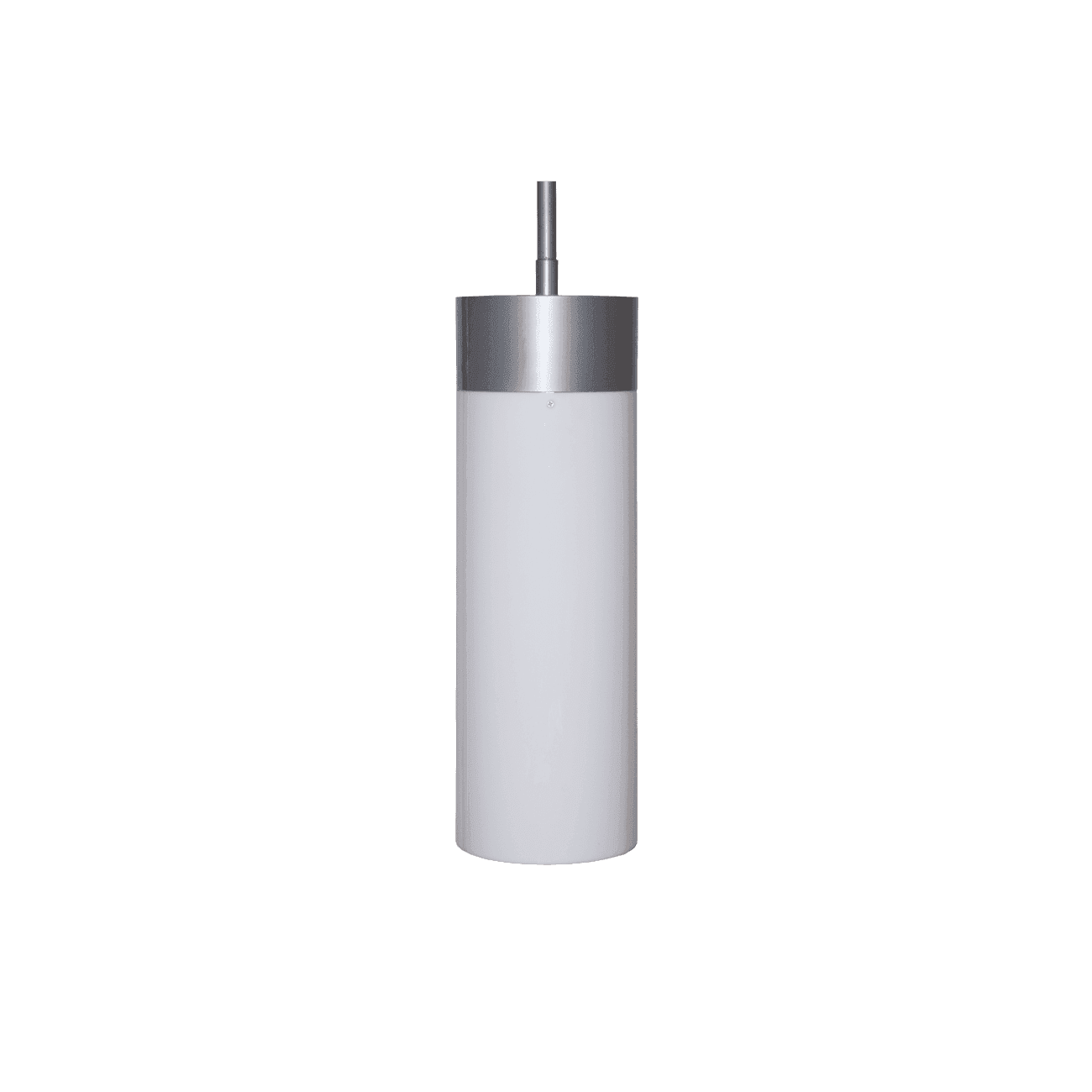

Cast Acrylic Cylinder Pendant with cylinder aluminum top.
Mounting: 1/2-NPT
Certification: cULus for Damp Locations

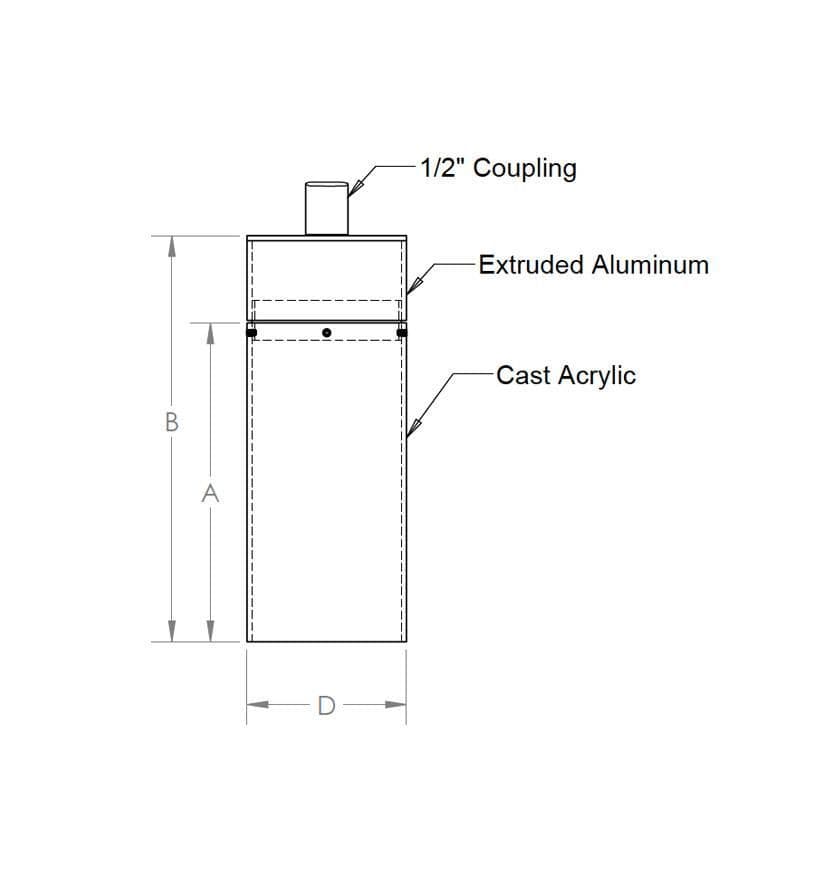

Shade
ACP800 D = 8in
    ACP820 A=20in, B=24in
    ACP816 A=16in, B=20in
    ACP812 A=12in, B=16in
    ACP808 A=8in, B=12in
ACP600 D = 6in
    ACP615 A=15in, B=18in
    ACP612 A=12in, B=15in
    ACP609 A=9in, B=12in
    ACP606 A=6in, B=9in
ACP400 D = 4in
    ACP410 A=10in, B=12in
    ACP408 A=8in, B=10in
    ACP406 A=6in, B=8in
    ACP404 A=4in, B=6in

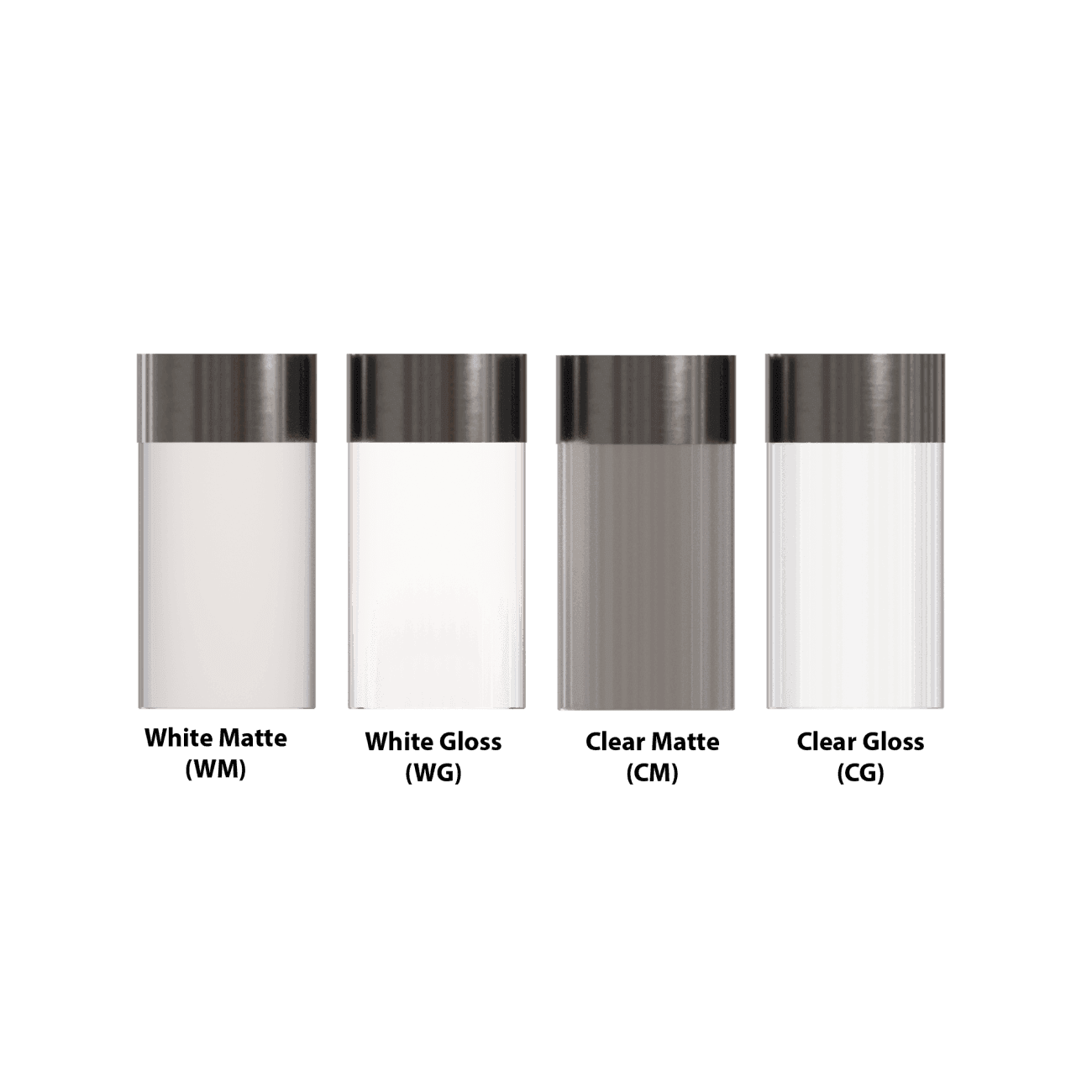

Acrylic Finish
CG Clear Gloss
WG White Gloss
CM Clear Matte
WM White Matte

Finish
G0 = Black
G1 = White
G12 = Brushed Aluminum

Lamp Type
MED = Medium Base E26, 60W Max
GU24 = GU24, 32W Max
LAC01-13W-(K) = 13W, AC LED, 120V Only, 30/40K, 1,000LM, Takes 1 Module.
LBA01-(M)-(LM)-(K) = LBA01 Module, Cree LEDs, 120-277V, 0-10V Dimming
        1 Module M=1 = LM=850(8W)/1250(11W)/2000(19W)/3000(29W)LM, K=27/30/35/40K
        2 Module M=2 = LM=850(16W)/1250(22W)/2000(38W)/3000(58W)LM, K=27/30/35/40K 8in Only
G24Q(26/32/42) = Triple-Tube 4-Pin Fluorescent, Universal Voltage

Mounting / Driver
643(BK/WH) 10ft of cord with canopy.
640-2 Stem Canopy for 1/2-NPT ST2-(6/12/18/24/36/48) Stem 1/2-NPT
BCC6C(BK/WH) = 10ft of cord with Driver canopy.
BCC6S-2 = Driver for stems. ST2-(6/12/18/24/36/48) Stem 1/2-NPT
642-2 = Aligner + Canopy
