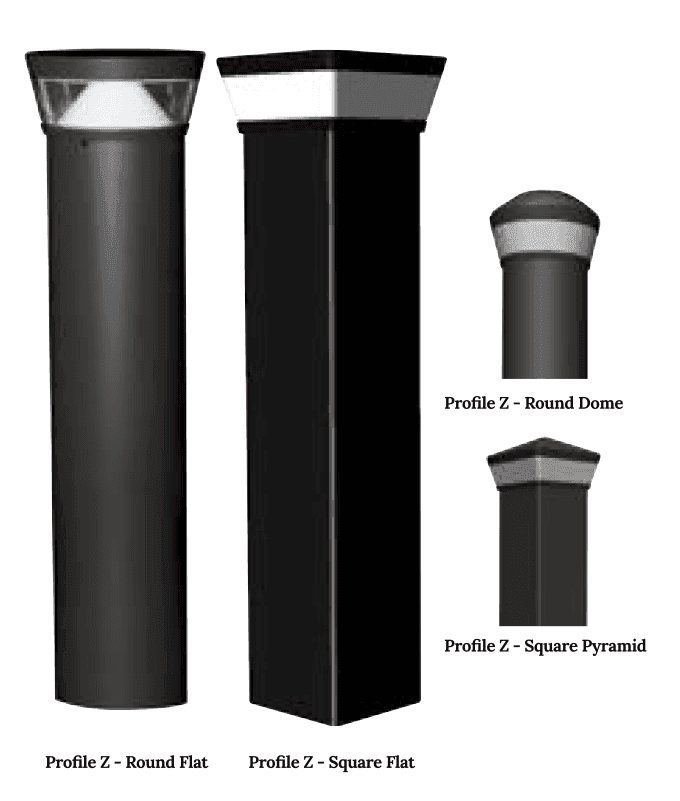

PZ - Rond Plat/Carré Plat/Pyramide Carrée/Dôme Rond

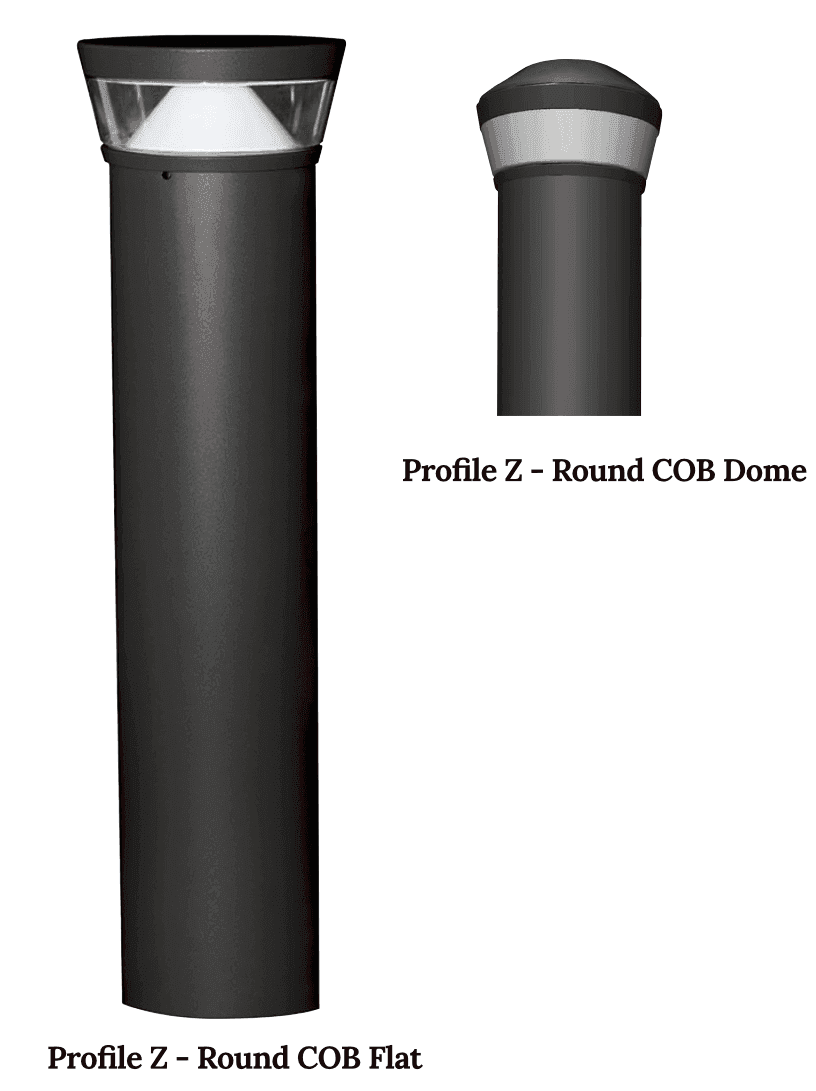

PZ - Dôme Rond COB /Rond Plat COB
Application : Sentiers, Stationnements, Entrées, Parcs
Matériau : Boîtier en Aluminium Extrudé avec Base de Montage Affleurante, Lentille en Polycarbonate Transparent ou Opale
Type de Lampe : LED Type V, 120-277V ou 347V, Gradation 0-10V jusqu'à 10%, Équivalent 70W HID
PZ - RF (Rond Plat) LED16/23/34W : 3/4K, 5000LM Max
PZ - SF(Carré Plat) LED16/23/34W : 3/4K, 5000LM Max
PZ - SP(Pyramide Carrée) LED16/23/34W : 3/4K, 5000LM Max
PZ - RD(Dôme Rond) LED16/23/34W : 3/4K, 5000LM Max
PZ- RDC (Dôme Rond COB) LED20W : 41K, 2 290LM Max
PZ- RFC (Rond Plat COB) LED20W : 41K, 2 290LM Max
Dimensions : PZ - RF/SF (Rond Plat/Carré Plat) : L : 9-1/4'' po x P : 7'' po x H : 35-3/4'' po
PZ-SP/RD (Pyramide Carrée/Dôme Rond) L : 9-1/4'' po x P : 7'' po x H : 38-1/8'' po
PZ- RDC (Dôme Rond COB) : L : 9-1/4'' po x P : 7'' po x H : 38-1/8'' po
PZ-RFC:(Rond Plat COB) L : 9-1/4'' po x P : 7'' po x H : 35-3/4'' po
Montage : 3 x 8po Boulons d'Ancrage avec Équerre
Fini : Revêtement en Poudre Bronze ou Noir
Certification : Certifié ETL pour Emplacements Humides
