WPKY Series

Application: Wallpack for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities
Material:  Die Cast Aluminum Housing, Polycarbonate Opal Lens
Lamp Type: Integral LED, 120-277V,  3/4/5K, 80CRI
                       WPKY Mini: LED22W: 3/4/5K, 3,000LM Max, Types: III, V, NB
                                             LED37W: 3/4/5K, 5,000LM Max, Types: III, V, NB
                                             LED56W: 3/4/5K, 7,500LM Max, Optimized Types: III, V
                      WPKY Small: LED65W: 3/4/5K, 6,800LM Max, Types: I,II,III,IV,V, NB
                                               LED81W: 3/4/5K, 10,500LM Max, Types: I,II,III,IV,V, NB
                                               LED112W: 3/4/5K, 15,300LM Max, Types: I,II,III,IV,V, NB
                      WPKY Large: LED334W: 3/4/5K, 45,000LM Max, Types: I,II,III,IV,V, NB
                                               LED450W:3/4/5K, 68,000LM Max, Types: I,II,III,IV,V, NB
                                               LED512W:3/4/5K, 69,000LM Max, Types: III,IV,V

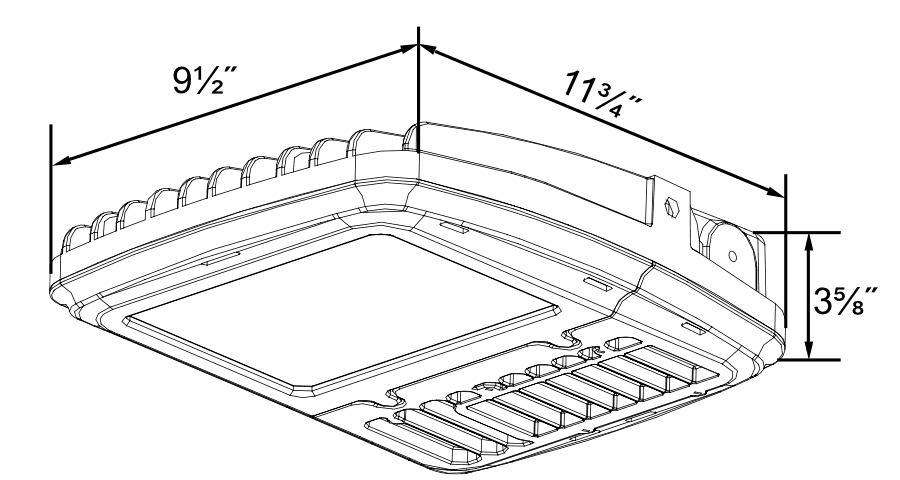

Dimensions: WPKY Mini: L: 11.75in, W: 9.5in, H: 3.75in

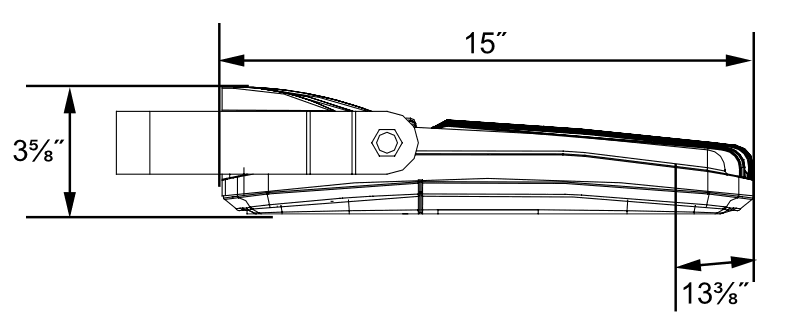

                        WPKY Small: L: 15in, W: 13.5in, H:3.75in

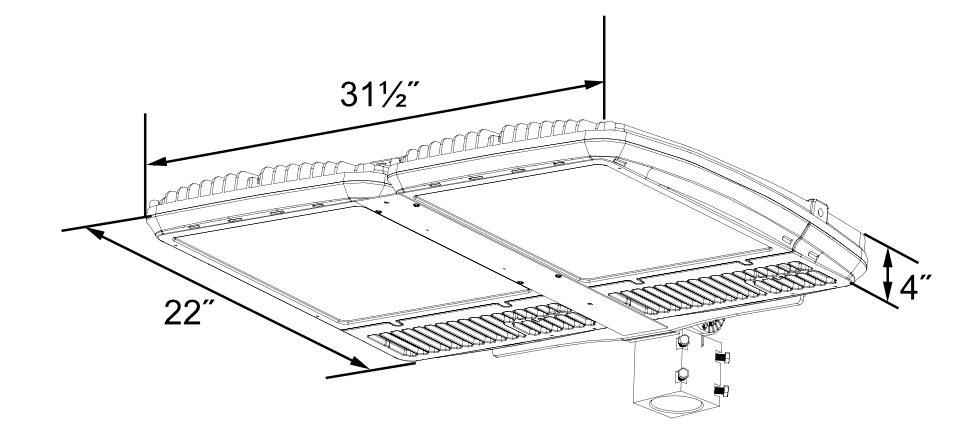

                        WPKY Large: L: 22in, W: 15.75in, H: 4in
Mounting: Surface Mount to 4in junction box
Finish: Powder Coated Architectural Bronze Finish
Listing: ETL Listed for wet locations
