Application: Outdoor, industrial and walk way general lighting.
Material: Heavy duty die-cast aluminum housing.
Lamp Type: Integral LED, 120-277V, Wattage, Field Selectable Kelvin, 80CRI
LED60W: 8,052LM Max, 4/5K
LED80W: 11,331LM Max, 4/5K
LED100W: 13,965LM Max, 4/5K
LED120W: 15,699LM Max, 4/5K
Dimensions: L: 10.1 in, W: 5.5in, H: 13.7in
Mounting: Wall mounting
Finish: Bronze Powder Coat
Listing: cULus for Wet Locations

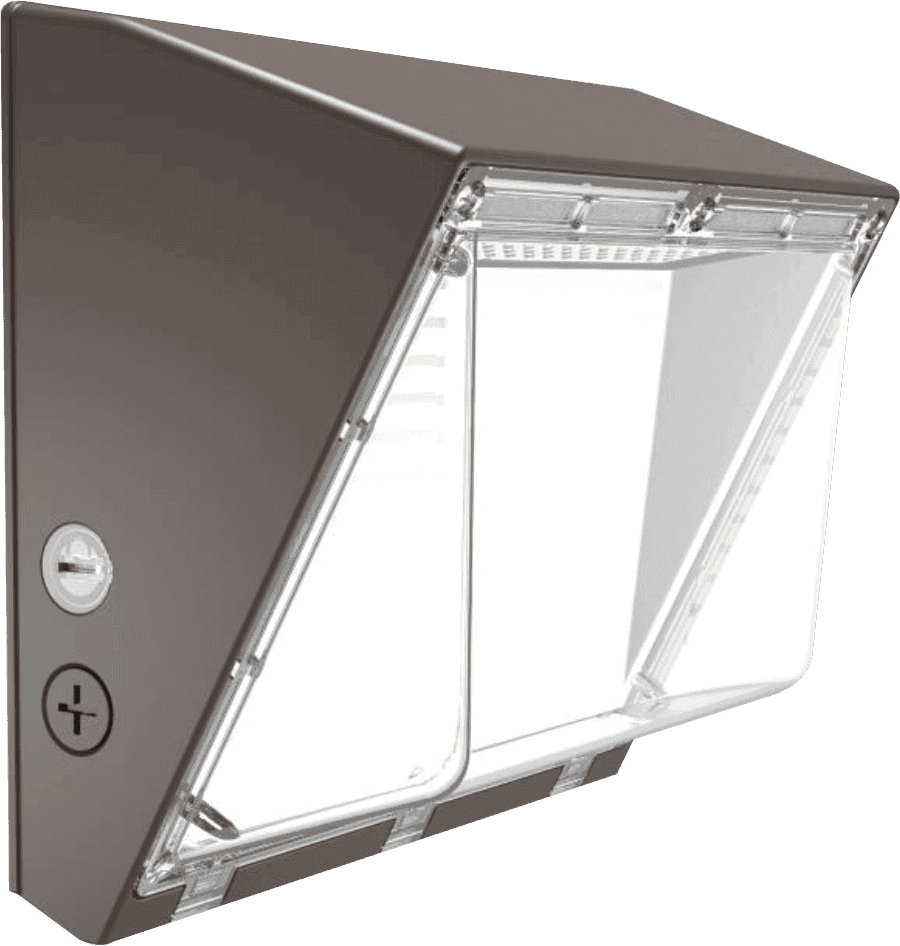

WLC-SERIES
Outdoor, industrial and walk way general lighting.
Application: Outdoor, industrial and walk way general lighting.
Material: Heavy duty die-cast aluminum housing.
Lamp Type: Integral LED, 120-277V, Wattage, Field Selectable Kelvin, 80CRI
LED60W: 8,052LM Max, 4/5K
LED80W: 11,331LM Max, 4/5K
LED100W: 13,965LM Max, 4/5K
LED120W: 15,699LM Max, 4/5K
Dimensions: L: 10.1 in, W: 5.5in, H: 13.7in
Mounting: Wall mounting
Finish: Bronze Powder Coat
Listing: cULus for Wet Locations
