Application: Wallpack for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities
Material: Die cast aluminum body, Heat and impact resistant borosilicate glass
Lamp Type: Integral LED, 120-277V, Field Selectable Wattage & Kelvin, 80CRI
LED46W: 30/42/46W, 3/4/5K, 6520LM Max
LED71W: 41/61/71W, 3/4/5K, 9886LM Max
LED100W: 62/92/100W, 3/4/5K, 14075LM Max
Dimensions: 13.11"in x 9.72"in x 4.57"in
Mounting: Surface Mount to 4in junction box
Finish: Bronze Powder Coat
Listing: cULus Listed for wet locations

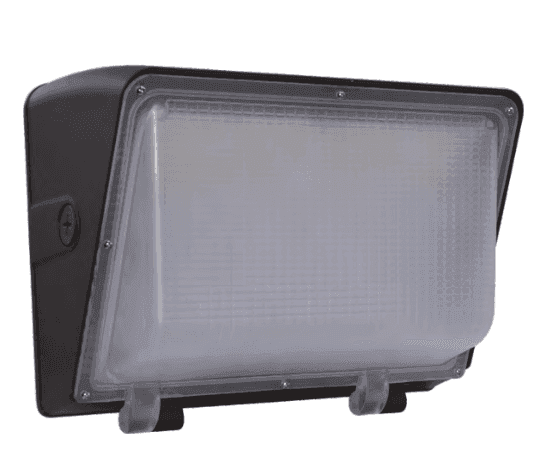

WL-M
Wallpack for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities
Application: Wallpack for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities
Material: Die cast aluminum body, Heat and impact resistant borosilicate glass
Lamp Type: Integral LED, 120-277V, Field Selectable Wattage & Kelvin, 80CRI
LED46W: 30/42/46W, 3/4/5K, 6520LM Max
LED71W: 41/61/71W, 3/4/5K, 9886LM Max
LED100W: 62/92/100W, 3/4/5K, 14075LM Max
Dimensions: 13.11"in x 9.72"in x 4.57"in
Mounting: Surface Mount to 4in junction box
Finish: Bronze Powder Coat
Listing: cULus Listed for wet locations
