Catalog: Wall Mount
Product: WFD

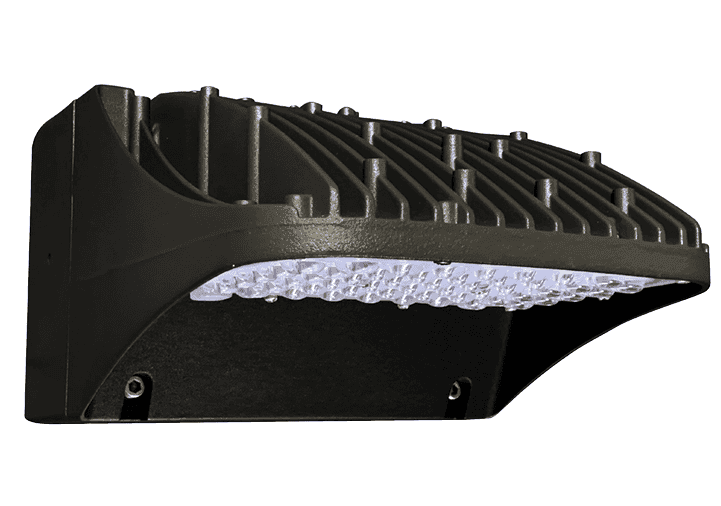

WFDSM
          Application: Wall Mounted System for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities
          Material: Die Cast Aluminum Housing with Full Cutoff Front Frame, Textured Bronze Powder Coat Finish, Clear One-Piece Molded Type IV Polycarbonate Lens

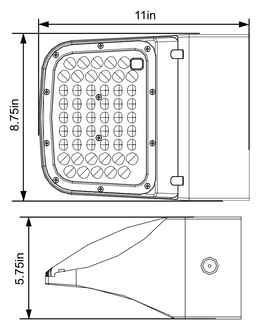

          Dimensions: W: 8.75in, L: 11in, H: 5.75in
          Mounting: Mount Directly Over 4in Recessed Electrical Box, Includes Easy-Hang "Two Hands Free" Bracket, Mounting Heights of 12 to 25 feet
          Lamp Type: LED-Array-25/42/84W, 120-277V, 0-10V Dimming down to 10%
          Listing: CSA Listed for Wet Locations, IP66 Sealed LED Compartment

WFDLG
          Application: Wall Mounted System for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities
          Material: Die Cast Aluminum Housing with Full Cutoff Wall Mount, Textured Bronze Powder Coat Finish, Clear One-Piece Molded Type IV Polycarbonate Lens

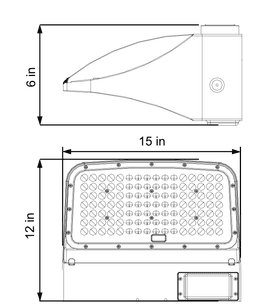

          Dimensions: W: 15in, L: 12in, H: 6in
          Mounting: Mount Directly Over a 4in Recessed Outlet Box, Includes Easy Hang Bracket, Mounting Heights of 18 to 35 ft
          Lamp Type: LED-Array-93/131/188W, 120-277V or 347-480V, 0-10V Dimming down to 10%
          Listing: CSA Listed for Wet Locations, IP66 Sealed LED Compartment
