PZ - Round Flat/Square Flat/Square Pyramid/Round Dome
PZ - Round Dome COB /Round Flat COB
Application: Pathways, Parking Lots, Entrance Ways, Parks
Material: Extruded Aluminum Housing with Flush Mounting Base, Clear or Opal Polycarbonate Lens
Lamp Type: LED Type V, 120-277V or 347V, 0-10V Dimming down to 10%, 70W HID Equivalent

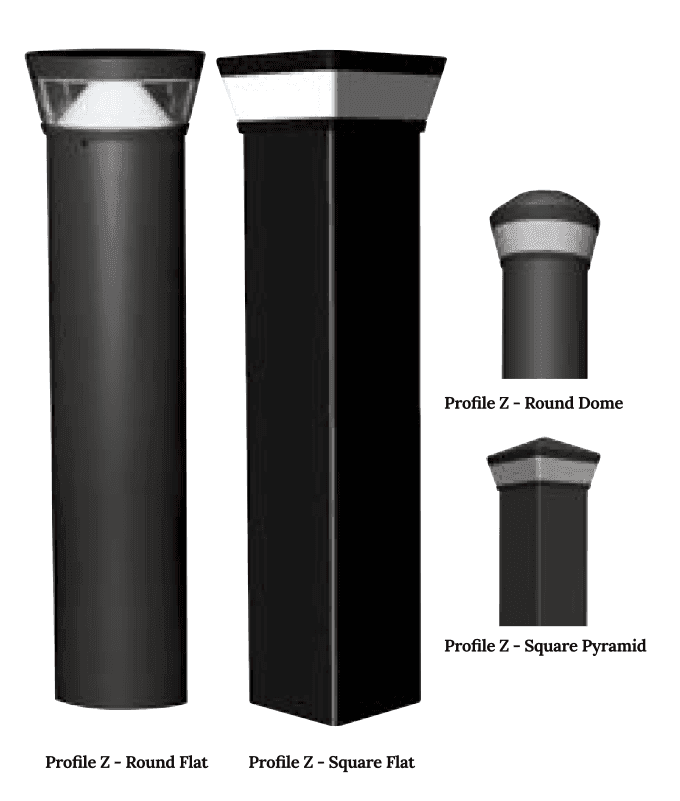

PZ - RF (Round Flat) LED16/23/34W: 3/4K, 5000LM Max
PZ - SF(Square Flat) LED16/23/34W: 3/4K, 5000LM Max
PZ - SP(Square Pyramid) LED16/23/34W: 3/4K, 5000LM Max
PZ - RD(Round Dome) LED16/23/34W: 3/4K, 5000LM Max

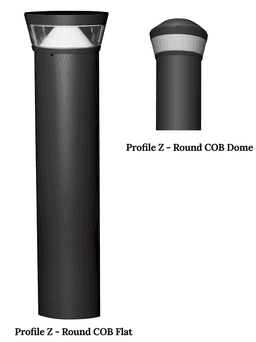

PZ- RDC (Round Dome COB) LED20W: 41K, 2,290LM Max
PZ- RFC (Round Flat COB) LED20W: 41K, 2,290LM Max

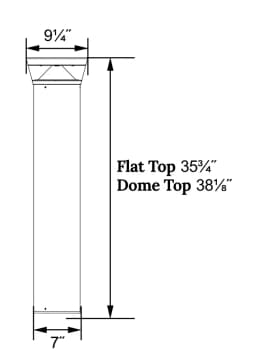

Dimensions: PZ - RF/SF (Round Flat/Square Flat): W: 9-1/4'' in x D: 7'' in x H: 35-3/4'' in
PZ-SP/RD (Square Pyramid/Round Dome) W: 9-1/4'' in x D: 7'' in x H: 38-1/8'' in
PZ- RDC (Round Dome COB): W: 9-1/4'' in x D: 7'' in x H: 38-1/8'' in
PZ-RFC:(Round Flat COB) W: 9-1/4'' in x D: 7'' in x H: 35-3/4'' in
Mounting: 3 x 8in Anchor Bolts with Bracket
Finish: Bronze or Black Powder Coat
Listing: ETL Listed for Wet Locations
