Gooseneck Brackets made of 3/4" schedule 40 aluminum tubing threaded 3/4-14 N.P.T. on fixture end. These brackets are designed for recessed box or surface outlet box mounting. The bracket end slips into cast box cover plate (wall end is unthreaded). The pipe may be cut down, in the field, to shorten bracket length. RLMs supplied with these brackets are Underwriters Laboratories Inc.® Listed for Wet Locations' provided they are installed in accordance with local and national codes. If installed outdoors use a thread sealant on fixture end threads to prevent water entry.

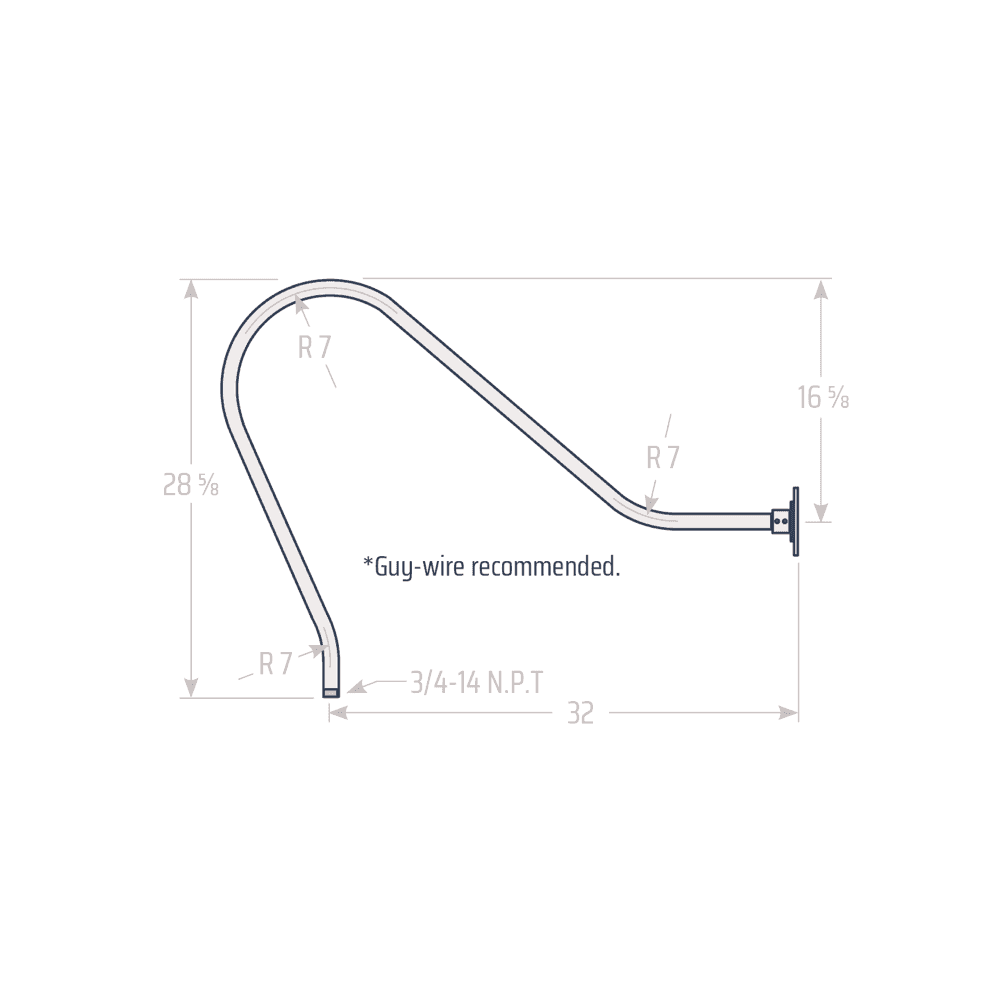

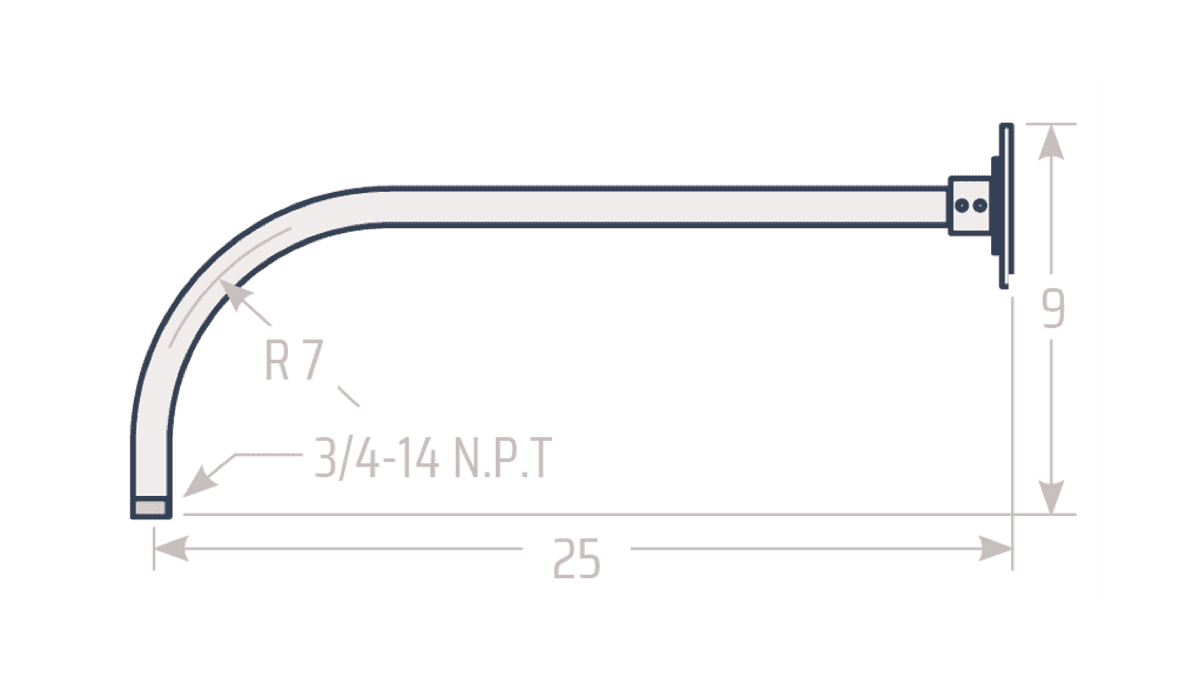

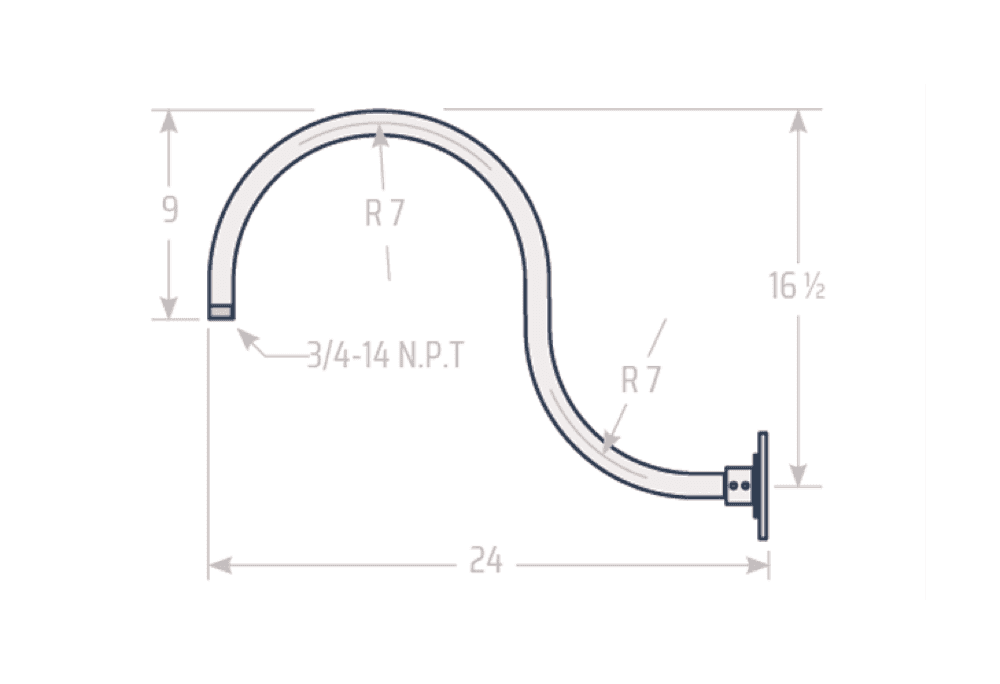

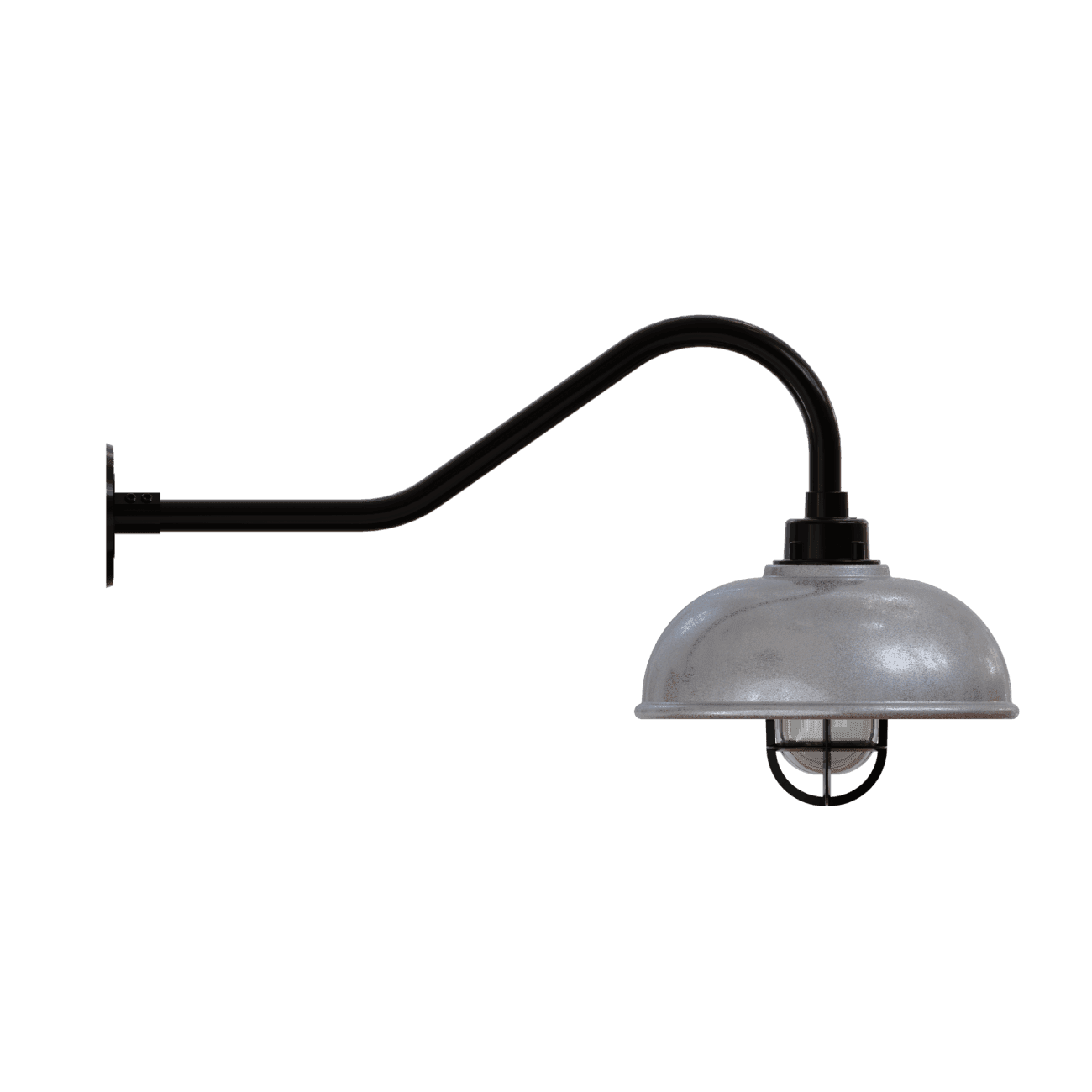

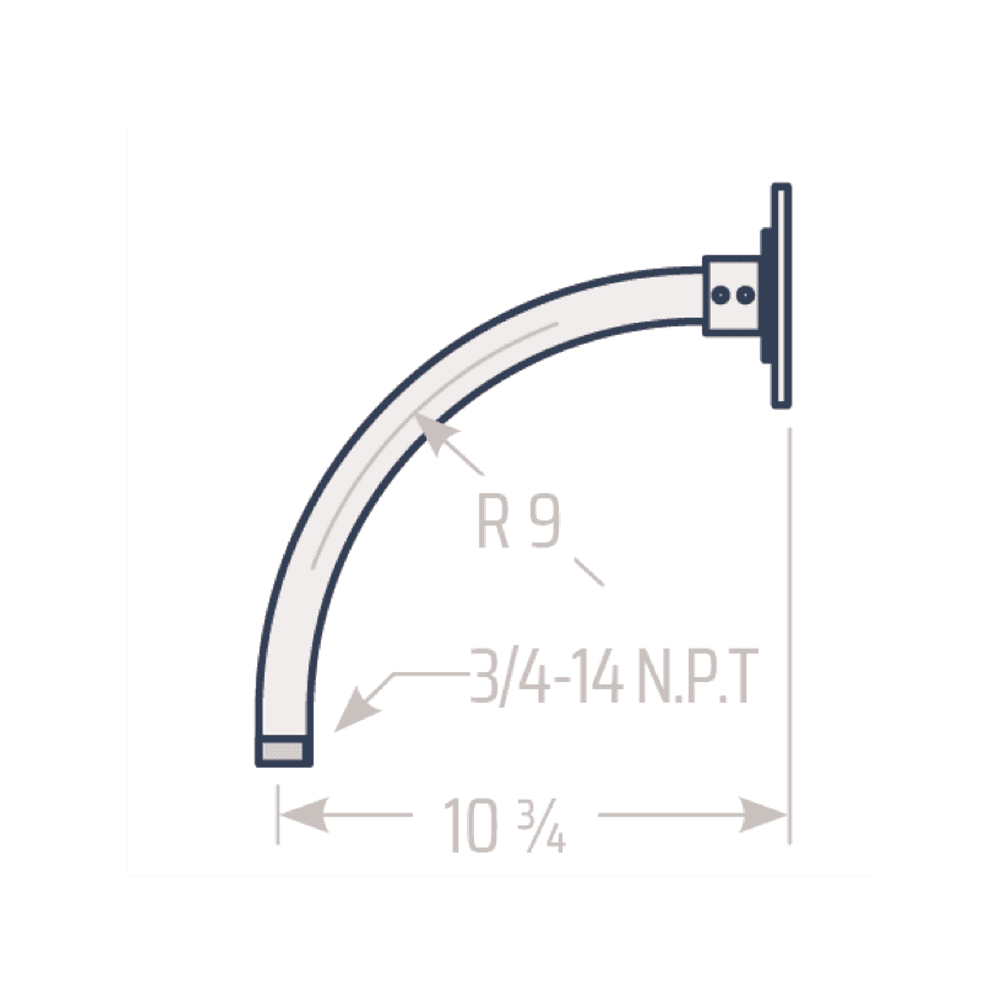

Gooseneck Top - Top Mounted
Top mounted gooseneck bracket of 3/4 in. schedule 40 aluminum tubing, 3/4-14 NPT fixture end, for recessed or surface outlet boxes. Can be cut in the field.
Gooseneck Top - Top Mounted
Gooseneck Brackets made of 3/4" schedule 40 aluminum tubing threaded 3/4-14 N.P.T. on fixture end. These brackets are designed for recessed box or surface outlet box mounting. The bracket end slips into cast box cover plate (wall end is unthreaded). The pipe may be cut down, in the field, to shorten bracket length. RLMs supplied with these brackets are Underwriters Laboratories Inc.® Listed for Wet Locations' provided they are installed in accordance with local and national codes. If installed outdoors use a thread sealant on fixture end threads to prevent water entry.
Photos
Product Files
IES Files
No IES files available
Spec Sheets
BIM filesBeta
Revit, SketchUp and IFC files for each component, generated from its 3D model. For a complete fixture, configure it and download it from your build.
Beta feature: please check the model before relying on it in a project.
