Application: Canopy light for parking garages and covered areas.Â
Material: Heavy duty die-cast aluminum housing.Â
Lamp Type: Integral LED, 120-277V, Field Selectable Wattage & Kelvin, 70CRIÂ
          SM / LED43W: 14/26/38/43W, 30/40/50K, 5,574LM Max
          MD / LED60W: 18/35/52/60W, 30/40/50K, 7,707LM MaxÂ
          LG / LED83W:  26/49/73/83W, 30/40/50K, 10,815LM Max

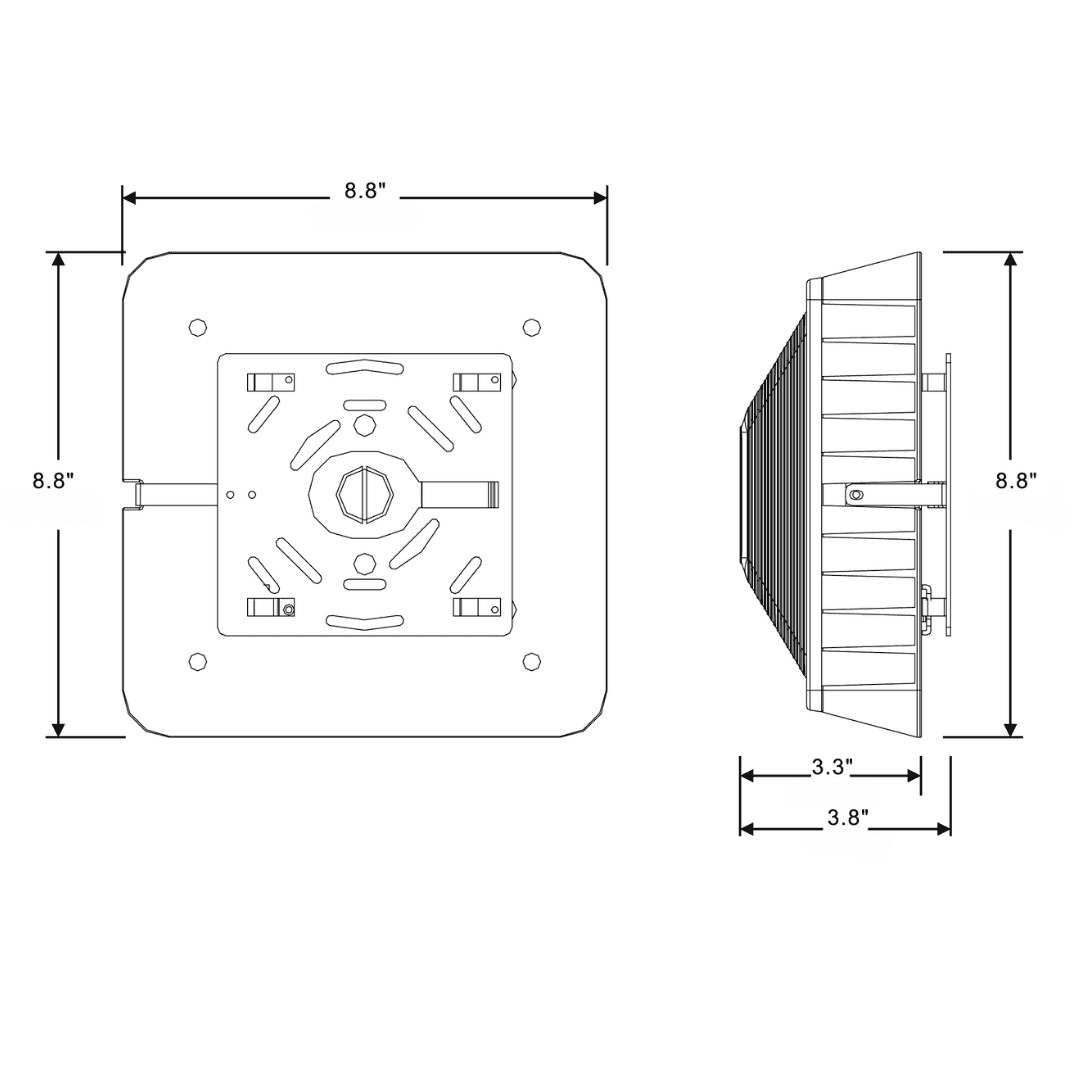

Dimensions: SM: W: 8.8in, L: 8.8in, H: 3.8in

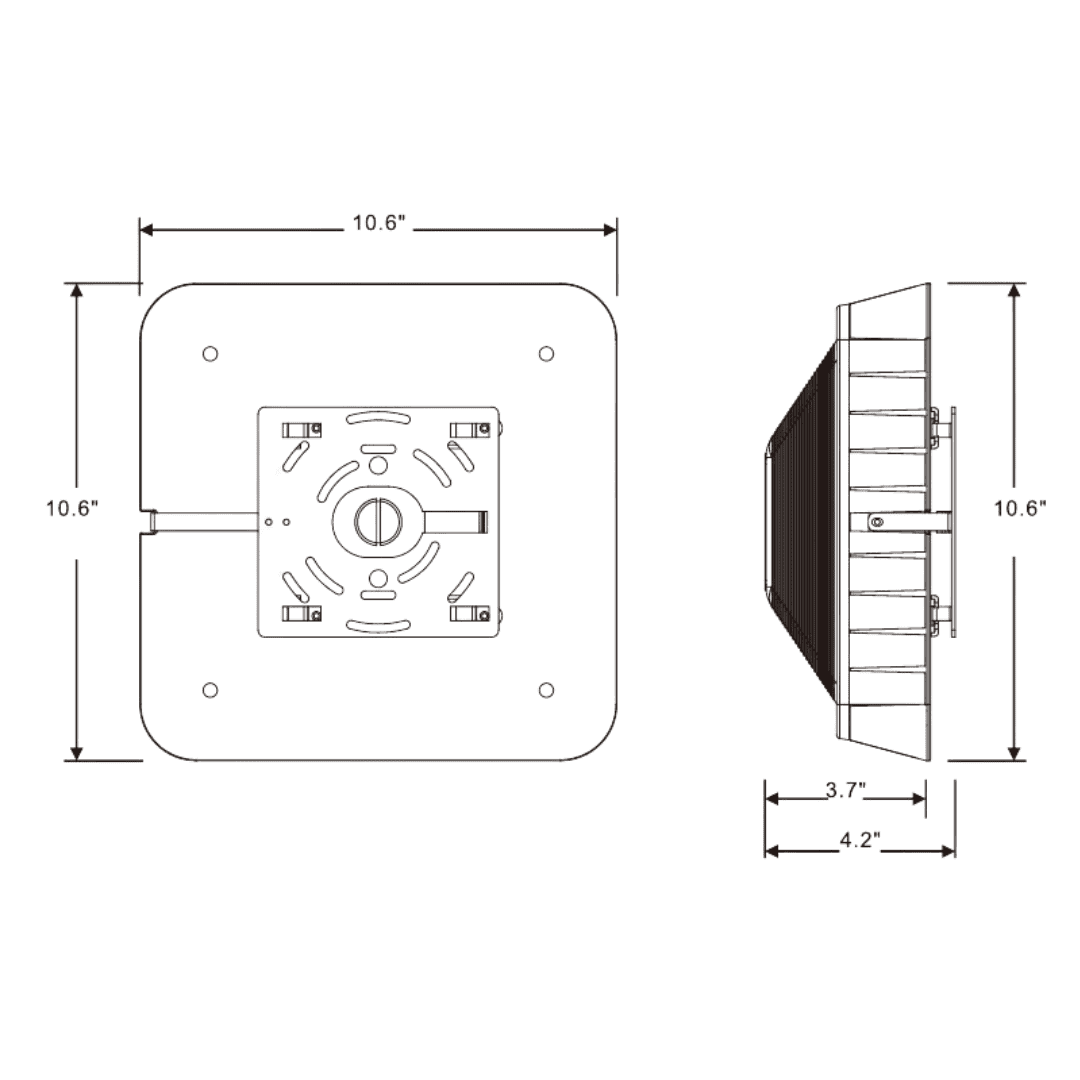

           MD: W: 10.6in, L: 10.6in, H: 4.2in

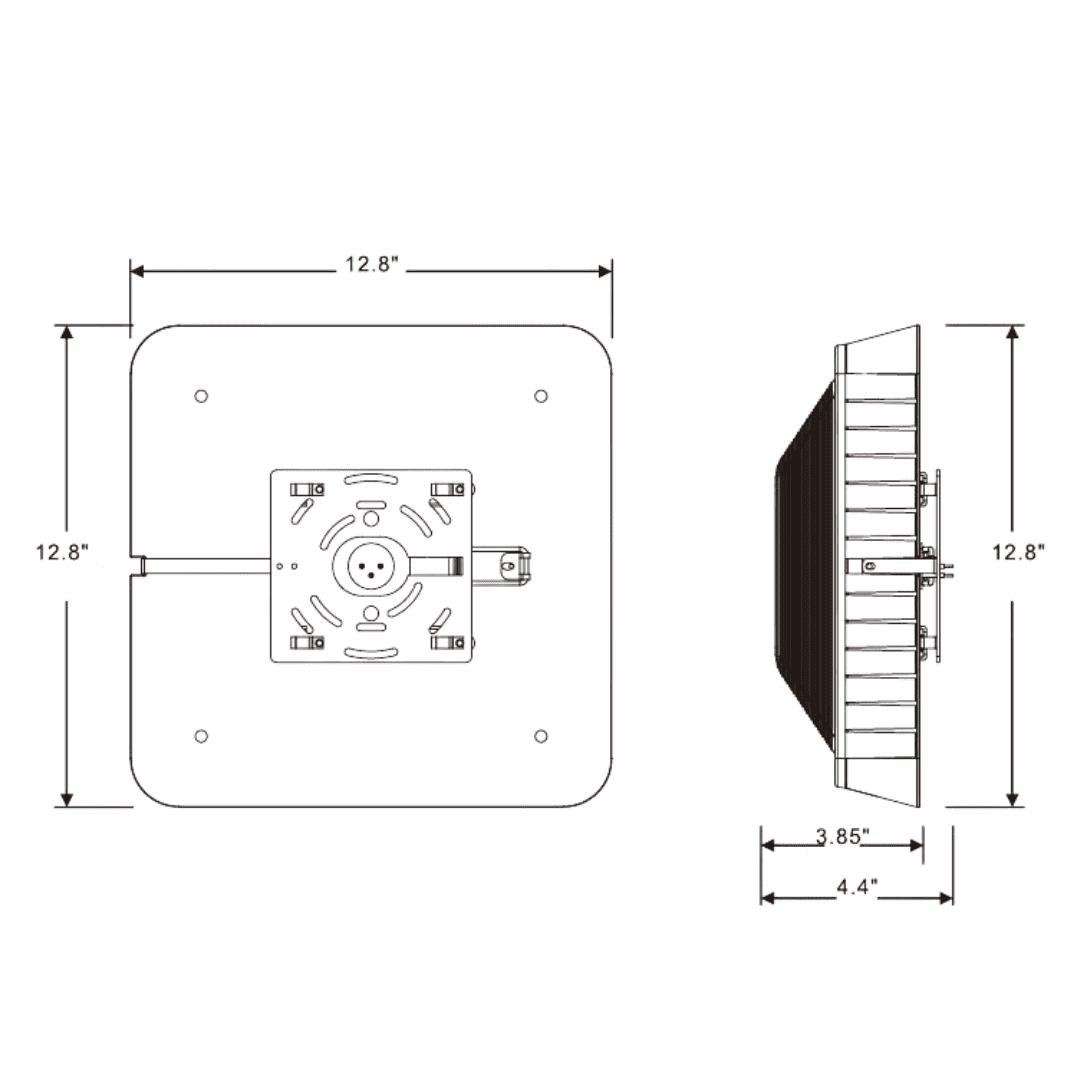

           LG: W: 12.8in, L: 12.8in, H: 4.4in
Mounting: Mounts to 4in octagon box, easy mount.
Finish: Bronze Powder CoatÂ
Listing: cULus for Damp Locations.
GLS1

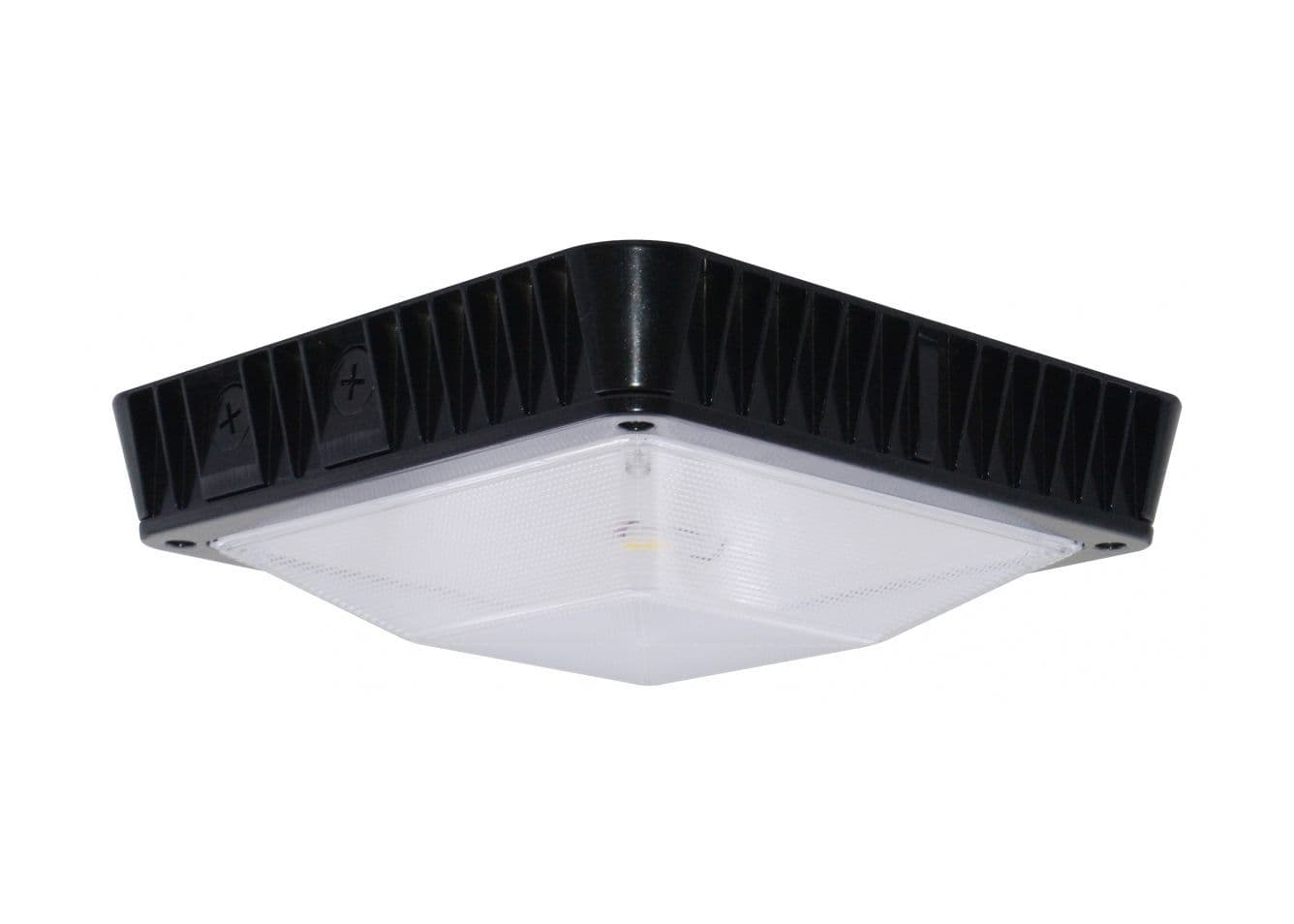

Canopy light for parking garages and covered areas.
Application: Canopy light for parking garages and covered areas.Â
Material: Heavy duty die-cast aluminum housing.Â
Lamp Type: Integral LED, 120-277V, Field Selectable Wattage & Kelvin, 70CRIÂ
          SM / LED43W: 14/26/38/43W, 30/40/50K, 5,574LM Max
          MD / LED60W: 18/35/52/60W, 30/40/50K, 7,707LM MaxÂ
          LG / LED83W:  26/49/73/83W, 30/40/50K, 10,815LM Max
Dimensions: SM: W: 8.8in, L: 8.8in, H: 3.8in
           MD: W: 10.6in, L: 10.6in, H: 4.2in
           LG: W: 12.8in, L: 12.8in, H: 4.4in
Mounting: Mounts to 4in octagon box, easy mount.
Finish: Bronze Powder CoatÂ
Listing: cULus for Damp Locations.
