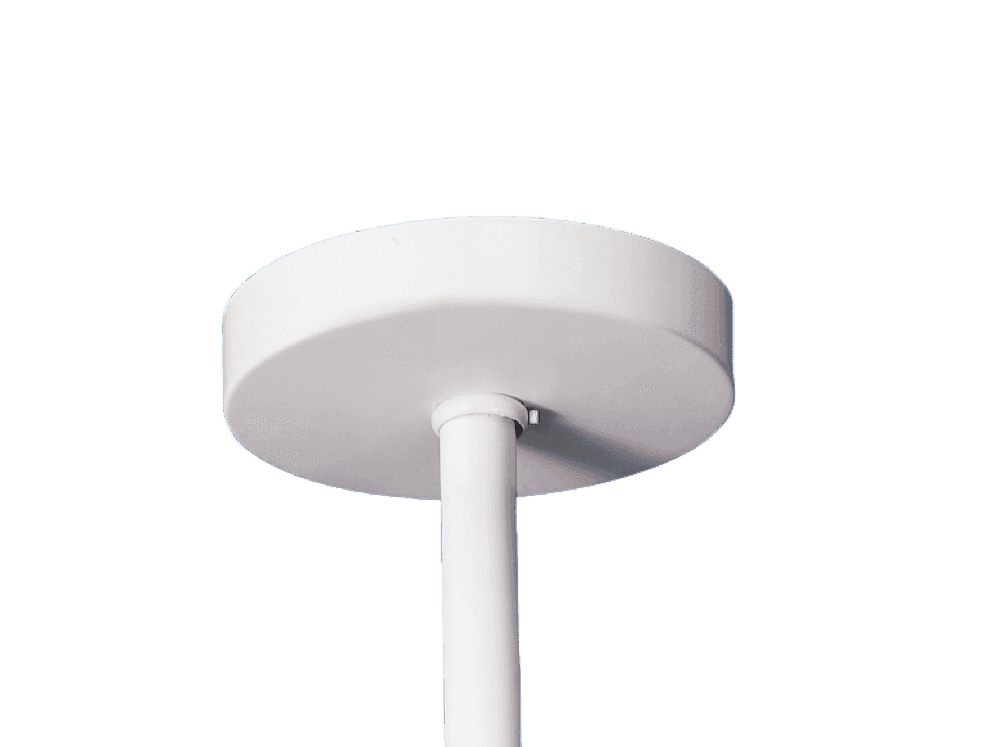

Canopy - 640 Rigid
Stem mounting available for ½" and ¾" N.P.T. pipe; specify. Canopy is held in place with a slip ring. Canopy is 5 5/8" Dia. x 1" deep. Kit for mounting to 4" octagon box included. To order stems see above. Reflectors ordered with stems & canopies are factory wired and are suitable for wet location. Be sure thread sizes of canopy, stem and reflector hub all match. NOTE: If installed outdoors use a thread sealant on stem threads.

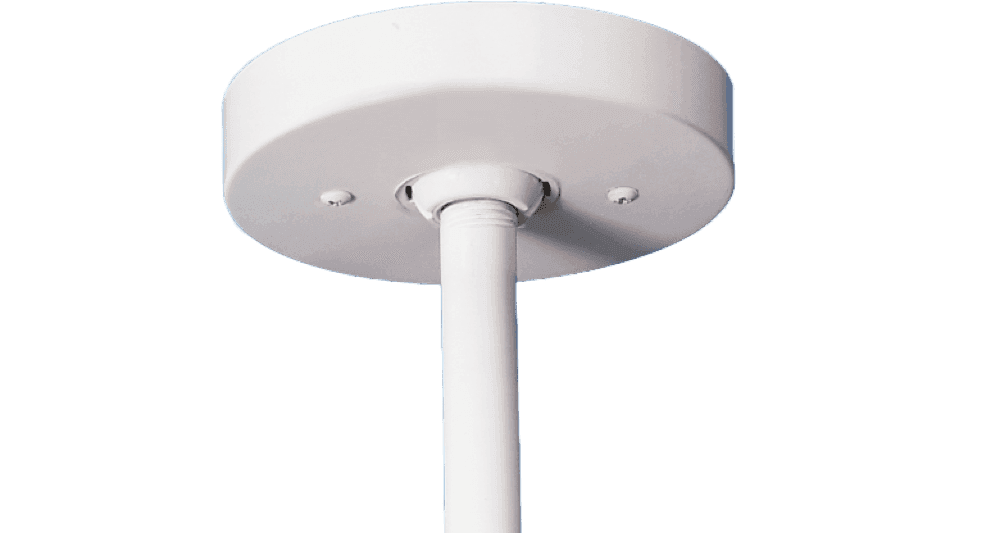

Canopy - 642 Aligner
Stem mounting available for ½" and ¾" NPT. Hang Straight Canopy for Sloped Ceiling, no Locking Mechanism

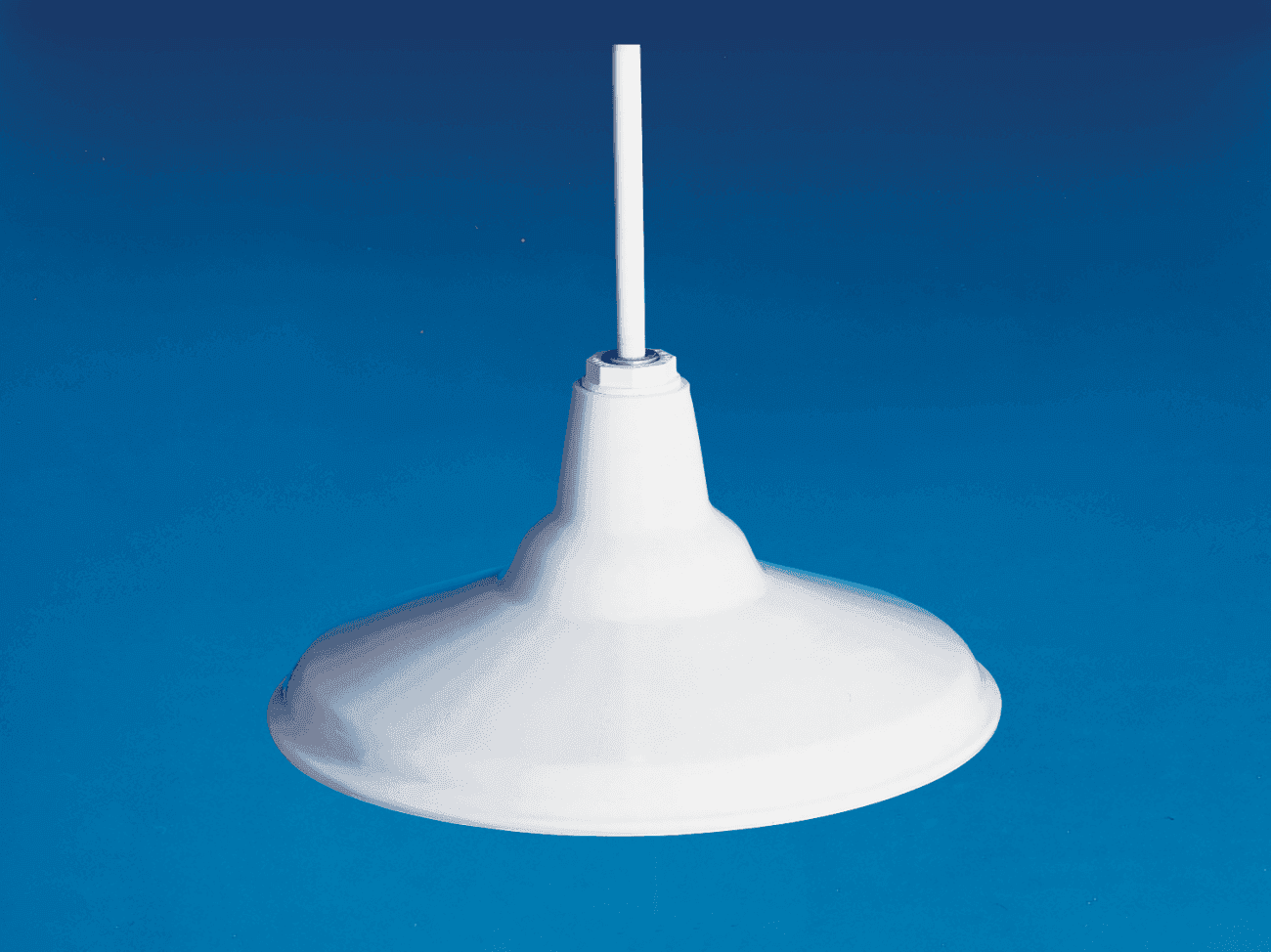

Stem Conduit
Pipe 1/2" or 3/4" threaded N.P.T. both ends. Not field cuttable with 640 and 642 options. Please use SC-Plate options for field cuttable solution.
|
Length |
1/2" |
3/4" |
|---|---|---|
|
12" |
ST2-12 |
ST3-12 |
|
24" |
ST2-24 |
ST3-24 |
|
36" |
ST2-36 |
ST3-36 |
|
42" |
ST2-42 |
ST3-42 |
|
48" |
ST2-48 |
ST3-48 |
|
60" |
ST2-60 |
ST2-60 |
|
72" |
ST2-72 |
ST3-72 |
|
96" |
ST2-96 |
ST3-96 |
Additional Lengths available on request. Consult Factory If installed outdoors use a thread sealant on stem threads. For other stem lengths or colors consult price sheet. Be sure thread size of reflector and stem match.
