BHRZ
Chat Now

Product image
Share

Application: Wallpack for Retail Centers, Industrial Parks, Schools, Universities, Airports, and Medical Facilities
Lamp Type: Type IV - 120-277v or 347- 480v, 1,350-3,800LM Max
                       LED12W: 30/40/50K
                       LED17W: 30/40/50K
                       LED25W: 30/40/50K
Material: Die cast aluminum body
Dimensions:

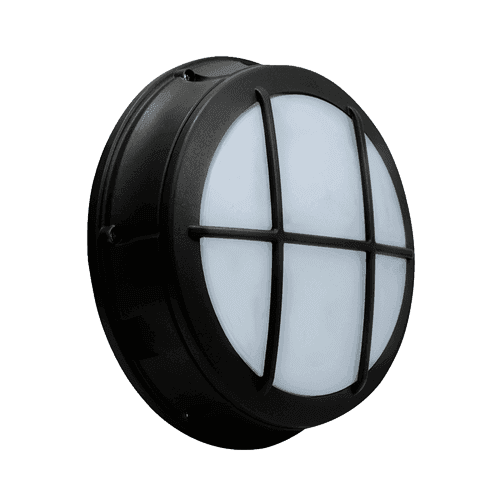

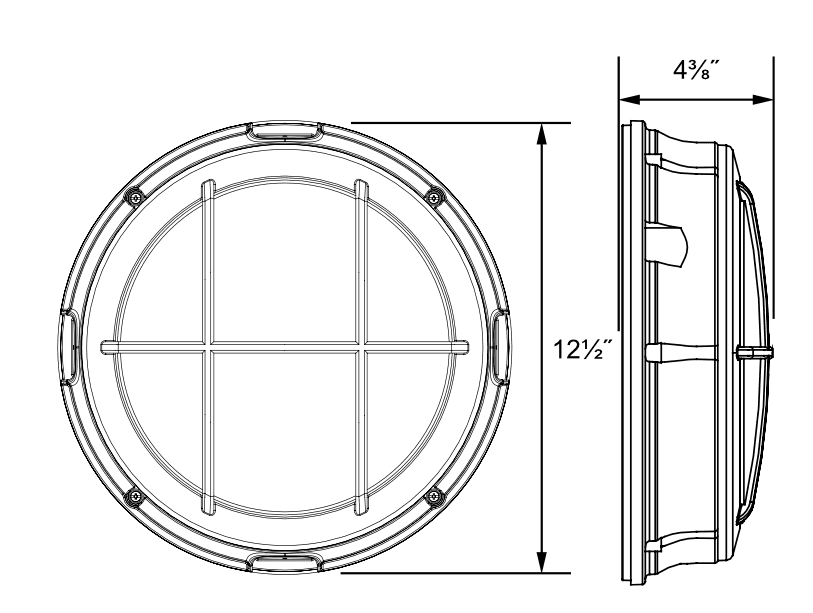

                    BHRZ-G (Grid):D: 4.5in, H: 12.5in

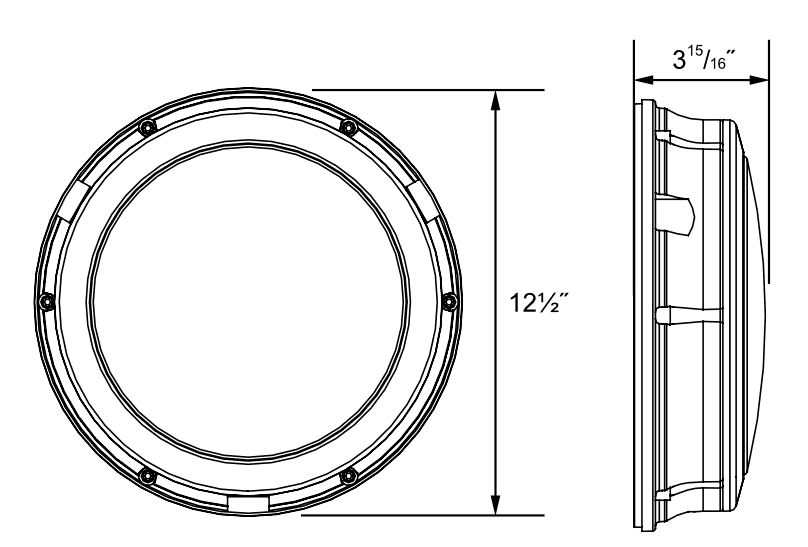

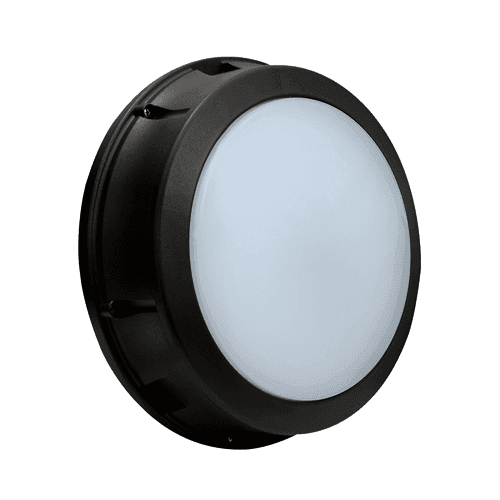

                    BHRZ-O (Open Face): D: 4 in, H: 12.5in

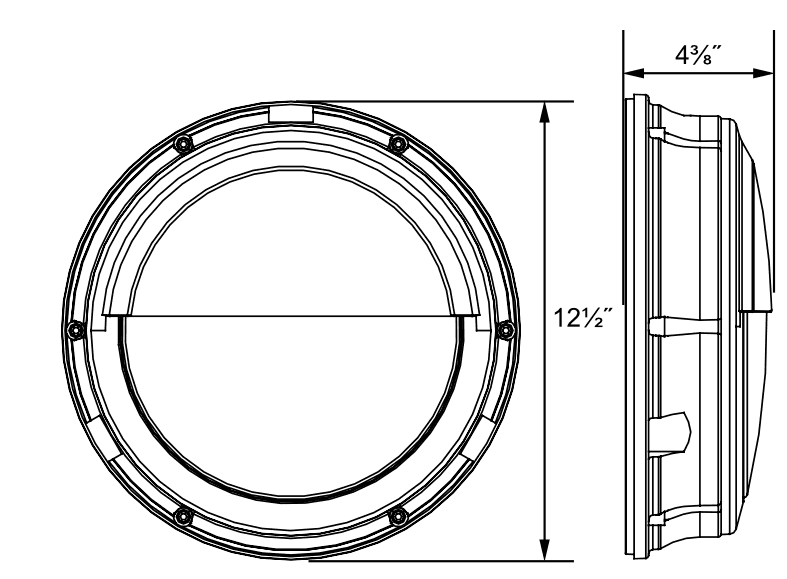

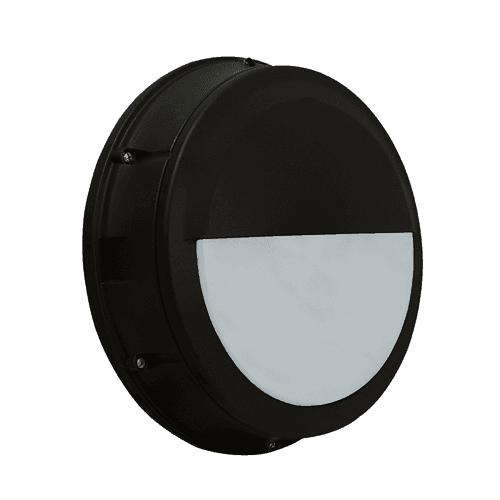

                    BHRZ-HC (Half Cutoff): D: 4.5in, H: 12.5in

Finish: Black, Bronze, Gray or White Coat Finish
Mounting: Surface Mount
Listing: cETLus listed for wet locations

Accessories:
Single Fuse 120-277v Only (SF-UNV)
Surge Protection 120-277v (SP-UNV)
Cold Start Battery Backup 120-277v, -20C Only (EM-COLD)
Battery Backup 90 Minutes 120-277v (EM)
Pencil Photocell 120-277v (PC-UNV)
