630I - Inline Ballast BoxChat Now
Chat Now
Share

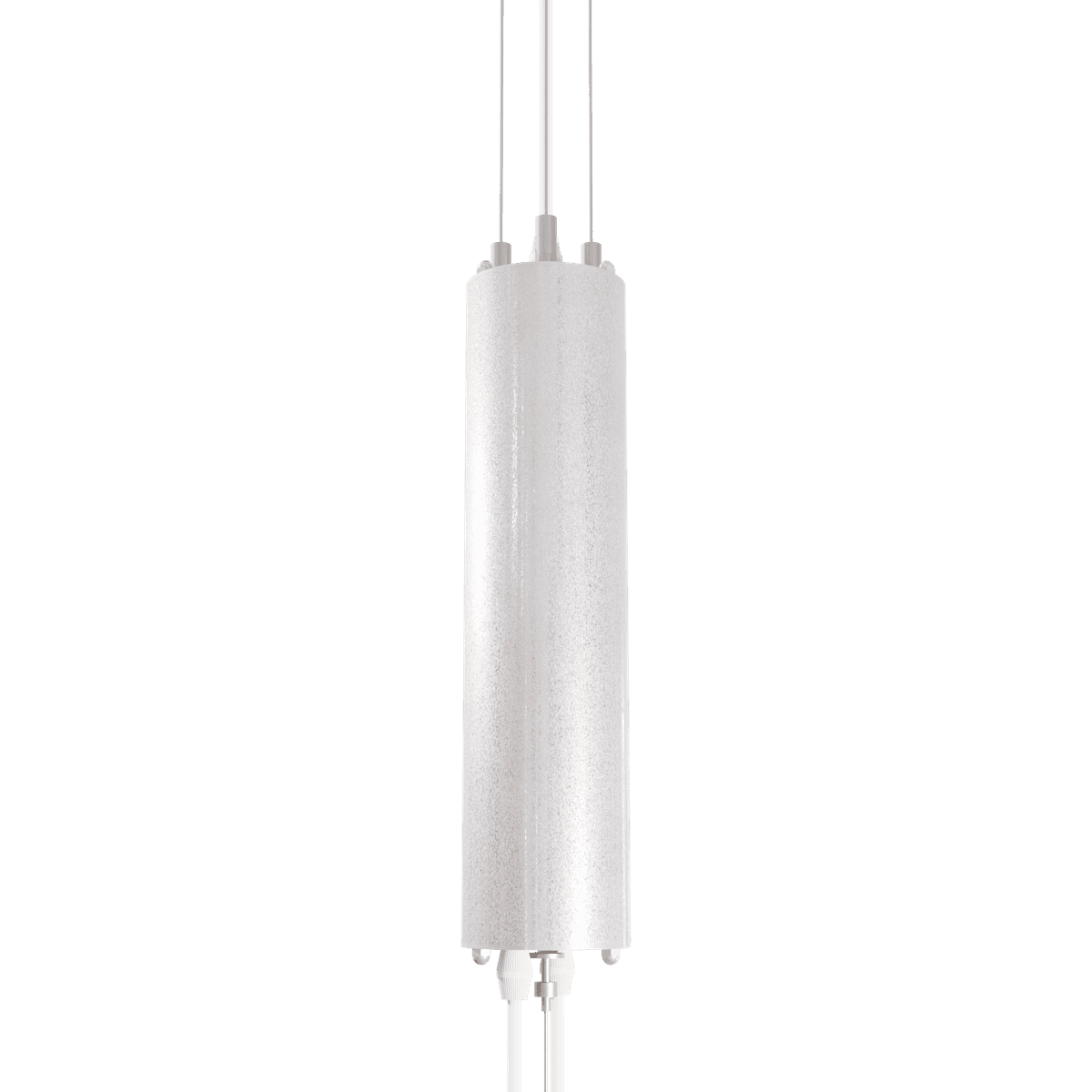

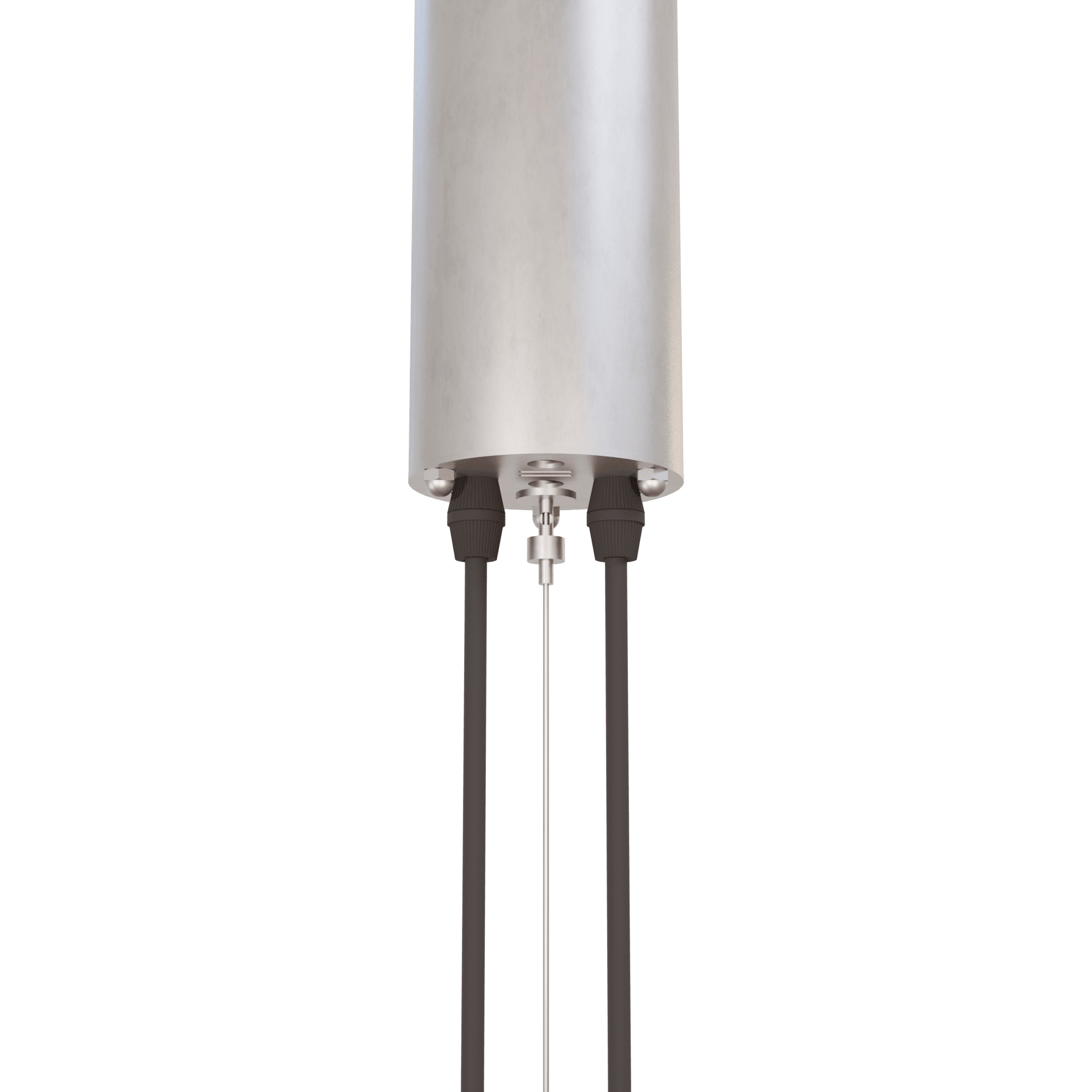

Emergency Battery encased in aluminum shell, suspended with 10ft aircraft cable. Primarily used to provide Emergency Power to LAC and LAH modules.
| Label | Value |
|---|---|
| Input Voltage | 100-347Vac 50/60Hz |
| Input Current | 200mA max |
| Input Power | 12W Max |
| Recharge Time | 24Hrs |
| Discharge Time | 90minutes |
| Emergency Power | 40W |
| Output Voltage | 170Vdc |
| Ambient Temp | 0°C - 50° C |
| Tc | 56.7° C |
