APPLICATION: Approved for use in all indoor and outdoor locations exposed
to moisture and rain, corrosive fumes, non-explosive vapors and gases or

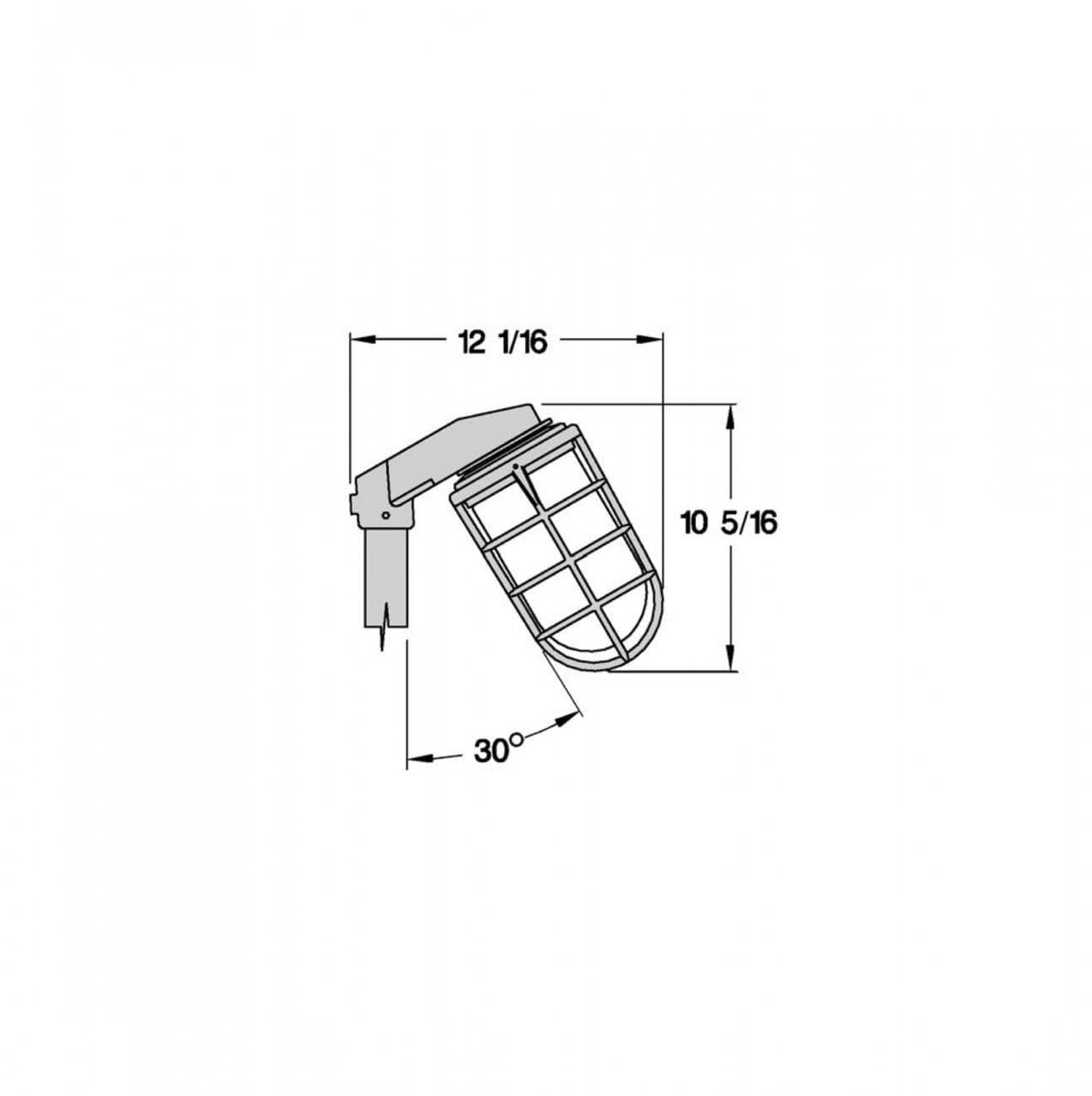

non-combustible dusts. Vapor tight and rain tight. For mounting to a 1-1/4”
(1.660” O. D. ) pipe. Held with 3/8” hex head set screw.
LIGHT SOURCE: Standard incandescent fixture for medium base “A” lamp.
Fixtures can be equipped with an optional ballast housing for up to 42
watt compact fluorescent or 150 watt metal halide or high pressure sodium.

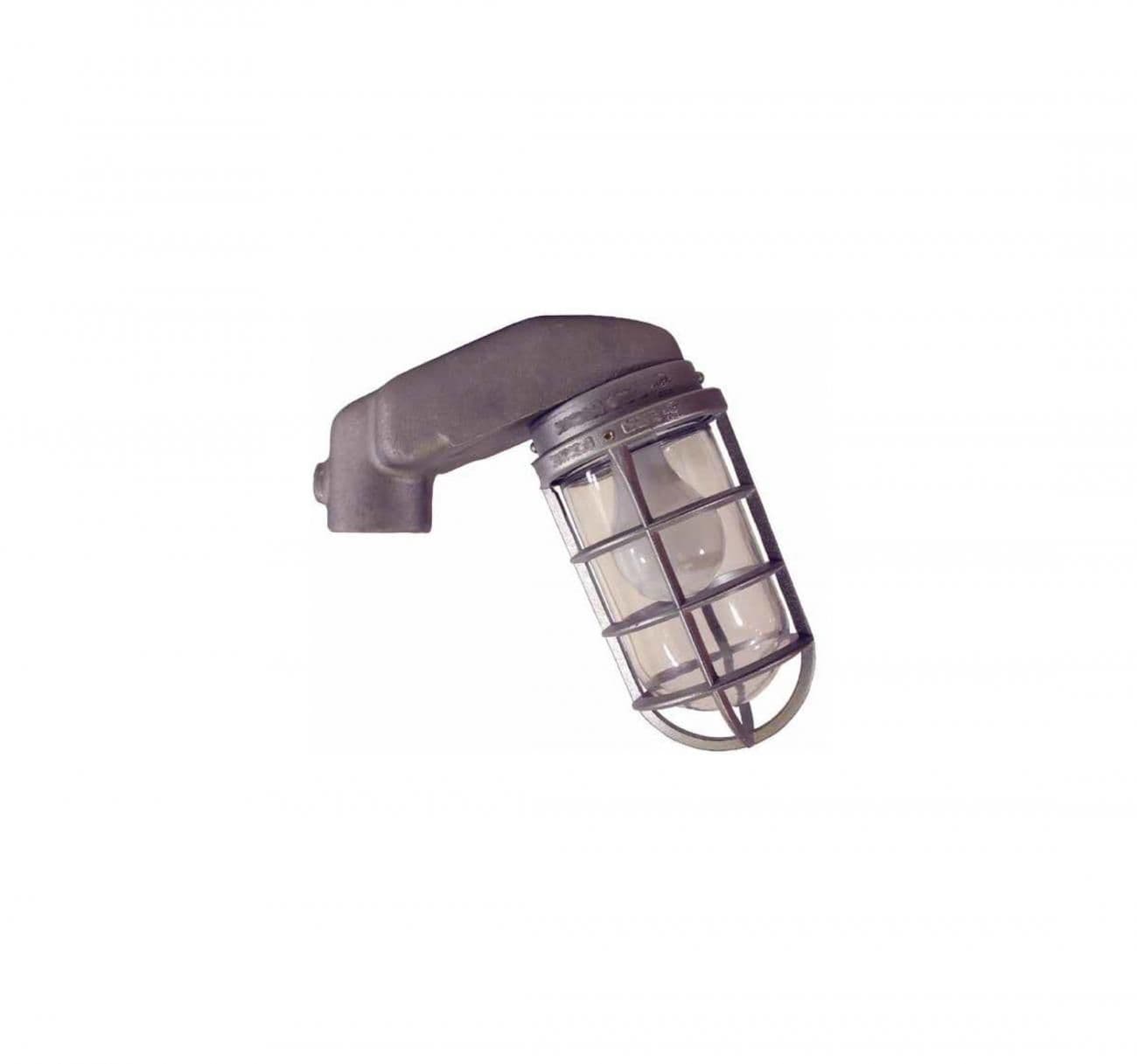

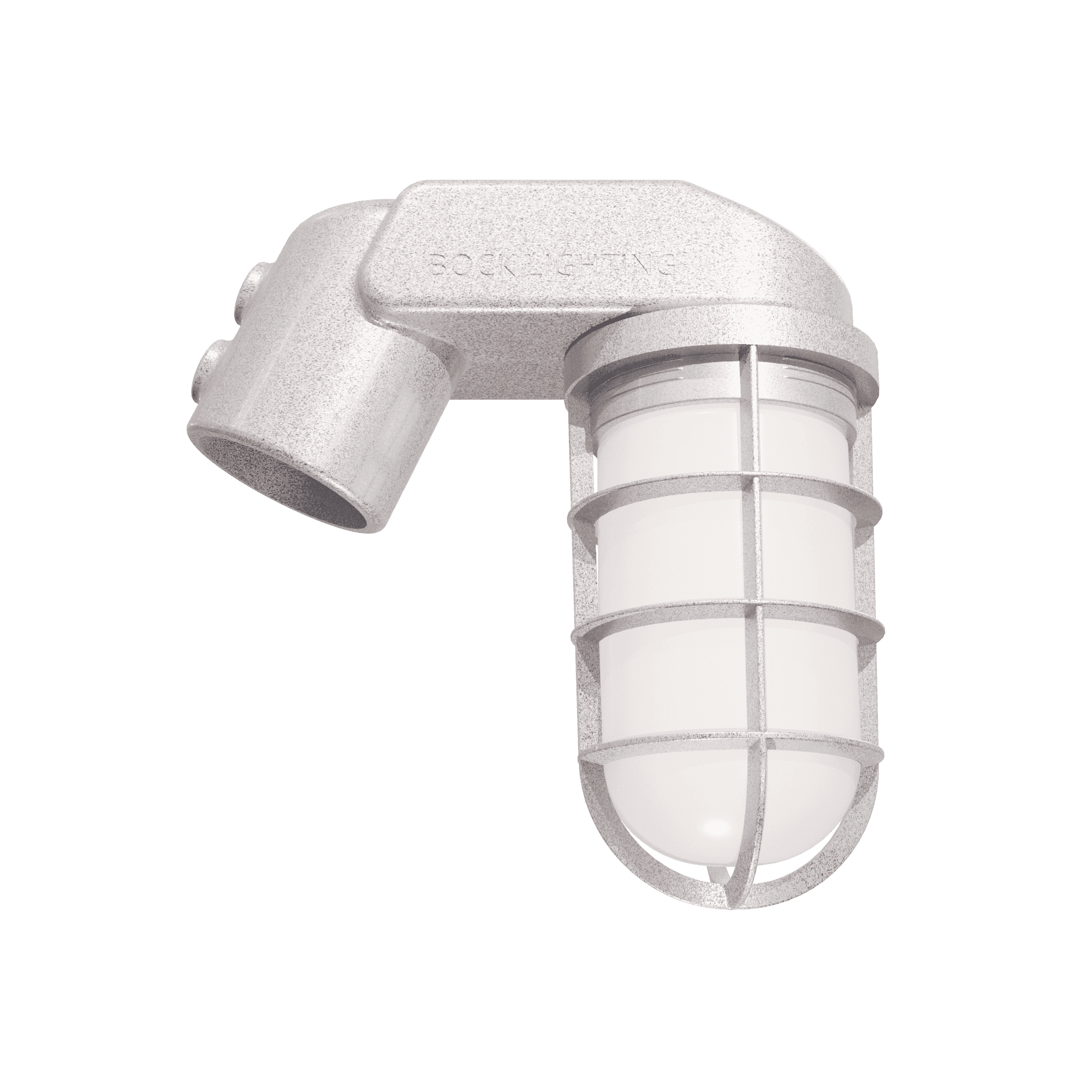

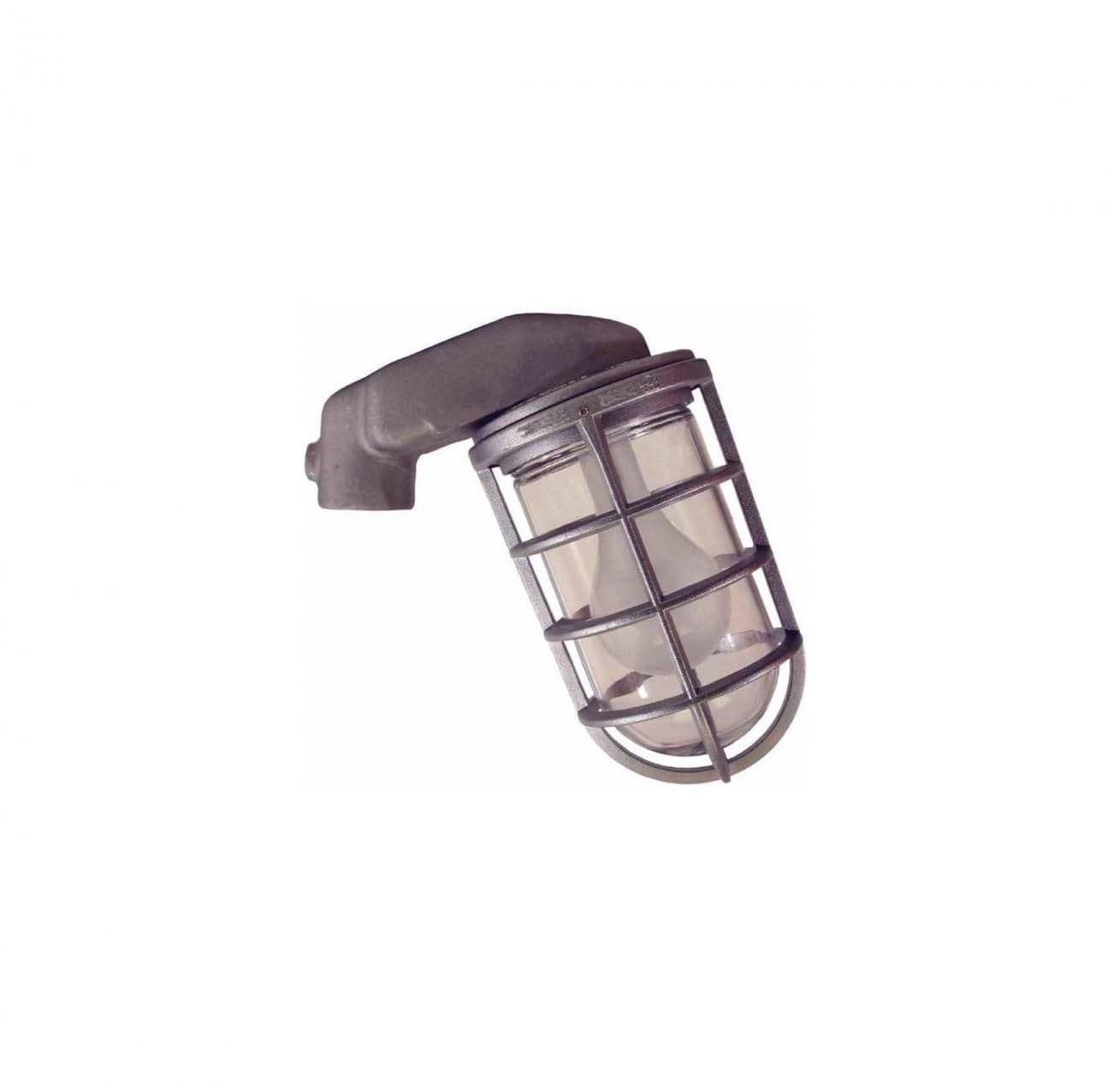

HOUSING CONSTRUCTION: Stanchion type with heavy cast aluminum slip
fitter. Die-cast threaded aluminum globe fitter assembly with exterior threads for
optional die-cast aluminum screw-on guard.
FINISH: Standard finish is textured natural aluminum. Optional powder coat
finishes are available at an additional cost. See ordering guide for complete
list of finishes.
GUARD: Threaded, die-cast aluminum with stainless steel, headless hex
type set-screw.
GLOBE: Threaded for easy lamp replacement. Standard globe is clear
glass. Optional glass globes include prismatic, opal, blue, green, amber or
red. Lexan globes in clear or colors are also available. Cast guard option
is not available with Lexan globes. See ordering guide for complete list of
globes.
SOCKET: Standard units include a medium base, glazed porcelain, 4KV
pulse rated lamp holder with nickel plated screw shell and spring loaded center
contact. Compact fluorescent ballast option includes GX24Q-3 / GX24Q-4
universal 4-pin socket for 26, 32 or 42 watt triple tube lamps.
HARDWARE: All fasteners are stainless steel.
GASKETS: Memory retentive, die-cut silicone for superior sealing and heat
resistance.
APPROVALS: Listed with Underwriter’s Laboratories for
WET LOCATIONS. C-UL Listed for Canada.
BAA/BABA: Please add either BAA or BABA to end of part number if job requires.
