APPLICATION: Approved for use in all indoor and outdoor locations exposed to moisture and rain, corrosive fumes, non-explosive vapors and gases or non-combustible dusts. Vapor tight and rain tight. May be mounted directly to a ceiling or wall surface.
LIGHT SOURCE: Standard incandescent fixture for medium base “A” lamp. Fixtures can be equipped with an optional ballast housing for up to 42 watt compact fluorescent or 150 watt metal halide or high pressure sodium.

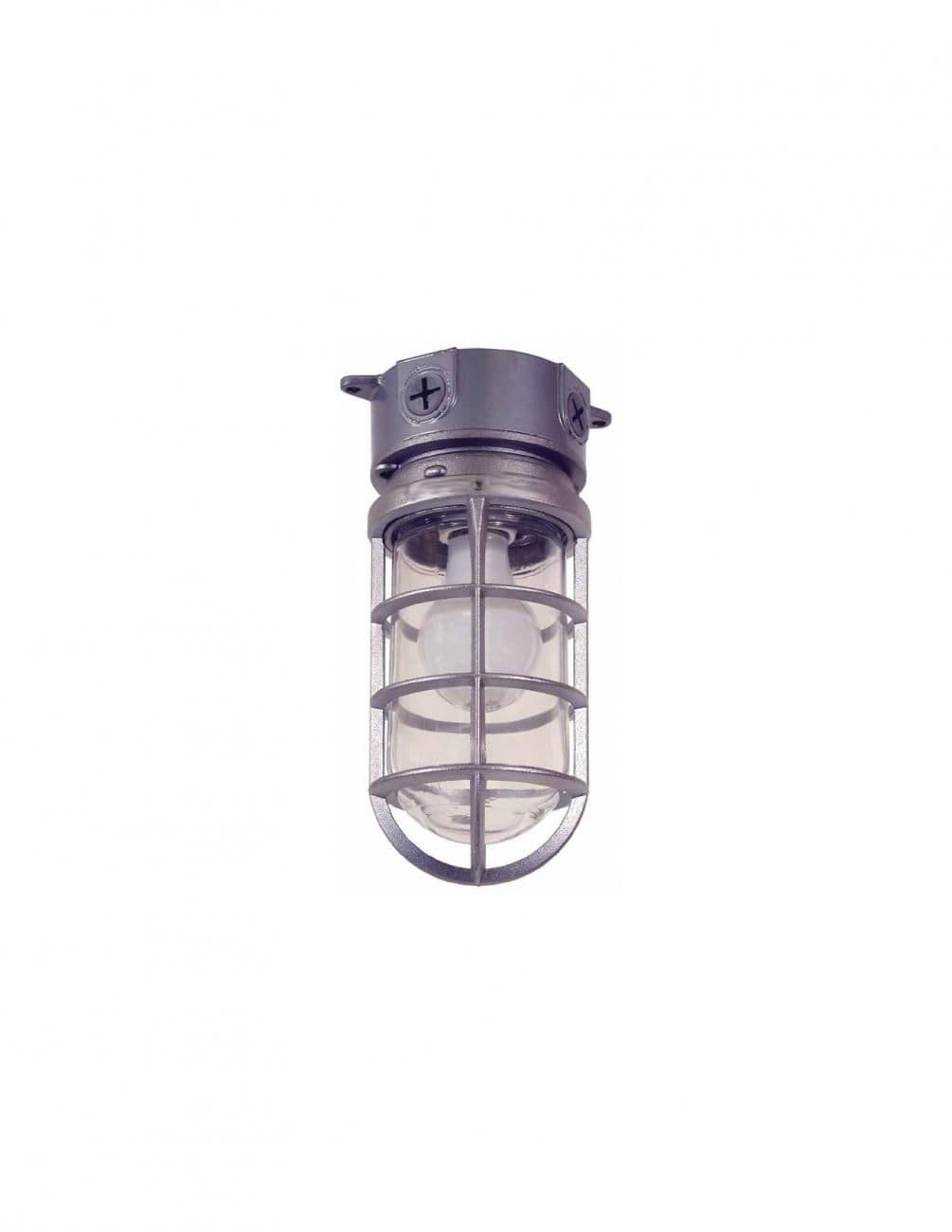

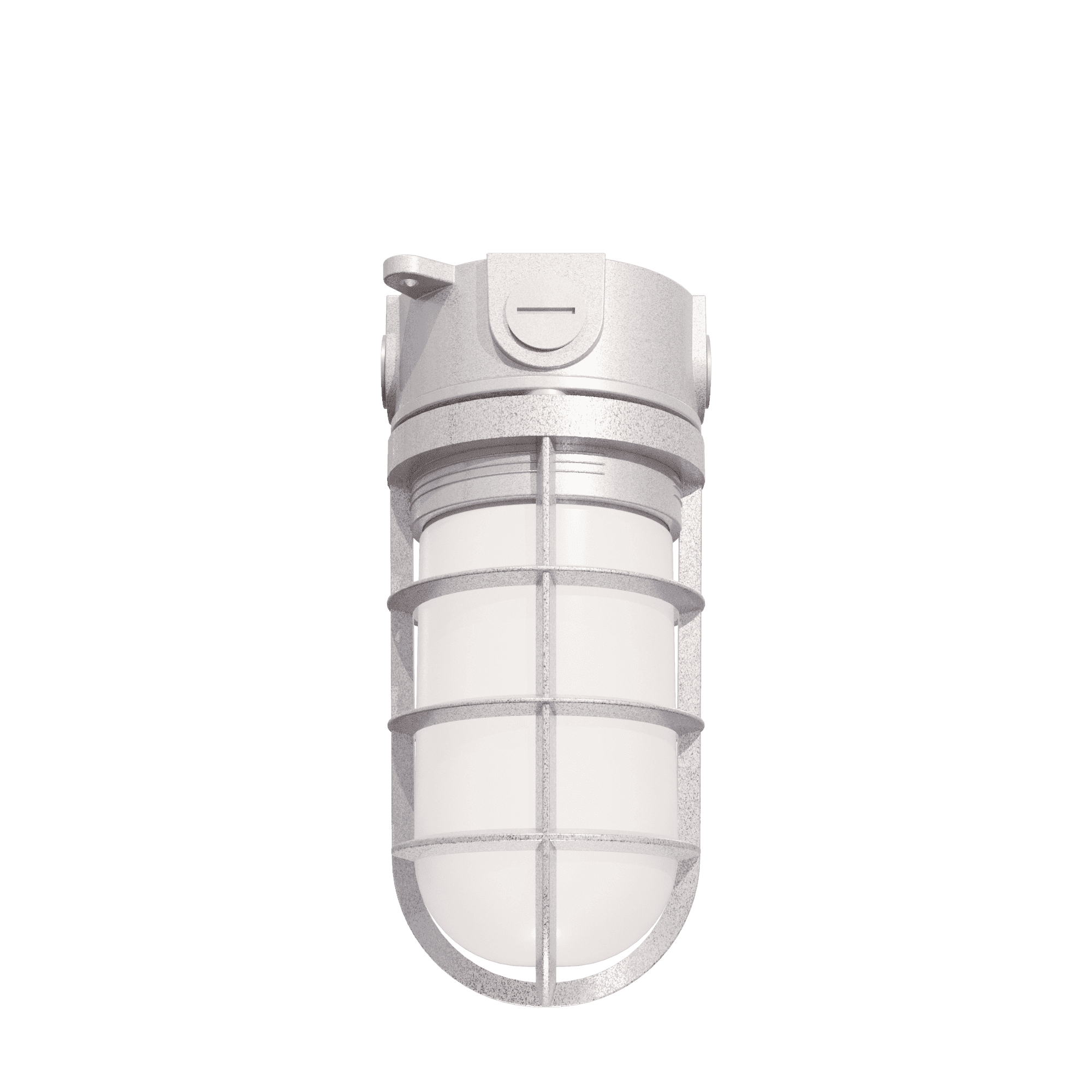

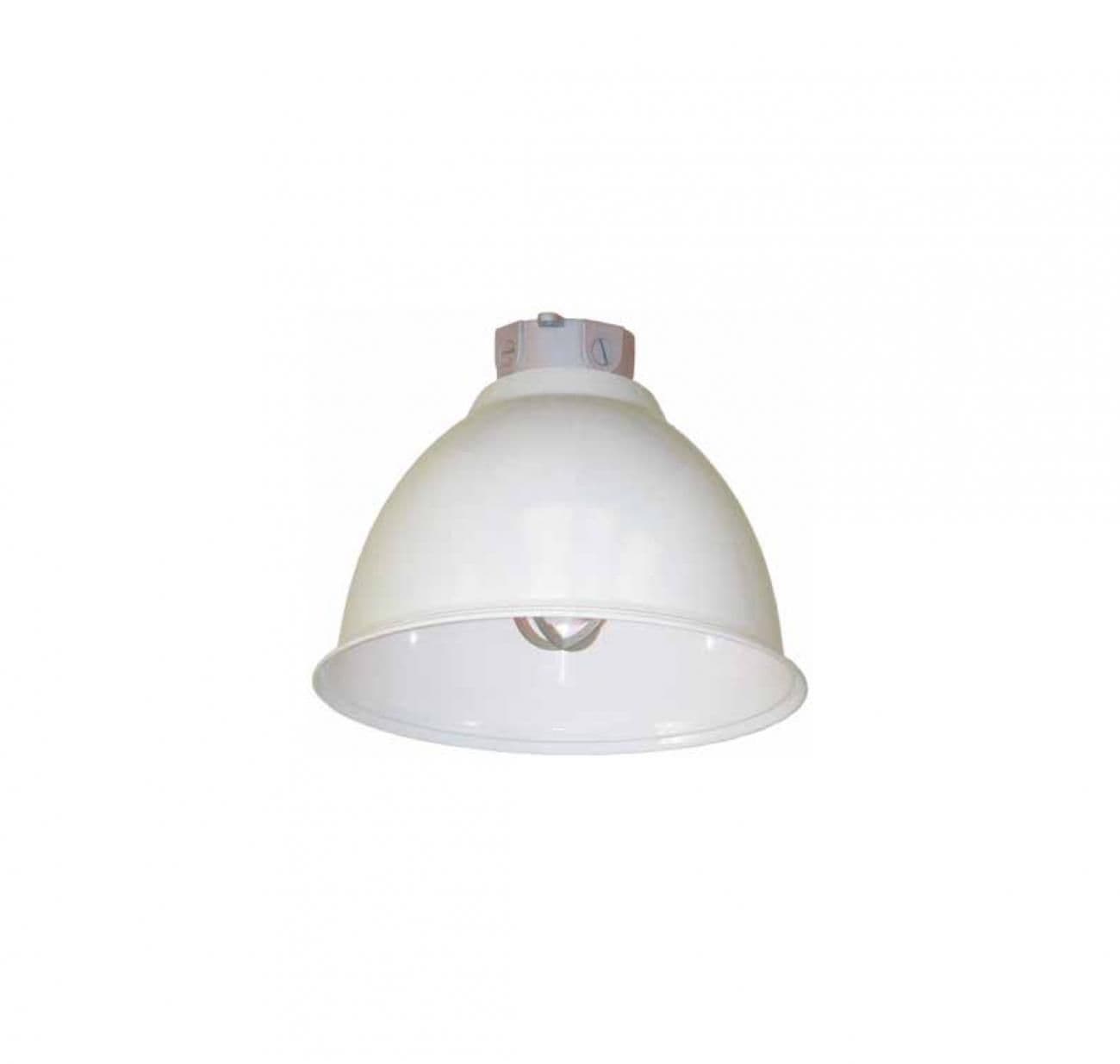

HOUSING CONSTRUCTION: Ceiling type with heavy die-cast copper free aluminum junction box, tapped 1/2” or 3/4”. Die-cast threaded aluminum globe fitter assembly with exterior threads for optional die-cast aluminum screw-on guard.
FINISH: Standard finish is textured natural aluminum. Optional powder coat finishes are available at an additional cost. See ordering guide for complete list of finishes.

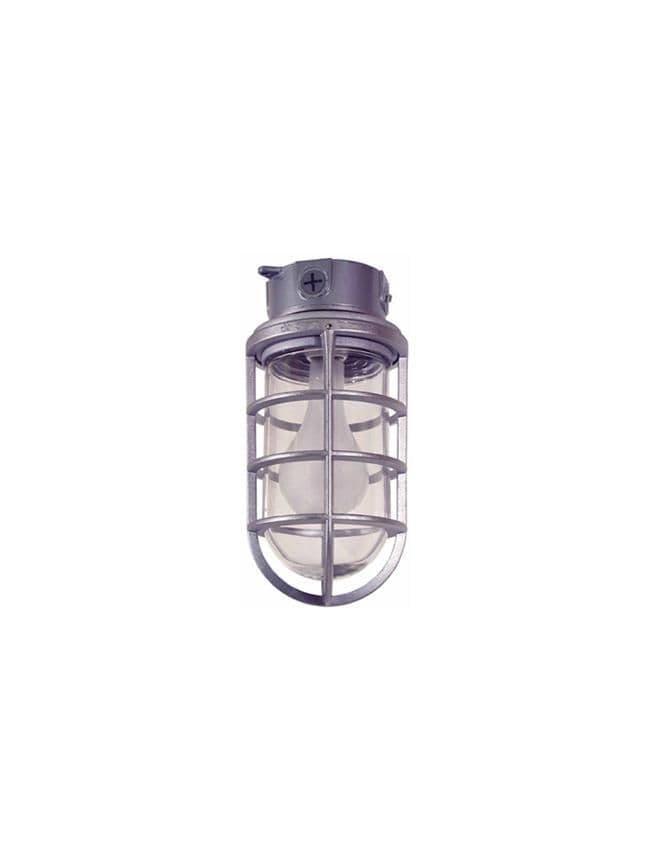

GUARD: Threaded, die-cast aluminum with stainless steel, headless hex type set-screw.
GLOBE: Threaded for easy lamp replacement. Standard globe is clear glass. Optional glass globes include prismatic, opal, blue, green, amber or red. Lexan globes in clear or colors are also available. Cast guard option is not available with Lexan globes. See ordering guide for complete list of globes.

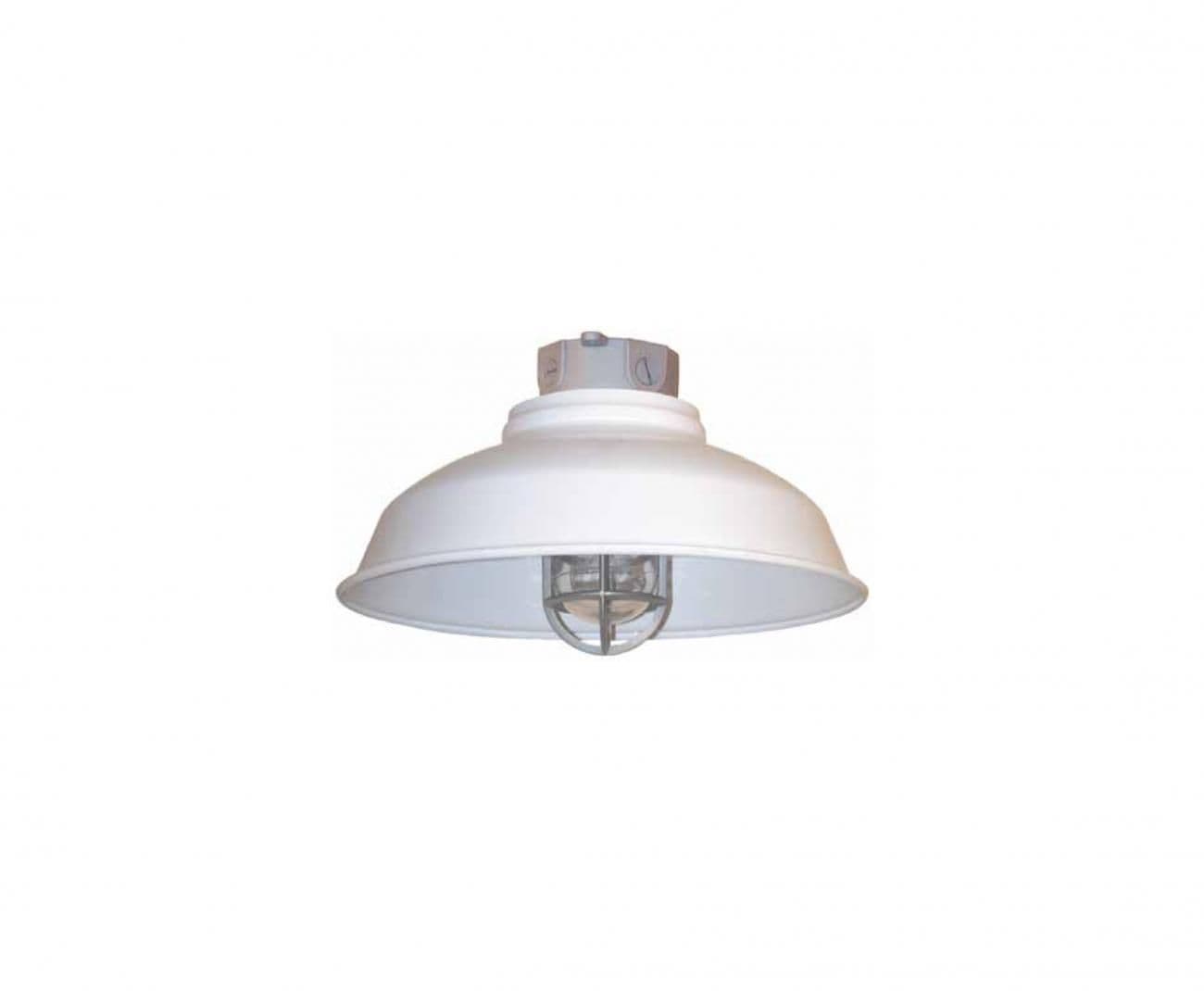

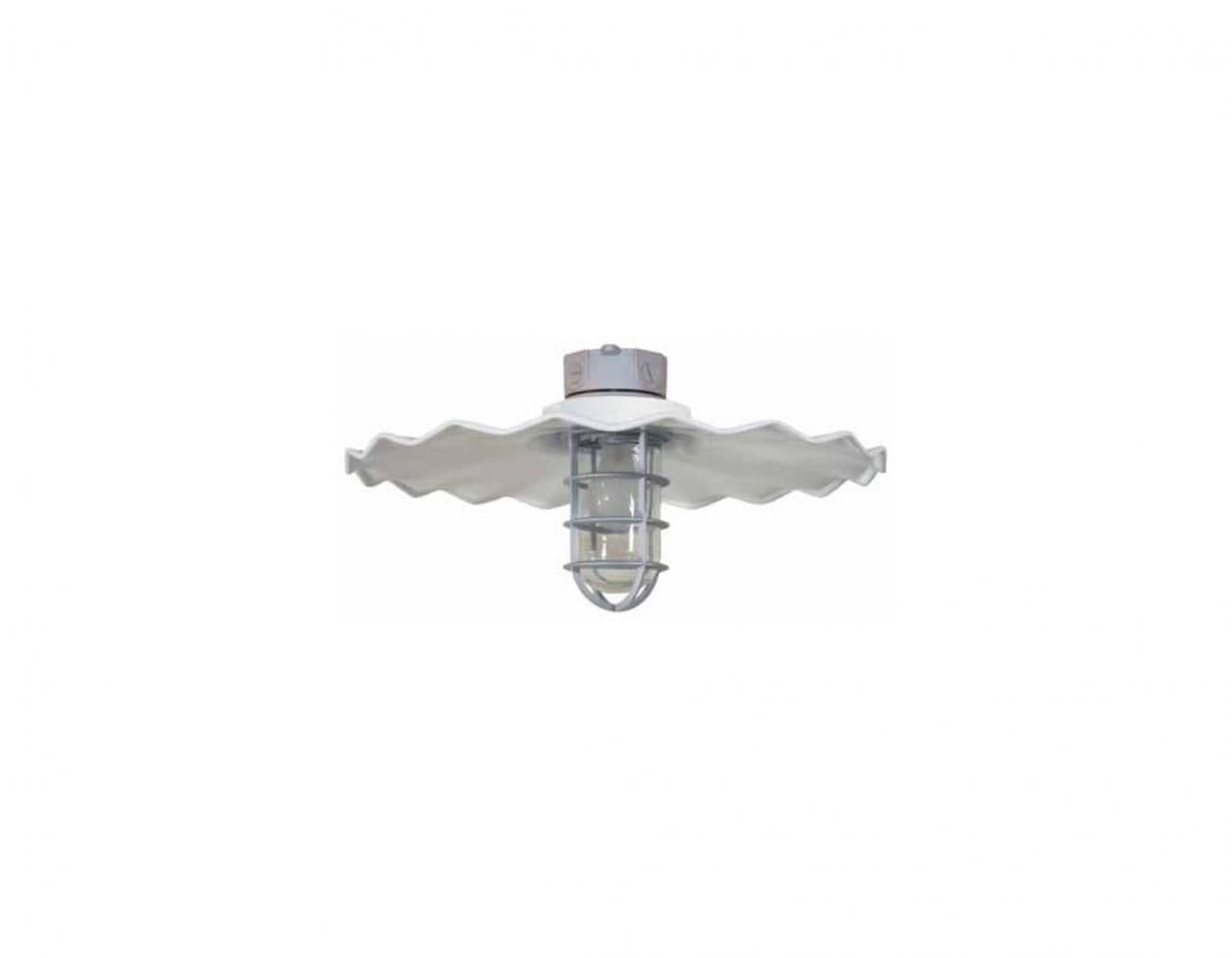

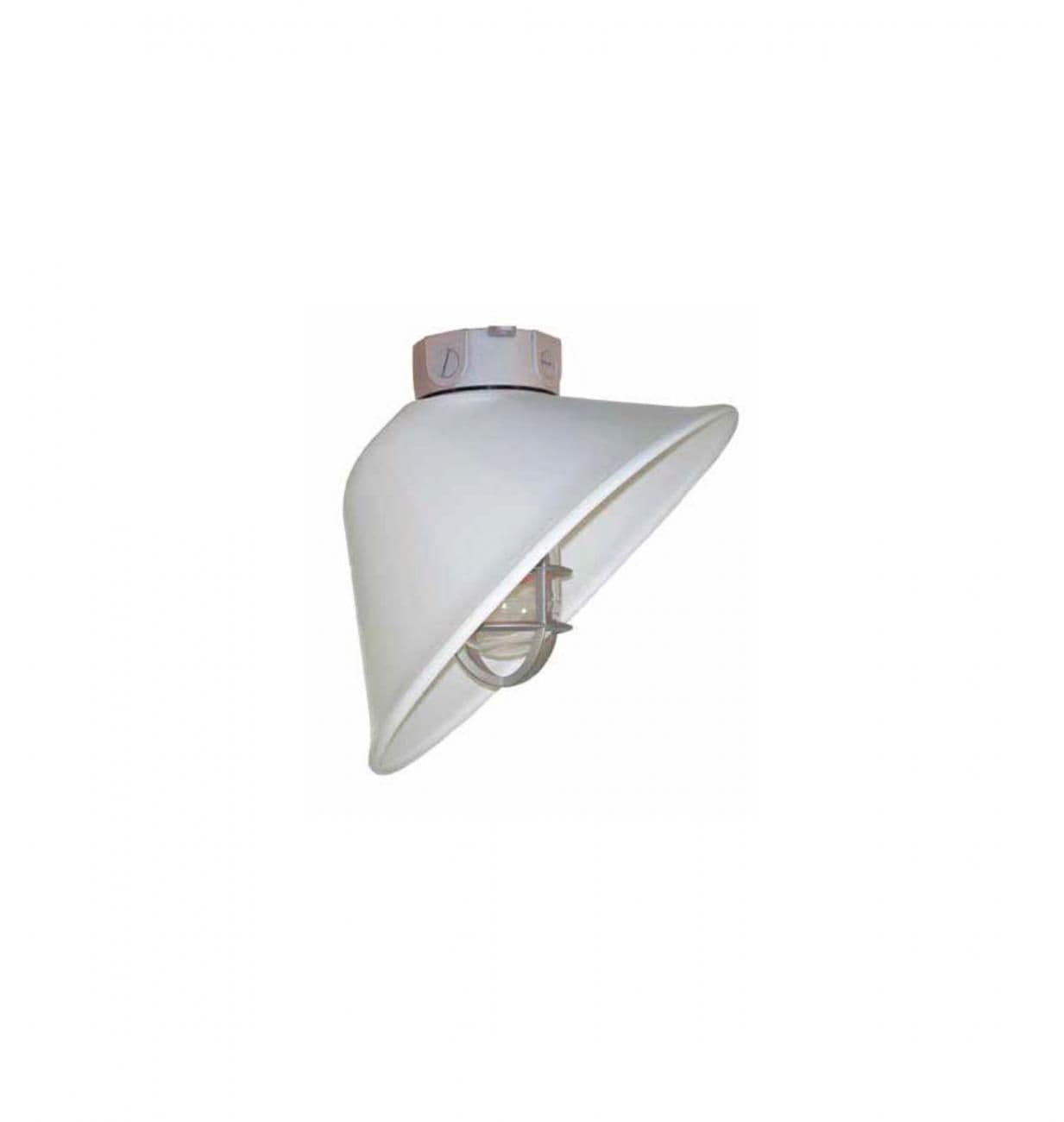

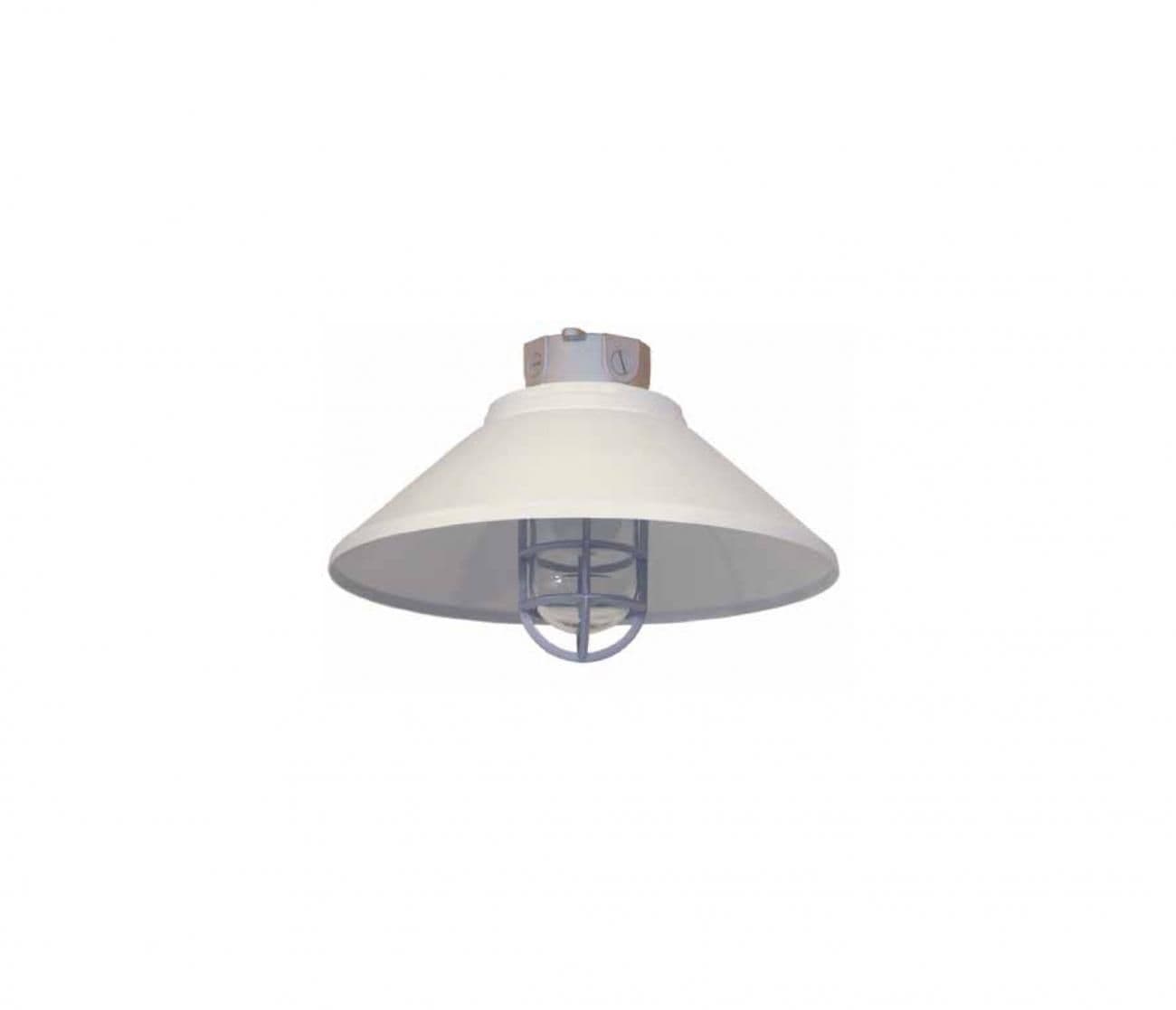

REFLECTOR: Optional reflector choices include Dome, Cone, Angle, Deep Bowl and Radial Wave. Standard finish is white. Optional powder coat color choices are available. See ordering guide for all options.
SOCKET: Standard units include a medium base, glazed porcelain, 4KV pulse rated lamp holder with nickel plated screw shell and spring loaded center contact. Compact fluorescent ballast option includes GX24Q-3 / GX24Q-4 universal 4-pin socket for 26, 32 or 42 watt triple tube lamps. HARDWARE: All fasteners are stainless steel.
GASKETS: Memory retentive, die-cut silicone for superior sealing and heat resistance.
APPROVALS: Listed with Underwriter’s Laboratories for WET LOCATIONS. C-UL Listed for Canada
BAA/BABA: Please add either BAA or BABA to end of part number if job requires.
