APPLICATION: Approved for use in all indoor and outdoor locations
exposed to moisture and rain, corrosive fumes, non-explosive vapors and
gases or non-combustible dusts. Vapor tight and rain tight. May be
mounted directly to a wall or octagon box.
LIGHT SOURCE: Standard incandescent fixture for medium base “A” lamp.
Fixtures can be equipped with an optional ballast housing for up to 42 watt
compact fluorescent or 150 watt metal halide or high pressure sodium.

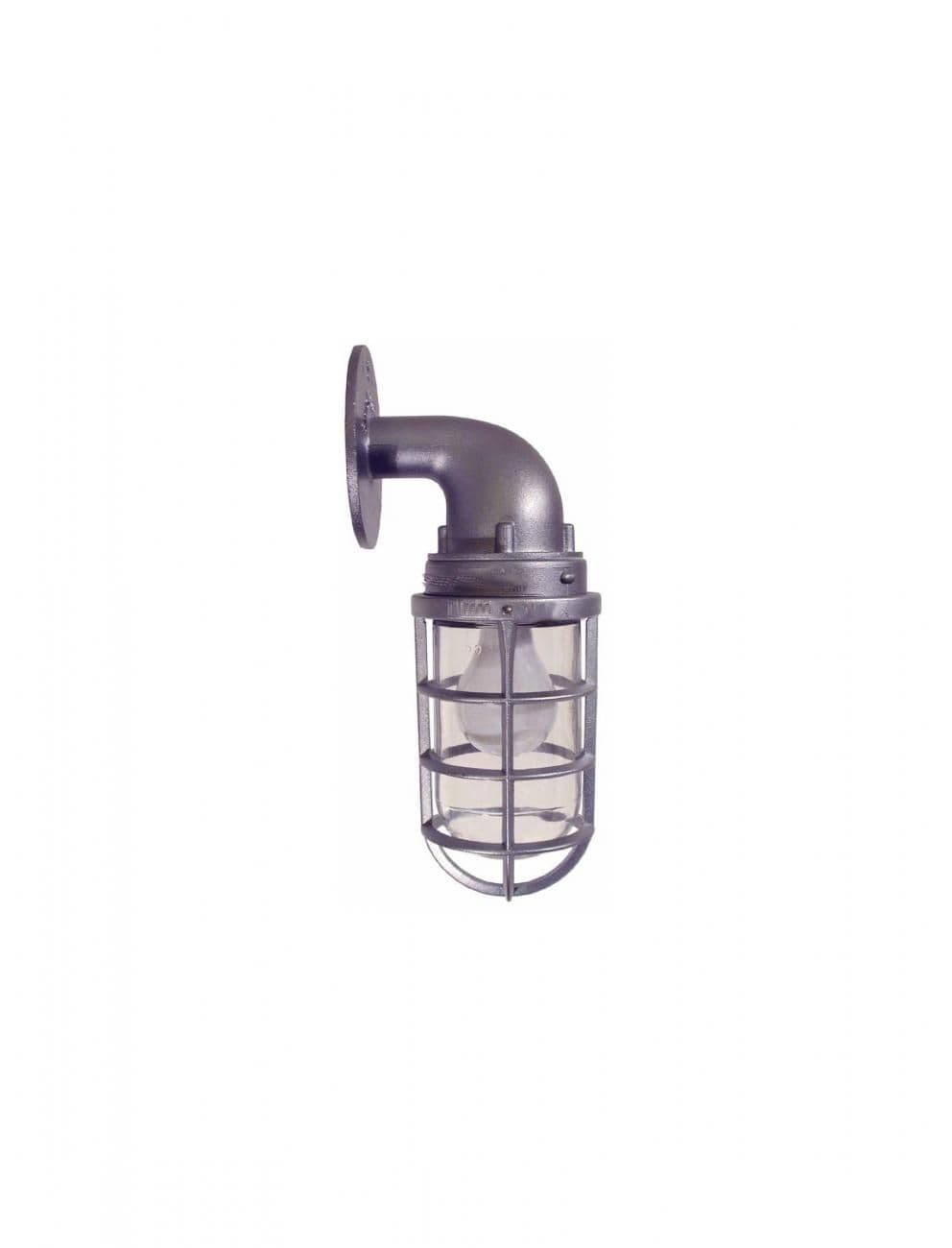

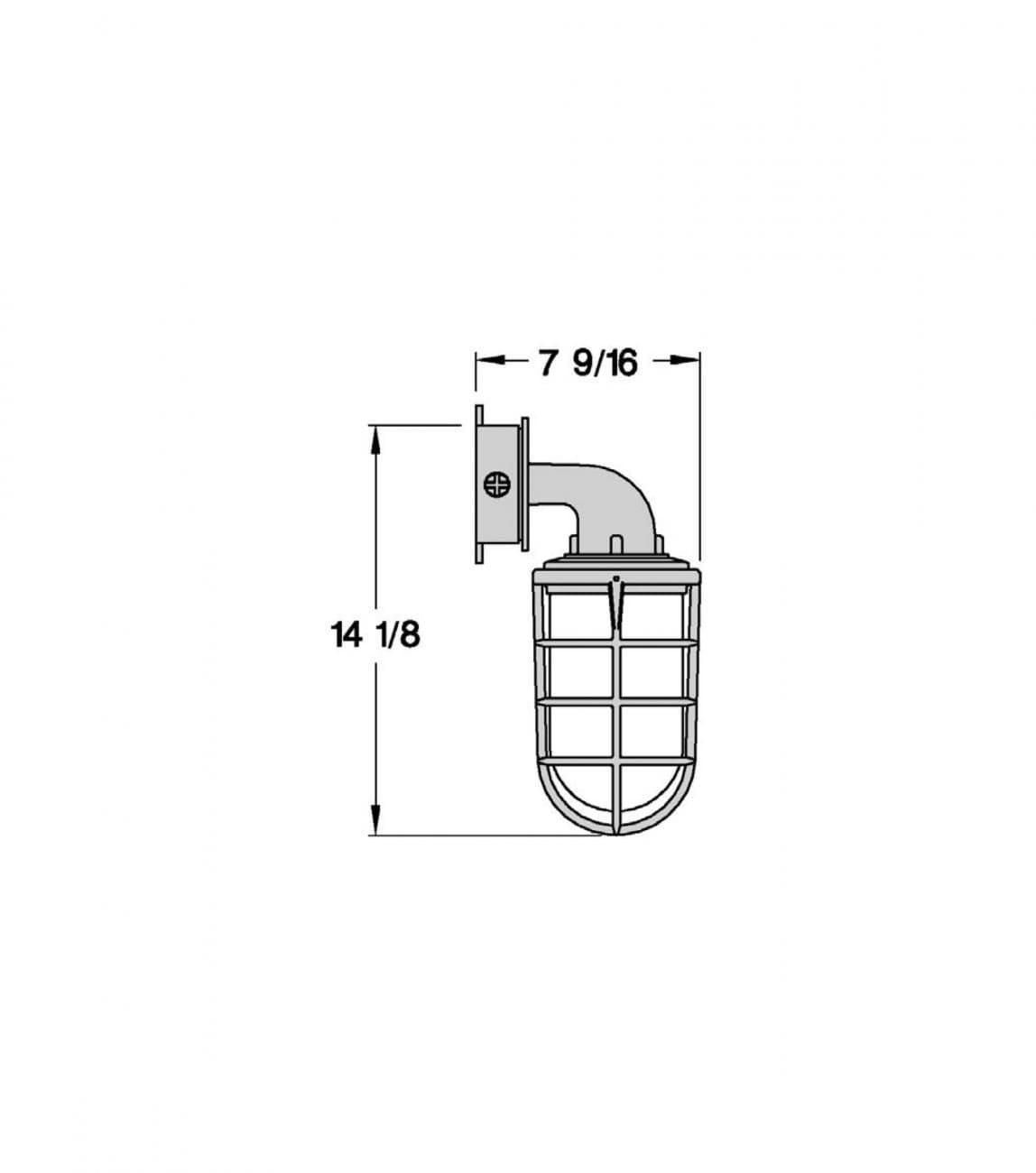

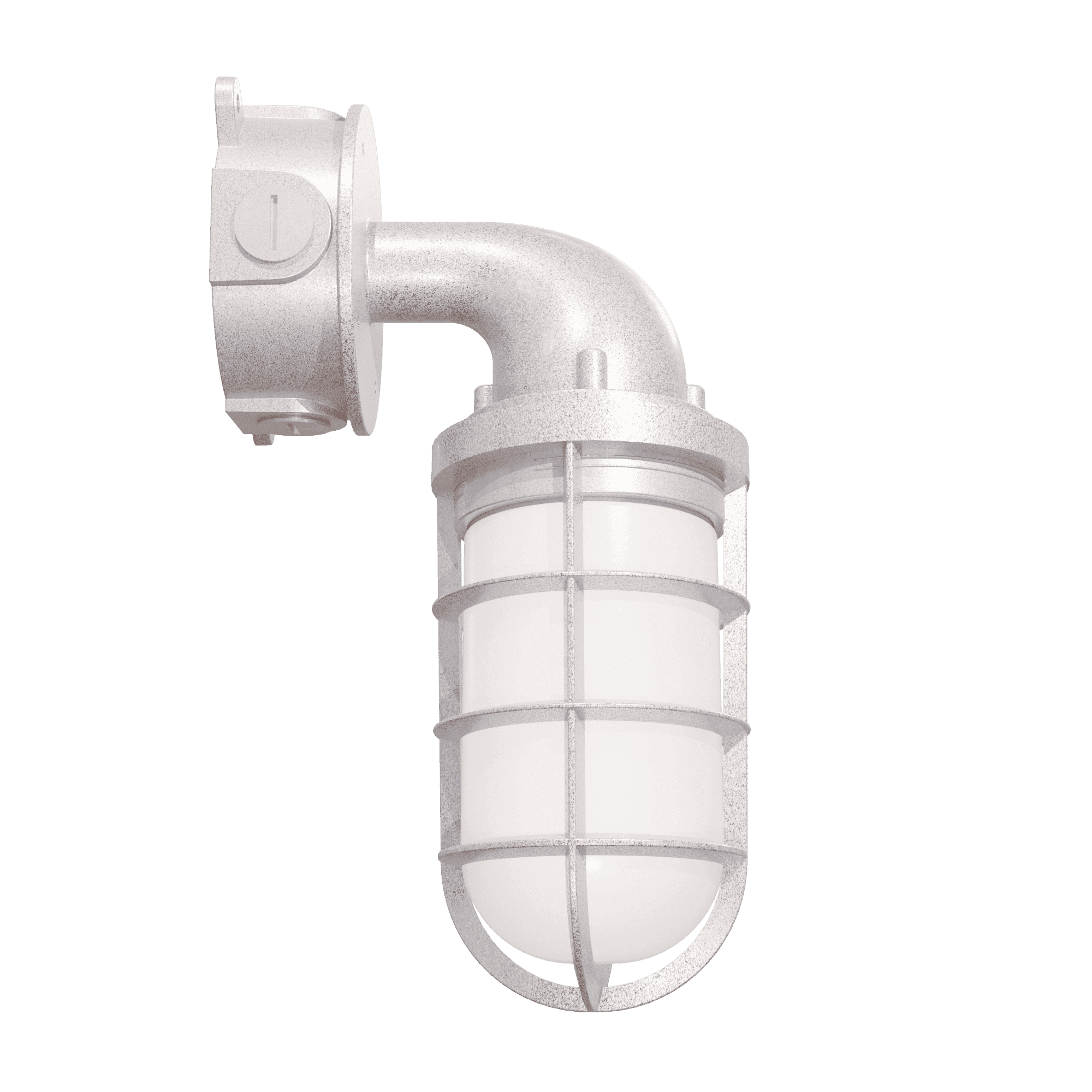

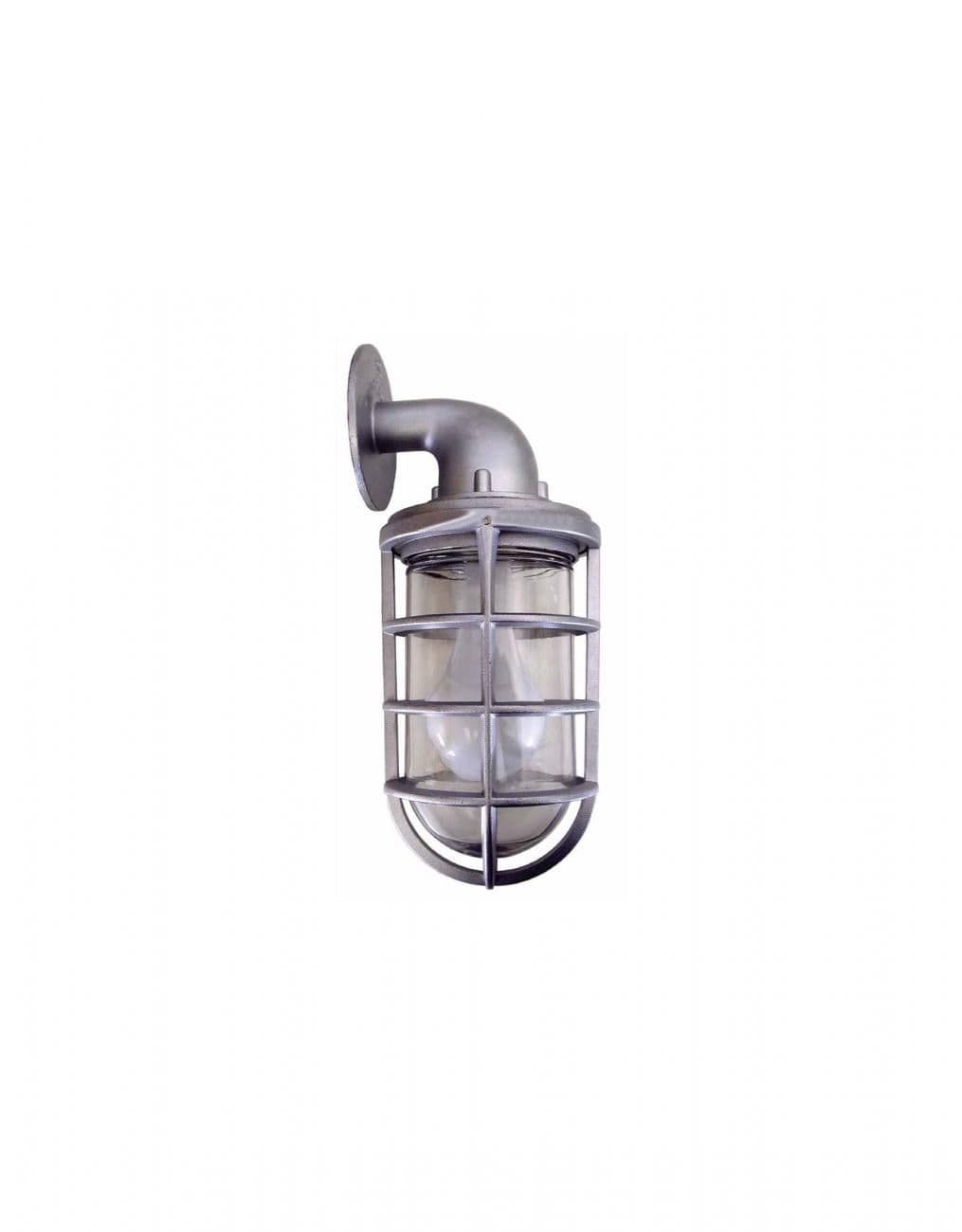

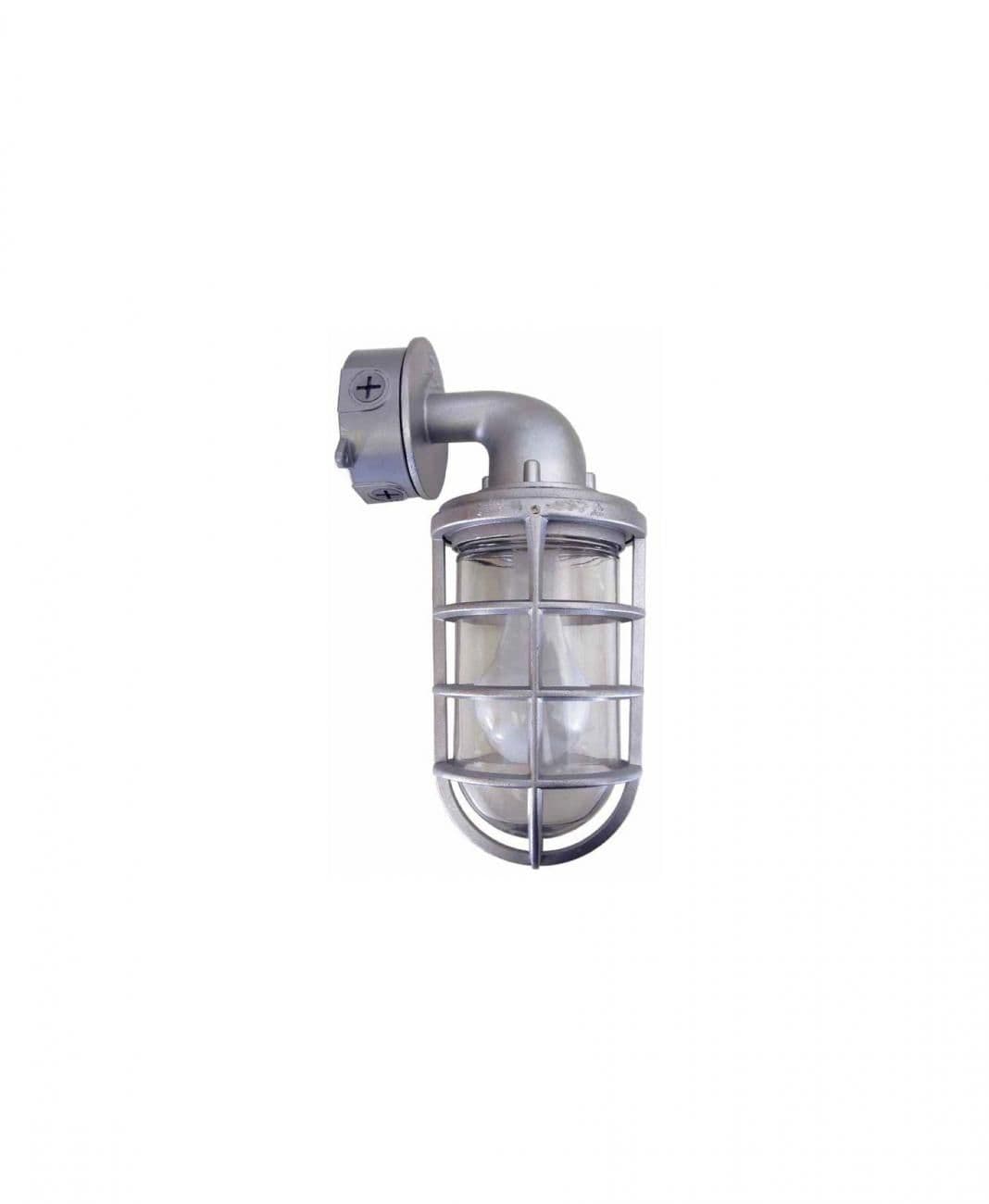

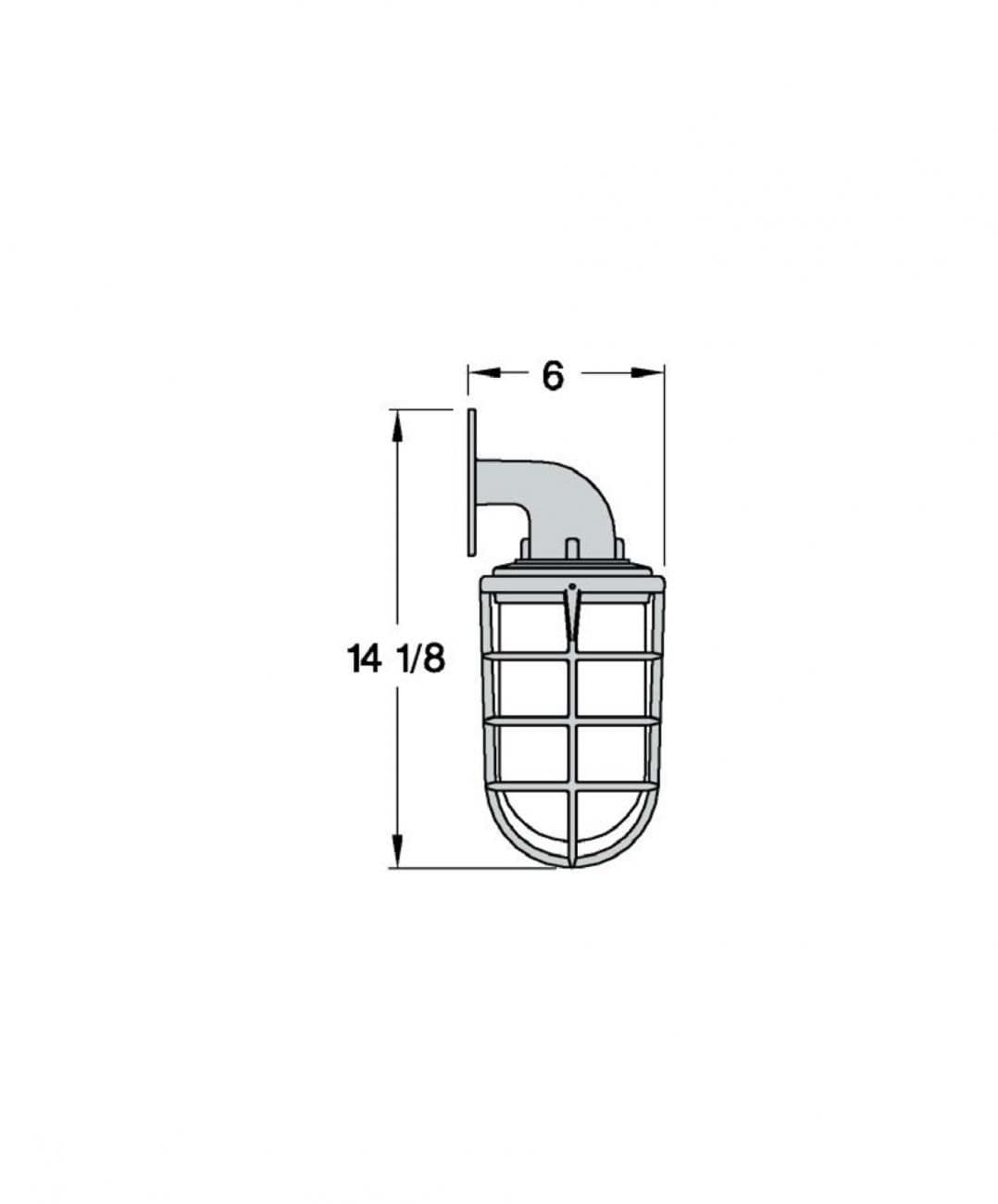

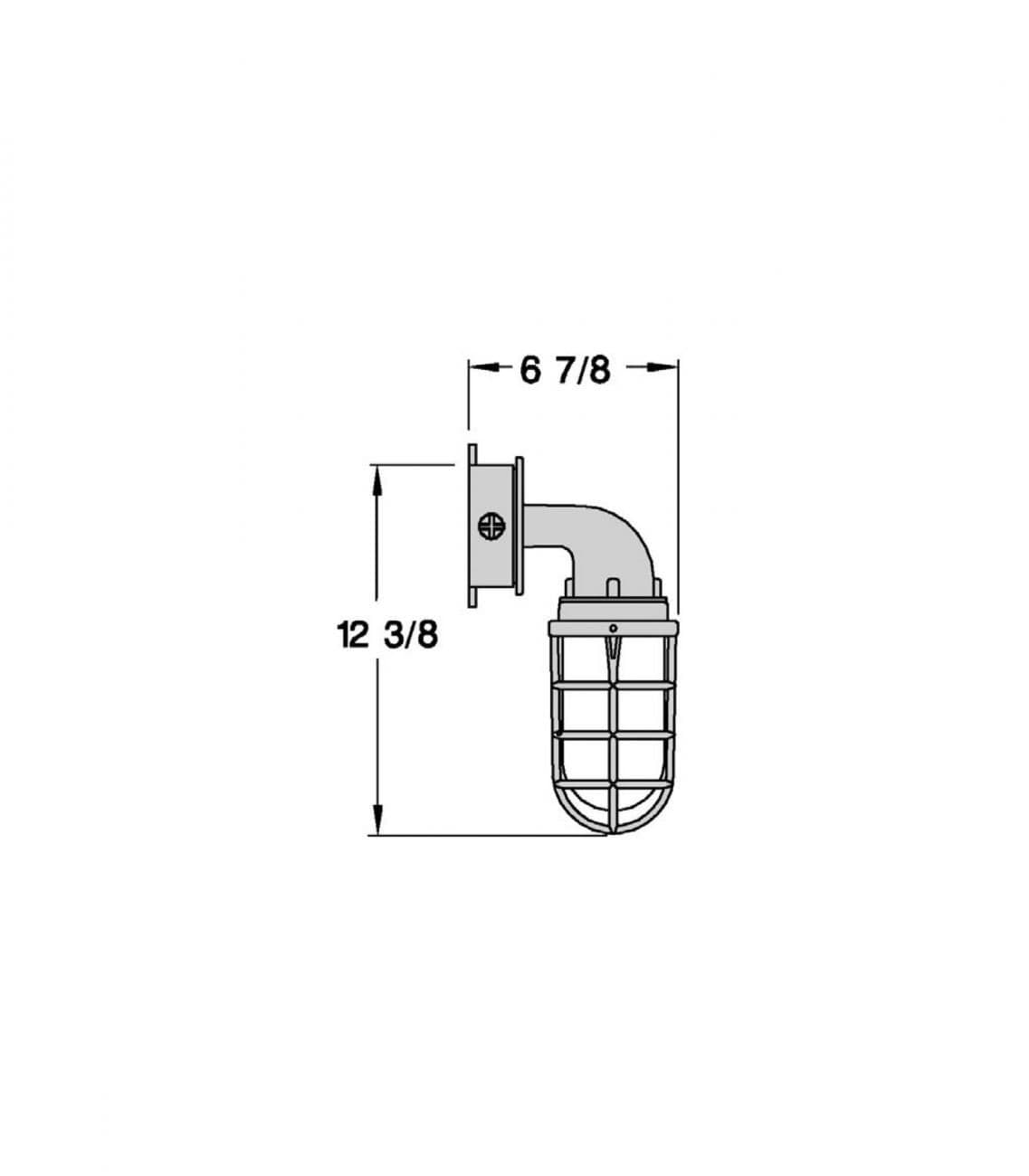

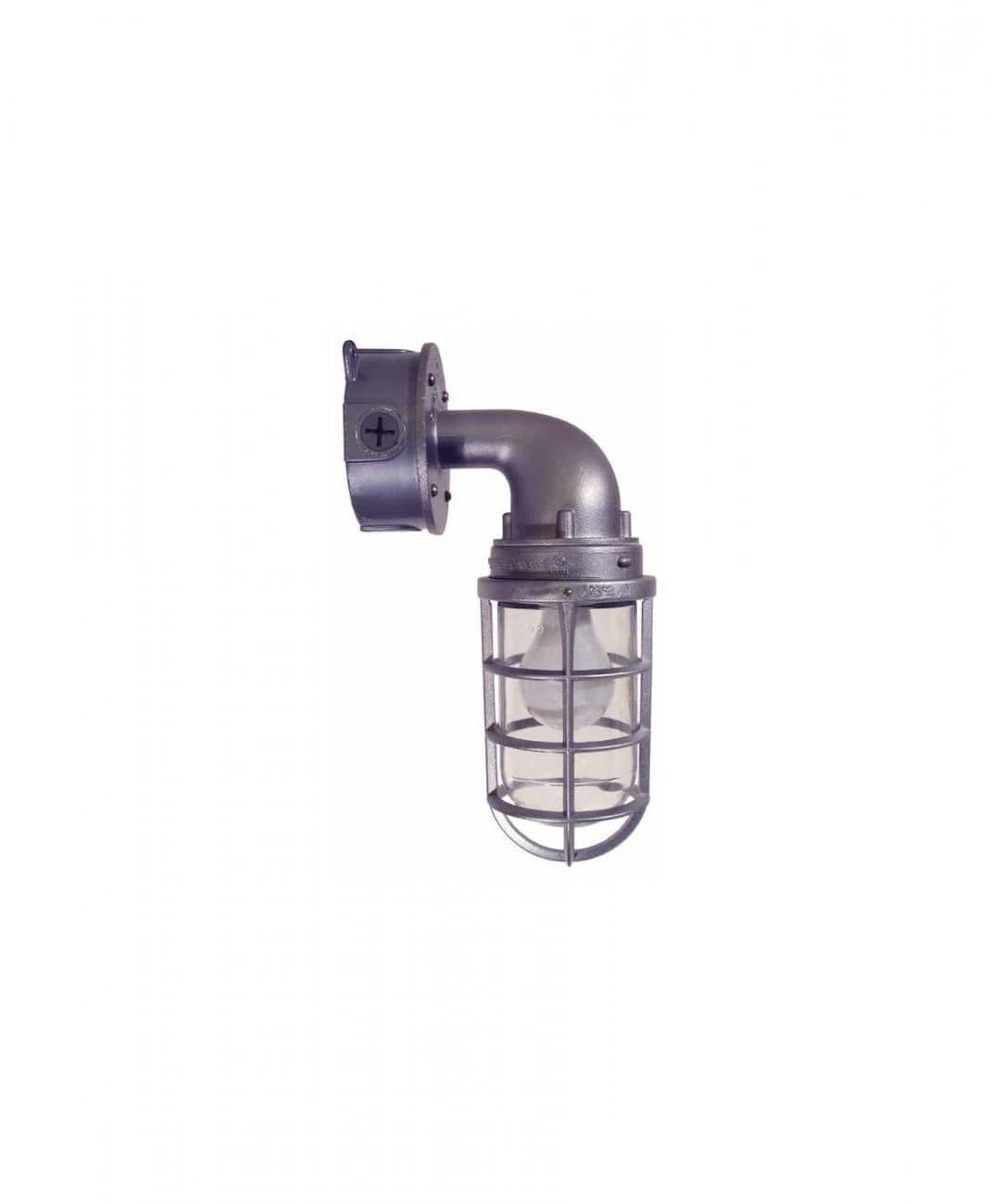

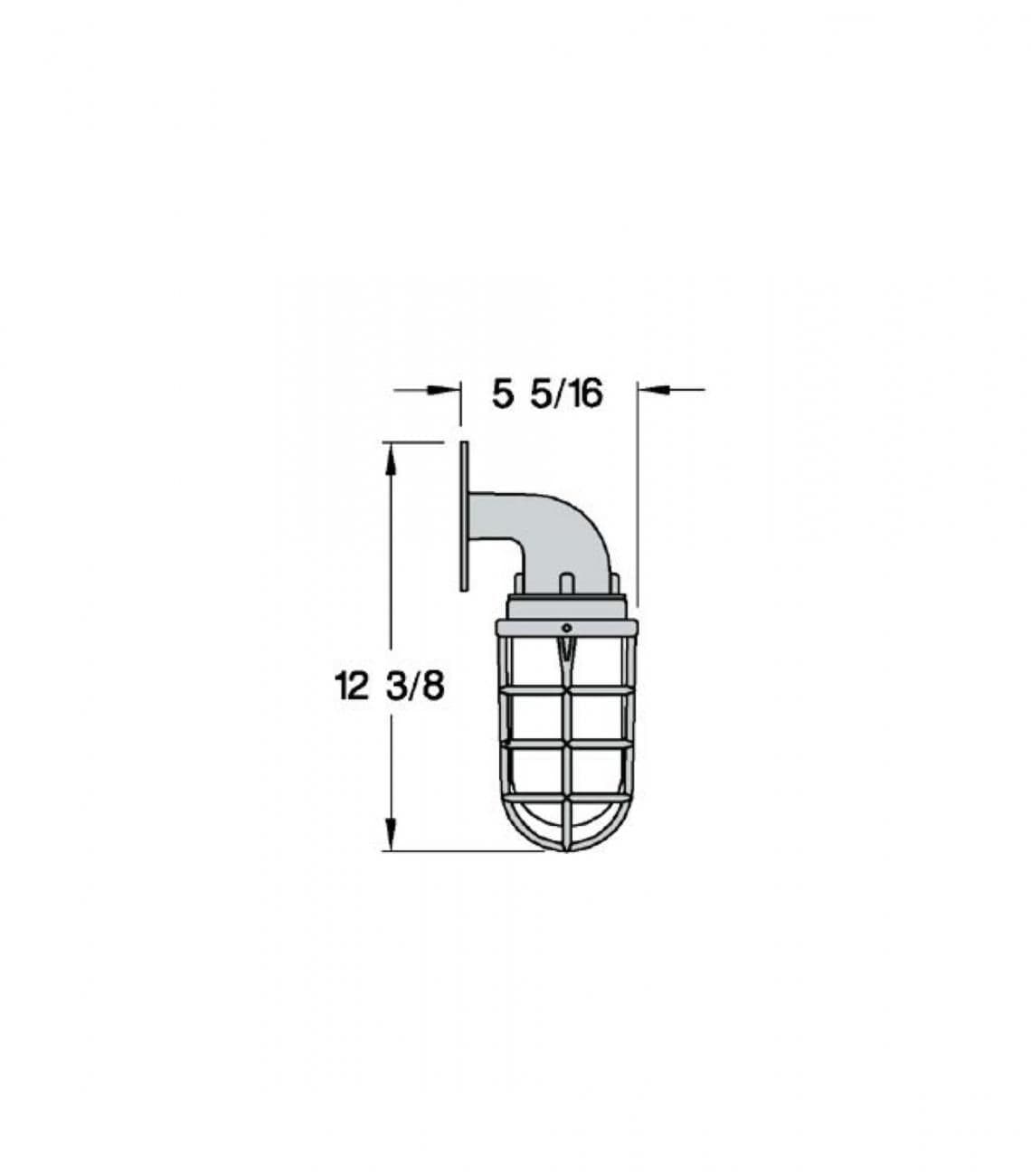

HOUSING CONSTRUCTION: Wall mount type with optional heavy duty
die-cast aluminum junction box, tapped 1/2” or 3/4”. Die-cast threaded
aluminum globe fitter assembly with exterior threads for optional die-cast
aluminum screw-on guard.
FINISH: Standard finish is textured natural aluminum. Optional powder
coat finishes are available at an additional cost. See ordering guide for
complete list of finishes.
GUARD: Threaded, die-cast aluminum with stainless steel, headless hex
type set-screw.
GLOBE: Threaded for easy lamp replacement. Standard globe is clear
glass. Optional glass globes include prismatic, opal, blue, green, amber
or red. Lexan globes in clear or colors are also available. Cast guard
option is not available with Lexan globes. See ordering guide for
complete list of globes.
SOCKET: Standard units include a medium base, glazed porcelain, 4KV
pulse rated lamp holder with nickel plated screw shell and spring loaded
center contact. Compact fluorescent ballast option includes a
GX24Q-3 / GX24Q-4 universal 4-pin socket for 26, 32 or 42 watt triple
tube lamps.
HARDWARE: All fasteners are stainless steel.
GASKETS: Memory retentive, die-cut silicone for superior sealing and heat
resistance.
APPROVALS: Listed with Underwriter’s Laboratories for
WET LOCATIONS. C-UL Listed for Canada.
BAA/BABA: Please add either BAA or BABA to end of part number if job requires.
