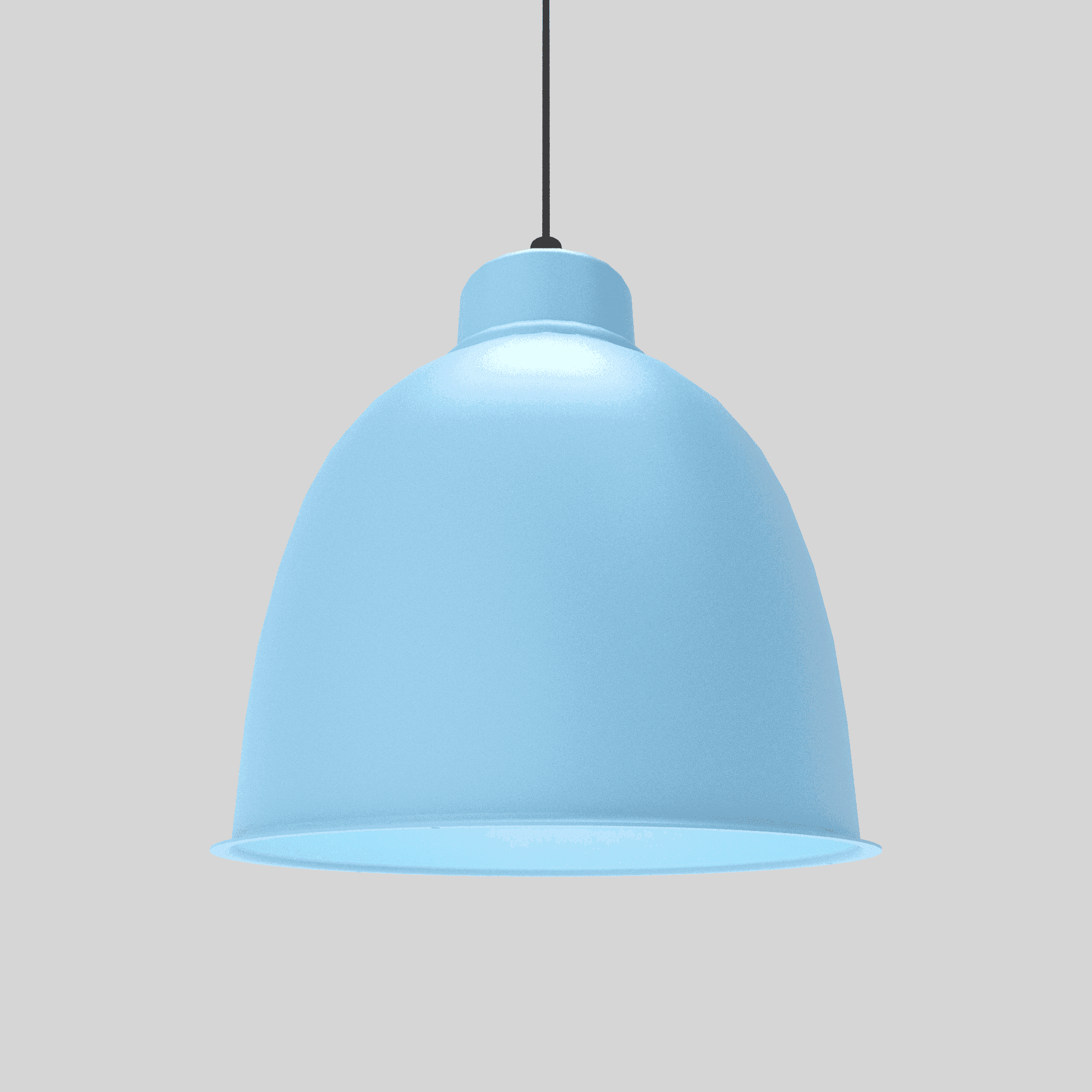

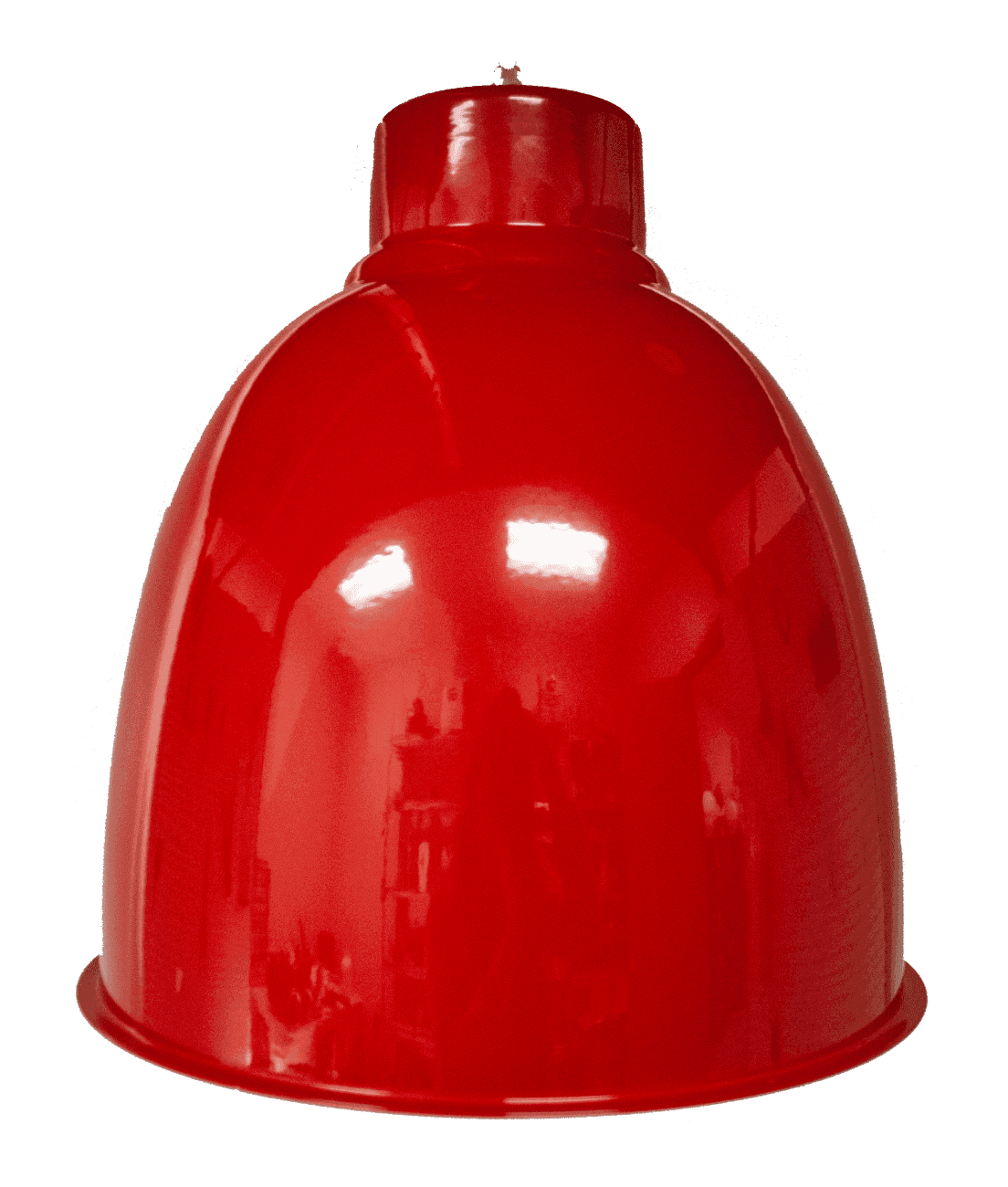

The AE Series provides an efficient light source without compromising decorative appeal. This fixture combines industrial style, functionality, and decorative design to produce versatility for any large indoor application.

Concept
Reflector: 12” & 16” Aluminum Spinning
Mounting: Cord in Silicone, Black or White. Stem 1/2” or 3/4”. Gooseneck with top mounting. See RLM catalog for more mounting options. Ballast Enclosure Integral.
Certification: cULus, Dry Location
BAA/BABA: Please add either BAA or BABA to end of part number if job requires.

Finish
In = iXX Ext = eXX
G0 = Black G1 = White G7 = Verdigris G8 = Dark Bronze G9 = Silver G11 = Copper G12 = Brushed Aluminum G16 = Silver Wrinkle R* = RAL Color
More color options available on the Bock Lighting website. http://bock.lighting/colors

Lamp Type
MED = Medium Base E26, 60W Max
GU24 = GU24, 32W Max
LVG02-(W)-(K) = Cree CXA LED with ERP Driver, 120V Only, 80CRI
    9W, 950LM, 27/30/35/40K
    13W, 1,400LM, 27/30/35/40K
LBA01-(M)-(LM)-(K) = LBA01 Module, Cree LEDs, 120-277V, 0-10V Dimming
    1 Module M=1 = LM=850(8W)/1250(11W)/2000(19W)/3000(29W)LM, K=27/30/35/40K
    2 Module M=2 = LM=850(16W)/1250(22W)/2000(38W)/3000(58W)LM, K=27/30/35/40K
G24Q(26/32/42) = Triple-Tube 4-Pin Fluorescent, Universal Voltage

Lens
4GL-PA12 = Glass with U-Band
XGL-G123SO = Glass with 3 Standoffs.
4GL-PA16 = Glass with U-Band
XGL-G163SO = Glass with 3 Standoffs.
