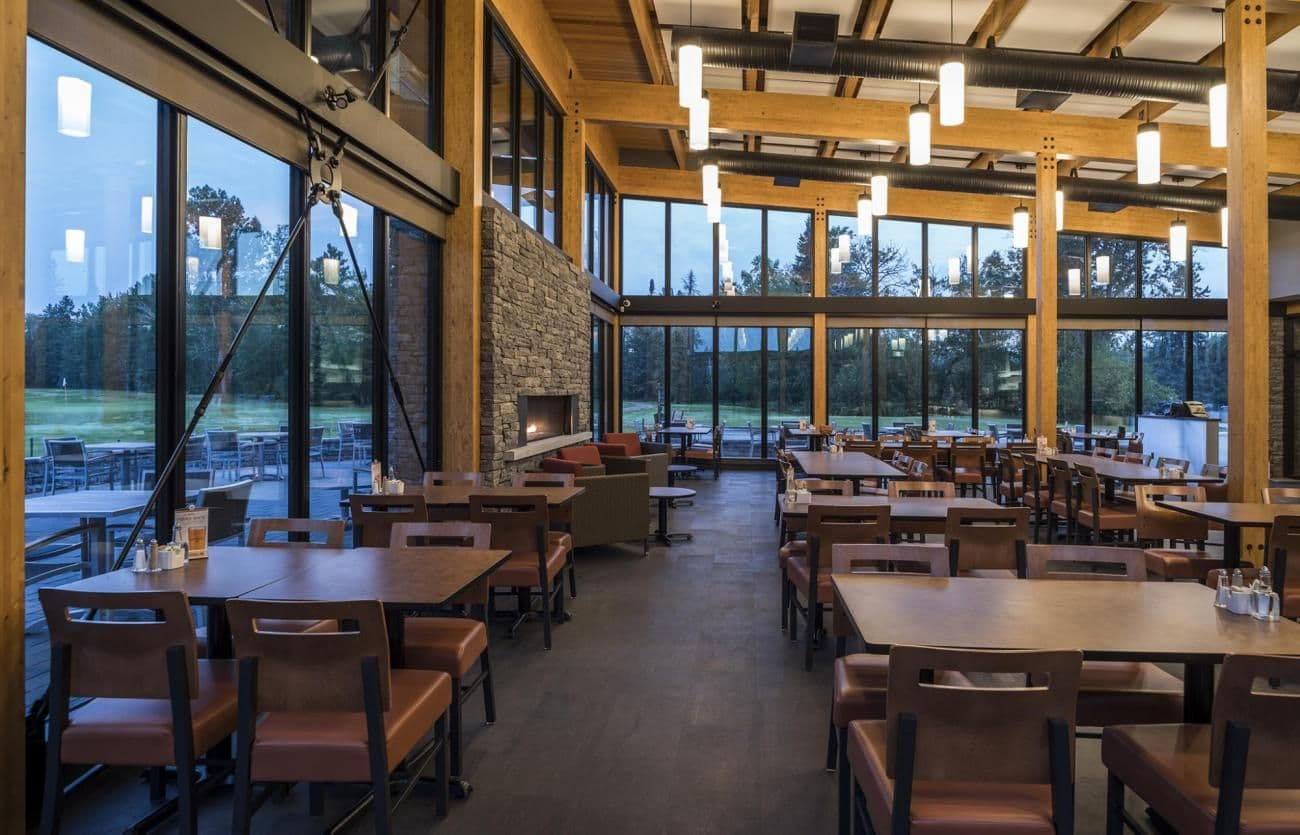

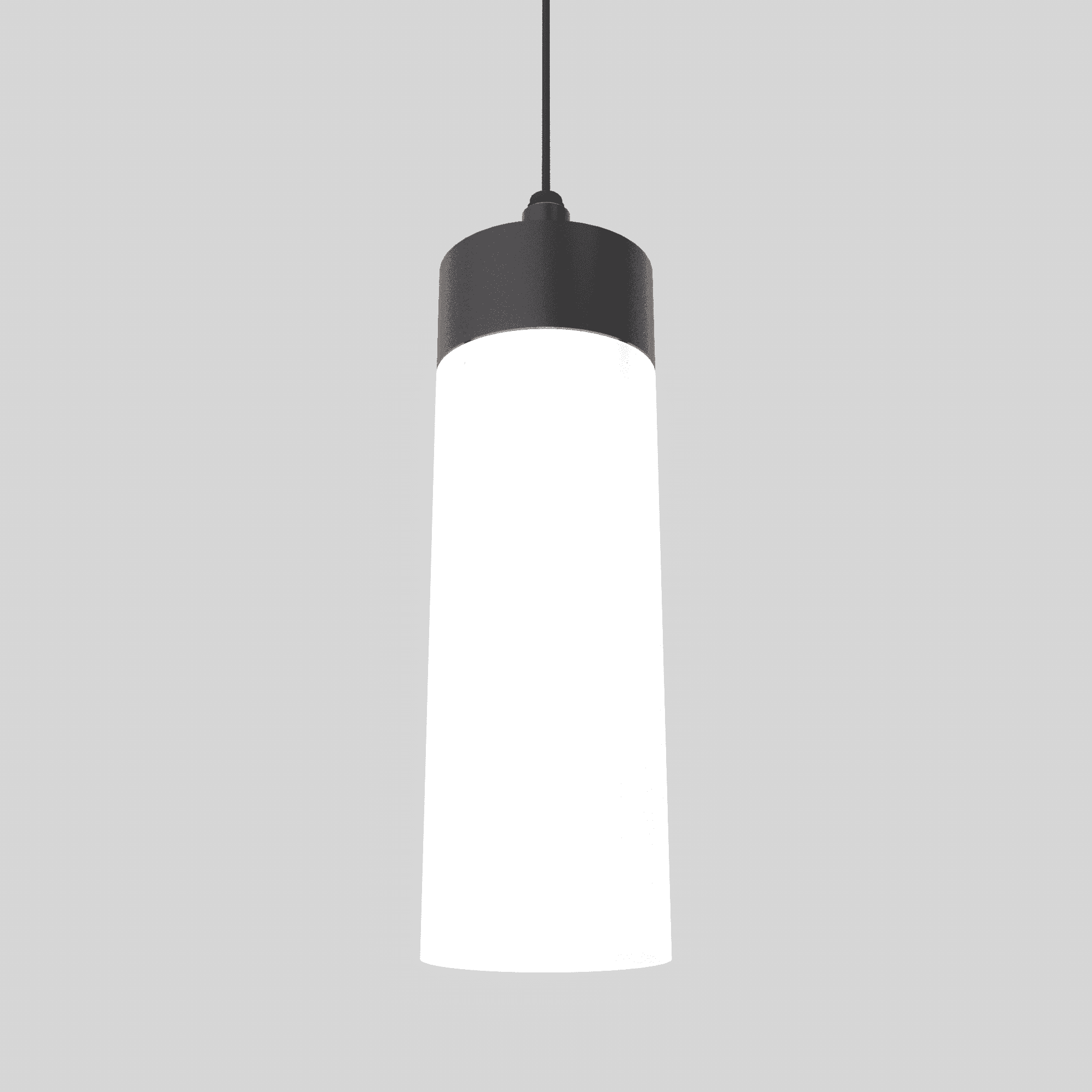

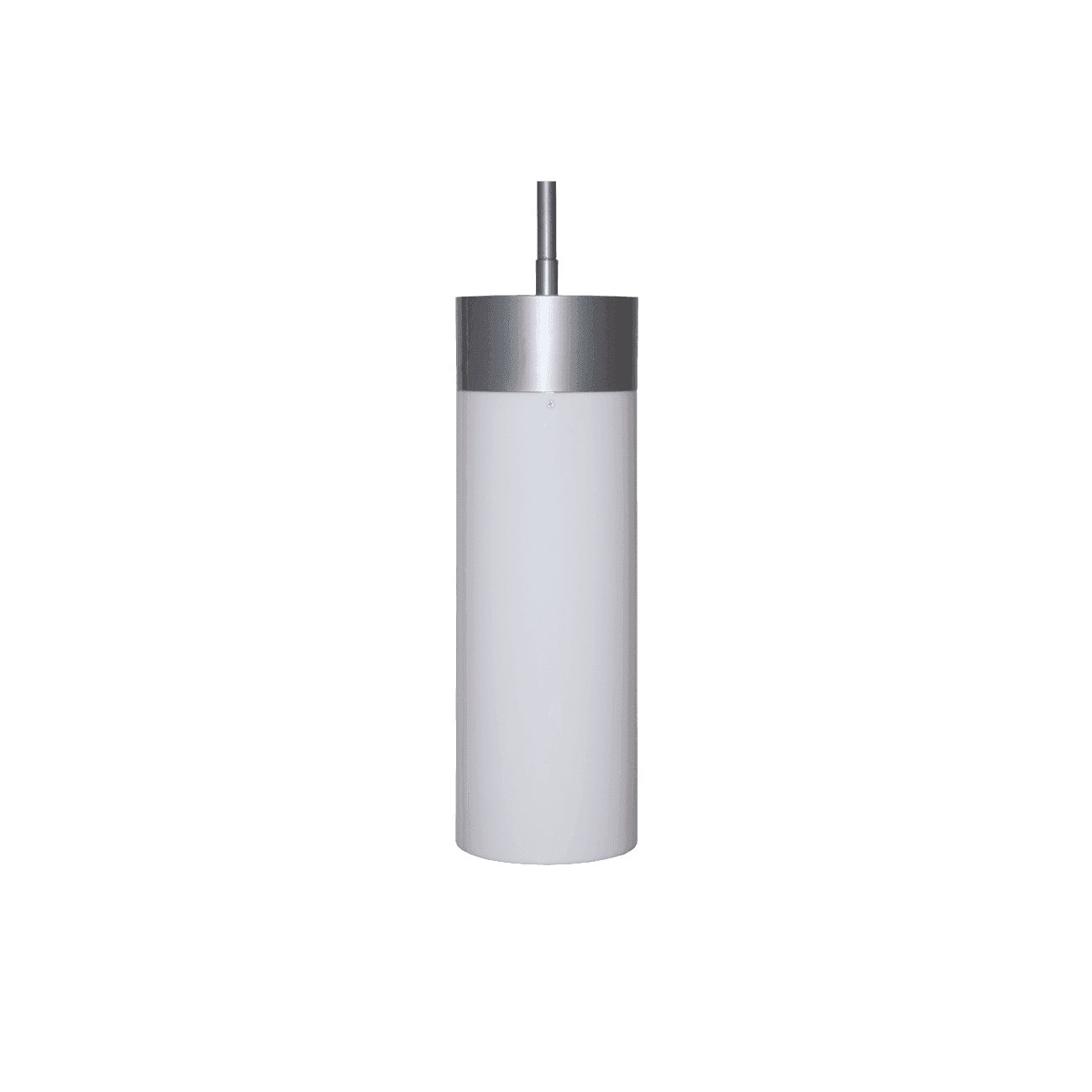

The ACP is a cylindrical pendant complete with an aluminum top ceiling mount. The ACP hangs for a sophisticated look in indoor spaces such as restaurants or event venues.
Concept
Cast Acrylic Cylinder Pendant with cylinder aluminum top.
Mounting: 1/2-NPT
Certification: cULus for Damp Locations
BAA/BABA: Please add either BAA or BABA to end of part number if job requires.

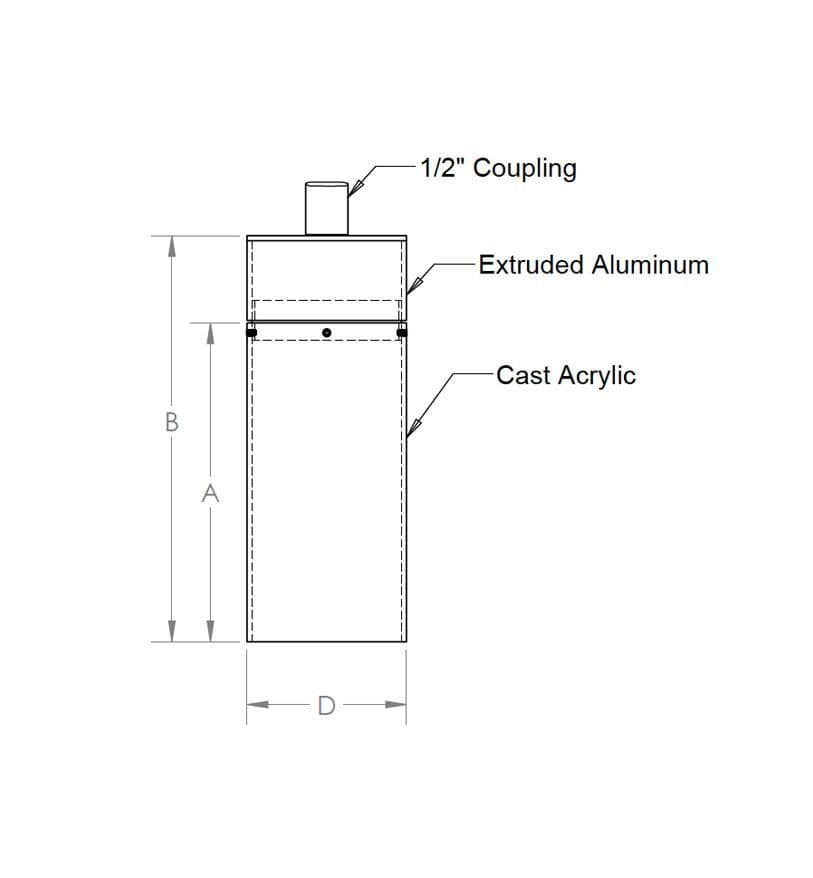

Shade
4in Diameter
ACP410 A=10in, B=12in
ACP408 A=8in, B=10in
ACP406 A=6in, B=8in
ACP404 A=4in, B=6in
6in Diameter
ACP615 A=15in, B=18in
ACP612 A=12in, B=15in
ACP609 A=9in, B=12in
ACP606 A=6in, B=9in
8in Diameter
ACP820 A=20in, B=24in
ACP816 A=16in, B=20in
ACP812 A=12in, B=16in
ACP808 A=8in, B=12in

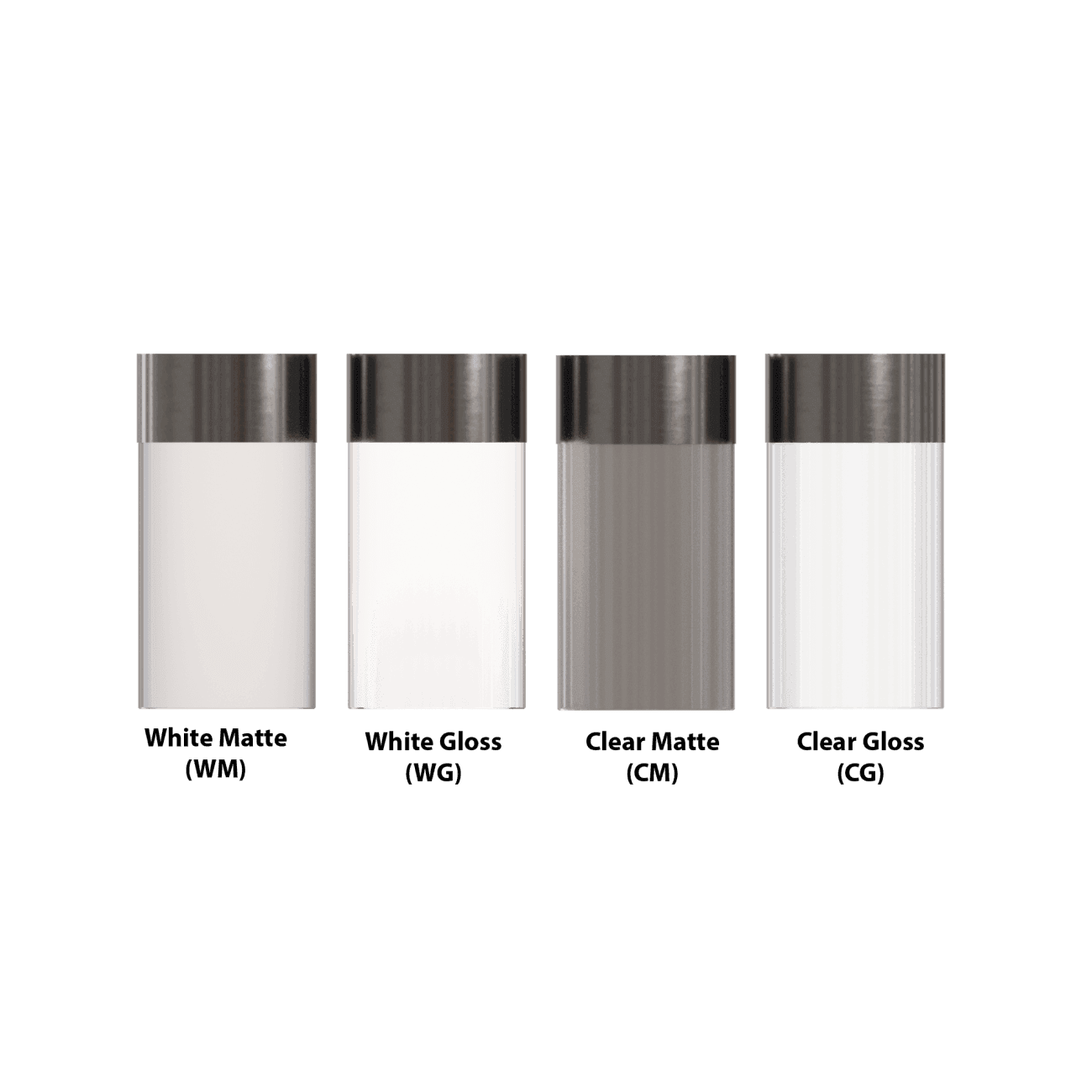

Acrylic Finish
Clear Gloss (CG)
White Gloss (WG)
Clear Matte (CM)
White Matte (WM)
Finish
G0 = Black
G1 = White
G12 = Brushed Aluminum
Lamp Type
MED = Medium Base E26, 60W Max
GU24 = GU24, 32W Max
LBA01-(M)-(LM)-(K) = LBA01 Module, Cree LEDs, 120-277V, 0-10V Dimming
1 Module M=1 = LM=850(8W)/1250(11W)/2000(19W)/3000(29W)LM, K=27/30/35/40K
2 Module M=2 = LM=850(16W)/1250(22W)/2000(38W)/3000(58W)LM, K=27/30/35/40K 8in Only
G24Q(26/32/42) = Triple-Tube 4-Pin Fluorescent, Universal Voltage
Mounting / Driver
643-10ft Cord with canopy.
640-2 Stem Canopy for 1/2-NPT ST2-(6/12/18/24/36/48) Stem 1/2-NPT
BCC6C(BK/WH) = 10ft of cord with Driver canopy.
BCC6S-2 = Driver for stems. ST2-(6/12/18/24/36/48) Stem 1/2-NPT
642-2 = Aligner + Canopy
