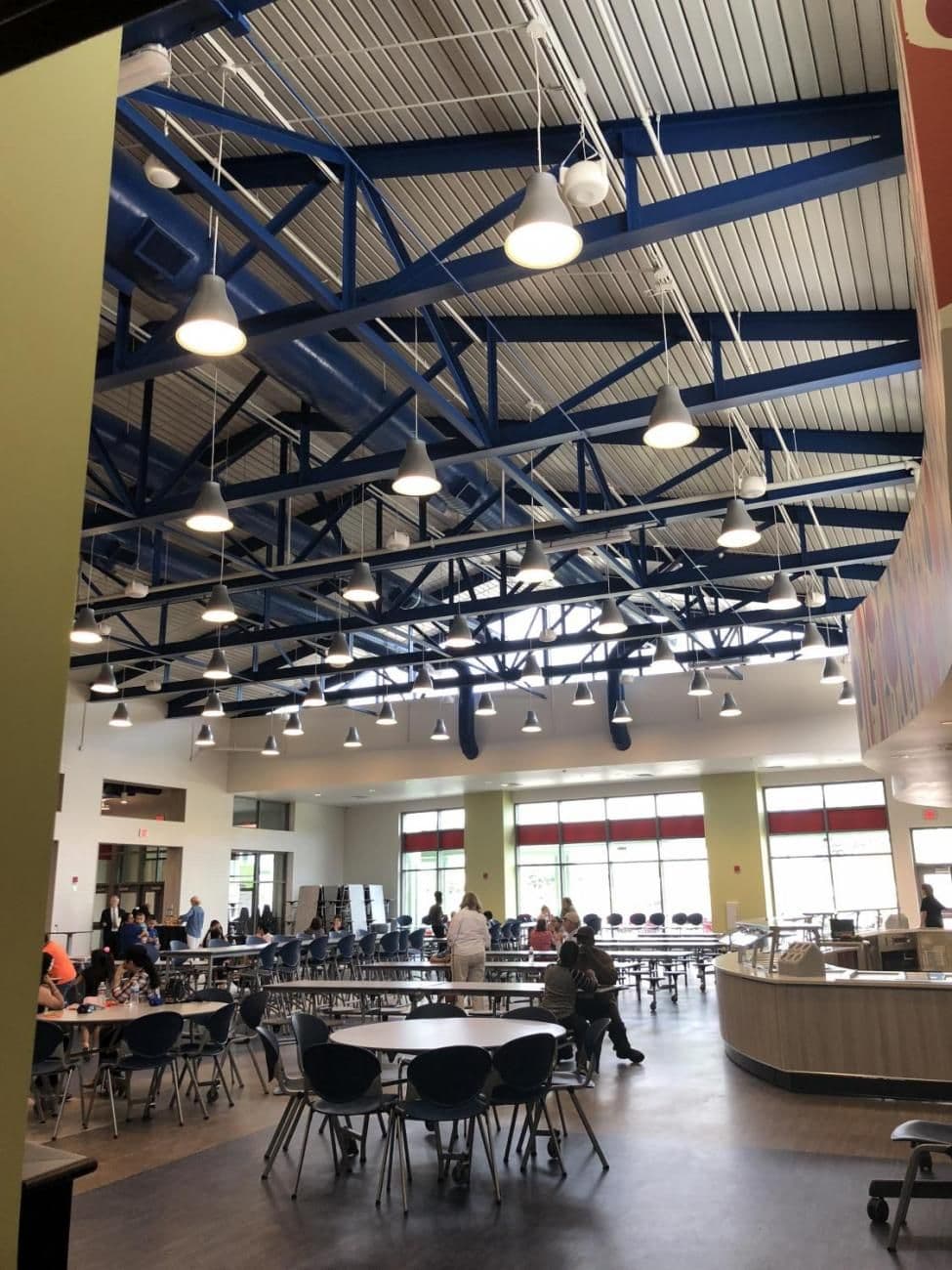

The AA is a popular pendant that delivers an industrial, yet decorative design. The aluminum spun finish gives it an industrial look, and the glass detailing adds a decorative feel. This fixture looks great in large indoor spaces such as showrooms or cafeterias.
Concept

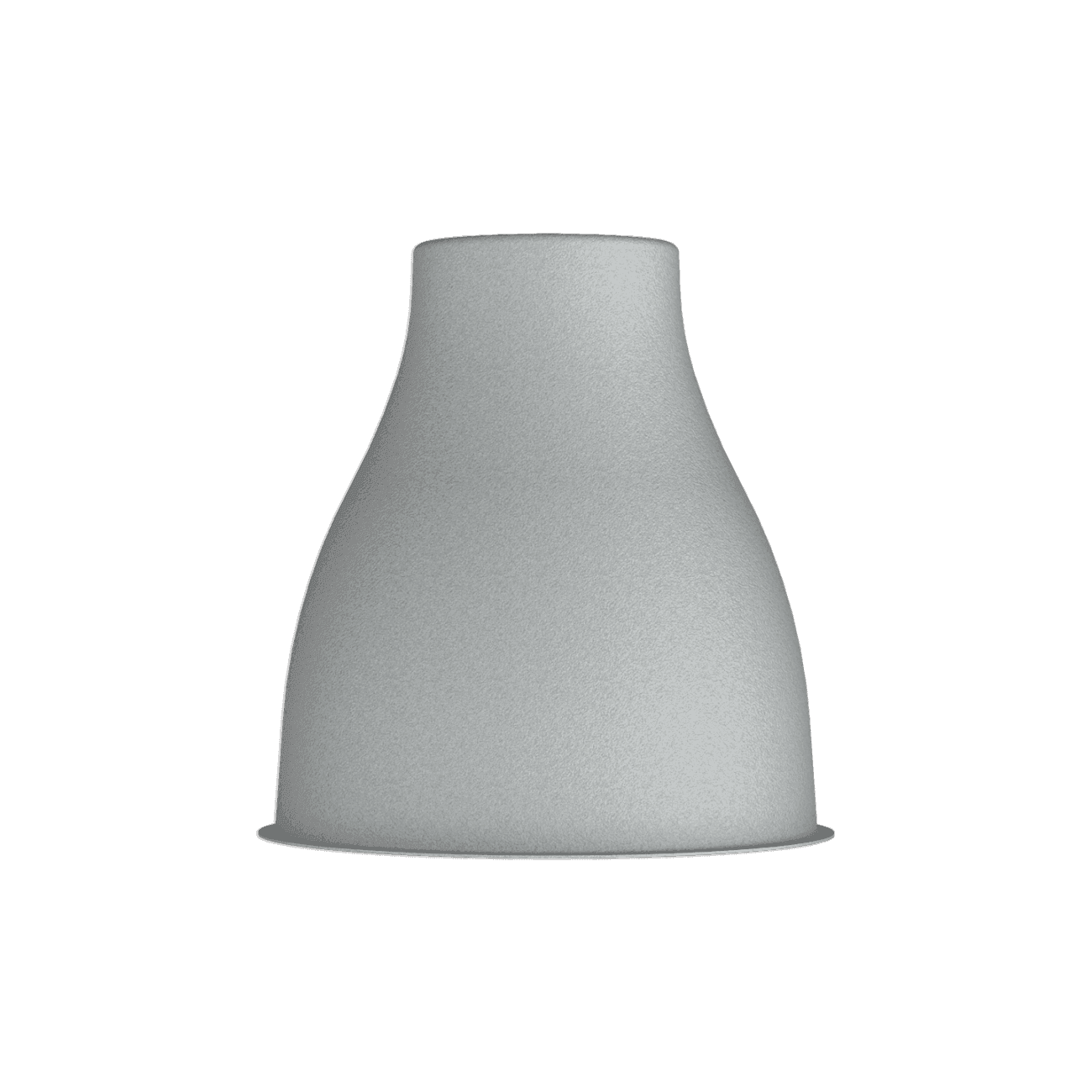

Reflector: 12” & 16” Aluminum Spinning
Mounting: Cord in Silicone, Black or White. Stem 1/2” or 3/4”. Gooseneck with top mounting. See RLM catalog for more mounting options. Ballast Enclosure Integral.
Certification: cULus, Dry Location
BAA/BABA: Please add either BAA or BABA to end of part number if job requires.
Finish
In = iXX Ext = eXX
G0 = Black G1 = White G7 = Verdigris G8 = Dark Bronze G9 = Silver G11 = Copper G12 = Brushed Aluminum G16 = Silver Wrinkle R* = RAL Color
More color options available on the Bock Lighting website. http://bock.lighting/colors
Lamp Type
MED = Medium Base E26, 60W Max
GU24 = GU24, 32W Max
LVG02-(W)-(K) = Cree CXA LED with ERP Driver, 120V Only, 80CRI
9W, 950LM, 27/30/35/40K
13W, 1,400LM, 27/30/35/40K
LBA01-(M)-(LM)-(K) = LBA01 Module, Cree LEDs, 120-277V, 0-10V Dimming
1 Module M=1 = LM=850(8W)/1250(11W)/2000(19W)/3000(29W)LM, K=27/30/35/40K
2 Module M=2 = LM=850(16W)/1250(22W)/2000(38W)/3000(58W)LM, K=27/30/35/40K
G24Q(26/32/42) = Triple-Tube 4-Pin Fluorescent, Universal Voltage
Lens
4GL-PA12 = Glass with U-Band
XGL-G123SO = Glass with 3 Standoffs.
4GL-PA16 = Glass with U-Band
XGL-G163SO = Glass with 3 Standoffs.
