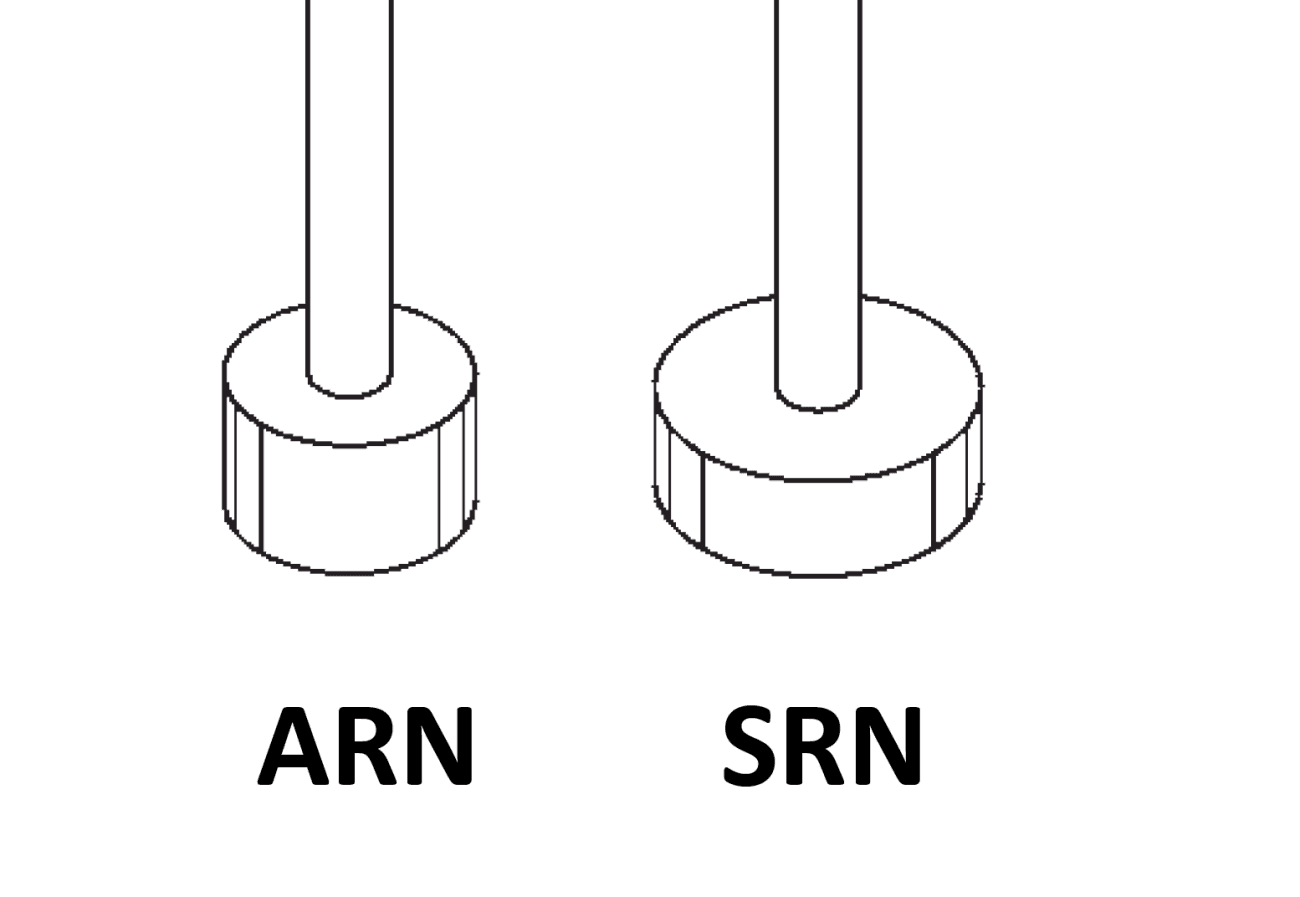

ARN SERIES POLES:
Round Aluminum Poles accept all reflector pole top brackets. Available 8’, 10’, 12’, and 14’, high in either .125” or .188” wall shaft. Pole top 3” O.D.

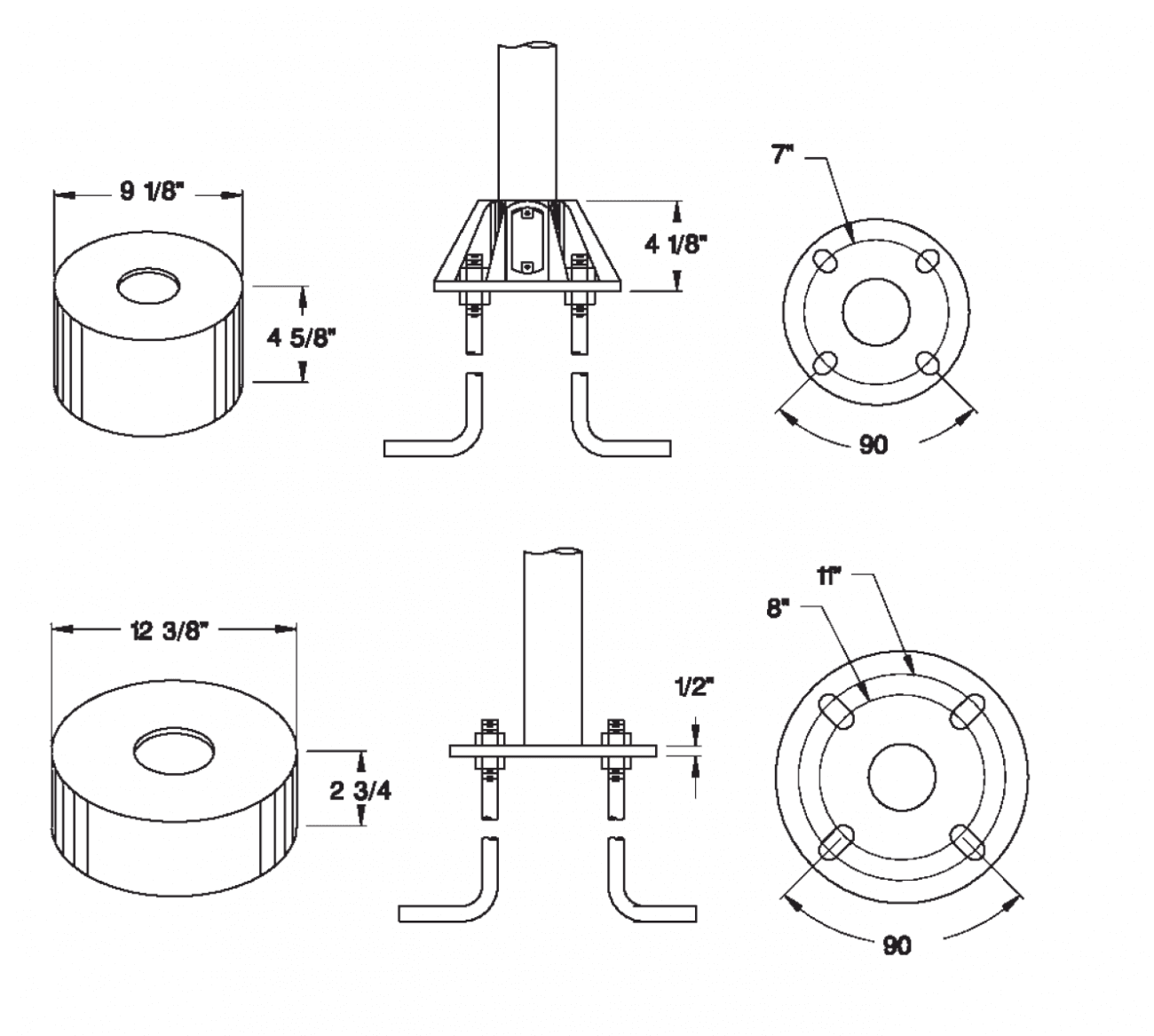

Bolt Projection: 1-1/4”-13/4”
Bolt Circle: 7” Bolt Size: 3/4”X15”
SRN SERIES POLES:
Round Steel Poles accept all reflector pole top brackets. Available 8’, 10’, 12’, 14’, and 16’, high. All shafts are 7 gage steel. Pole top 2-7/8” O.D.
Bolt Projection: 1-1/4”-2-1/2”
Bolt Circle: 8”-11”
Bolt Size: 3/4”X15”
Aluminum & Steel Round Pole
Round Aluminum Poles accept all reflector pole top brackets. Available 8’, 10’, 12’, and 14’, high in either .125” or .188” wall shaft. Pole top 3” O.D. Bolt
ARN SERIES POLES:
Round Aluminum Poles accept all reflector pole top brackets. Available 8’, 10’, 12’, and 14’, high in either .125” or .188” wall shaft. Pole top 3” O.D.
Bolt Projection: 1-1/4”-13/4”
Bolt Circle: 7” Bolt Size: 3/4”X15”
SRN SERIES POLES:
Round Steel Poles accept all reflector pole top brackets. Available 8’, 10’, 12’, 14’, and 16’, high. All shafts are 7 gage steel. Pole top 2-7/8” O.D.
Bolt Projection: 1-1/4”-2-1/2”
Bolt Circle: 8”-11”
Bolt Size: 3/4”X15”
