WFD

Home/Catalog/WFD
ConfiguratorDetailsPhotosProduct Files
Old
Product view 1
Product view 1
Product view 2
Product view 3
Product view 4

WFD

WFD

Application: Wall Mounted System for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities
Material: Heavy duty die-cast aluminum housing
Lamp Type: Type IV -  Integral LED, 120-277v, 80 CRI
                     Small/SM LED17W: 3/4/5K, 2,326 LM
                     Small/SM LED25W: 3/4/5K, 3,424 LM
                     Small/SM LED37W: 3/4/5K, 4,604 LM
                     Small/SM LED81W: 3/4/5K, 9,278 LM

                     Large/LG LED81W: 4/5K, 10,402LM
                     Large/LG LED112W: 4/5K, 14,049LM
                     Large/LG LED174W: 4/5K, 20,704LM

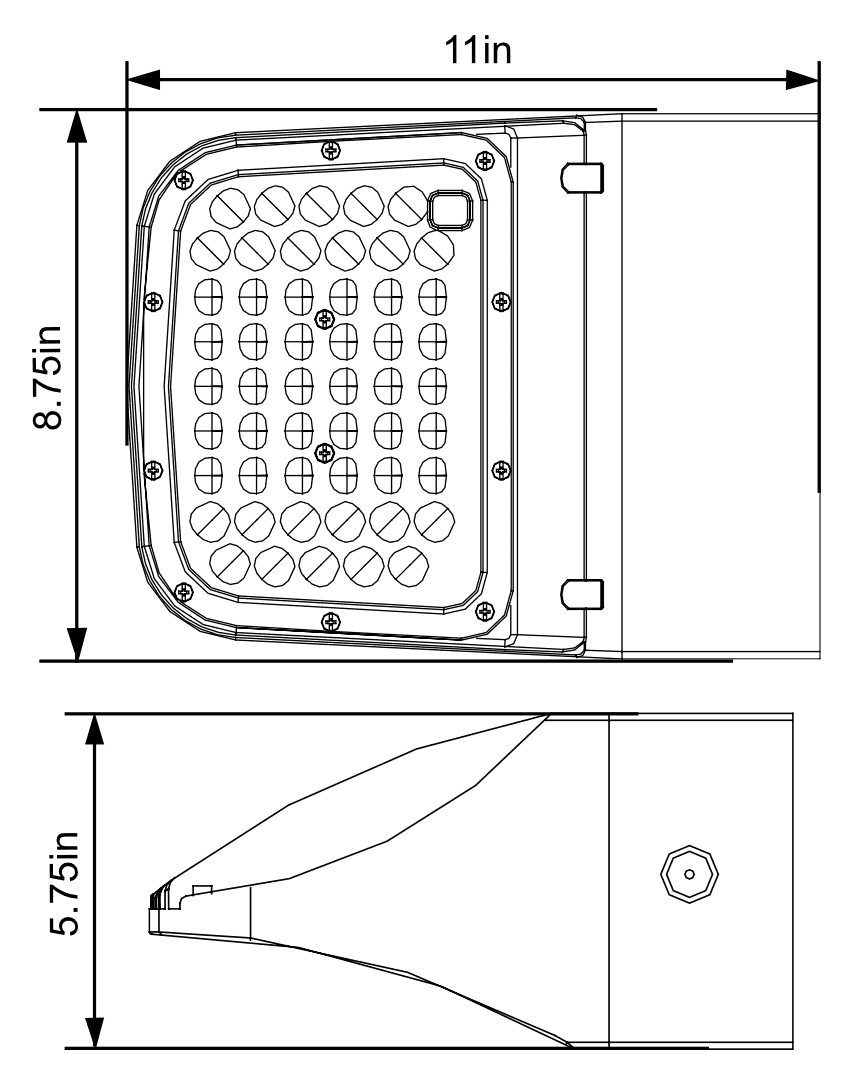

Dimensions: SM: L: 11in W: 8.75in H: 5.75in

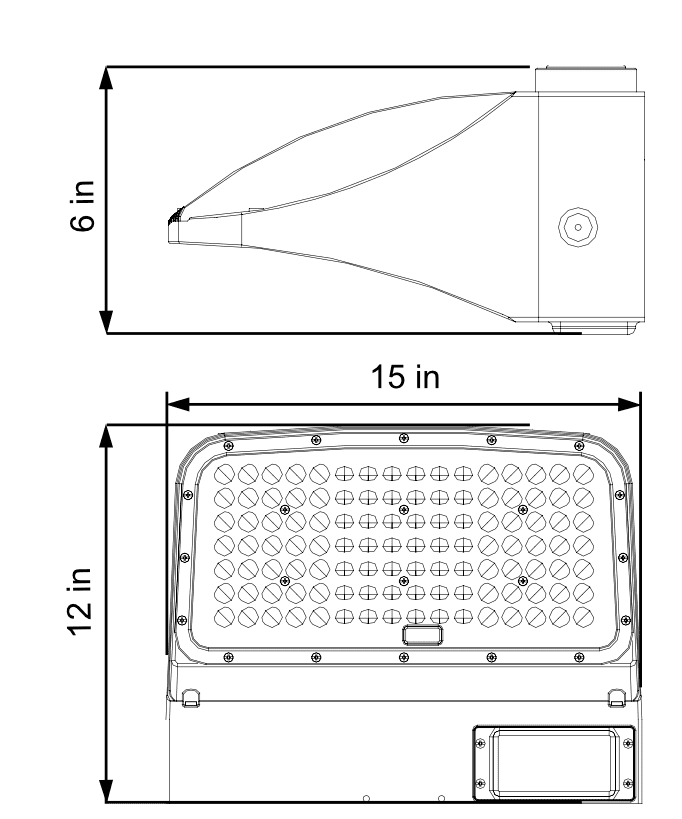

                       LG: L: 12in W: 15in H: 6in
Mounting: Surface Mount
Finish: Bronze Powder Coat
Listing: ETL for Wet Locations

WFD

WFD

Product view 1
Product view 1
Product view 2
Product view 3
Product view 4

Application: Wall Mounted System for Retail Centers, Industrial Parks, Schools, Universities, Airports, Medical Facilities
Material: Heavy duty die-cast aluminum housing
Lamp Type: Type IV -  Integral LED, 120-277v, 80 CRI
                     Small/SM LED17W: 3/4/5K, 2,326 LM
                     Small/SM LED25W: 3/4/5K, 3,424 LM
                     Small/SM LED37W: 3/4/5K, 4,604 LM
                     Small/SM LED81W: 3/4/5K, 9,278 LM

                     Large/LG LED81W: 4/5K, 10,402LM
                     Large/LG LED112W: 4/5K, 14,049LM
                     Large/LG LED174W: 4/5K, 20,704LM

Dimensions: SM: L: 11in W: 8.75in H: 5.75in
                       LG: L: 12in W: 15in H: 6in
Mounting: Surface Mount
Finish: Bronze Powder Coat
Listing: ETL for Wet Locations
