APPLICATION: Approved for use in all indoor and outdoor locations exposed

to moisture and rain, corrosive fumes, non-explosive vapors and gases or

non-combustible dusts. Vapor tight and rain tight. For mounting to a 1-1/4”

(1.660” O. D. ) pipe. Held with 3/8” hex head set screw.

LIGHT SOURCE: Standard incandescent fixture for medium base “A” lamp.

Fixtures can be equipped with an optional ballast housing for up to 42

watt compact fluorescent or 150 watt metal halide or high pressure sodium.

See ballast option on page 12

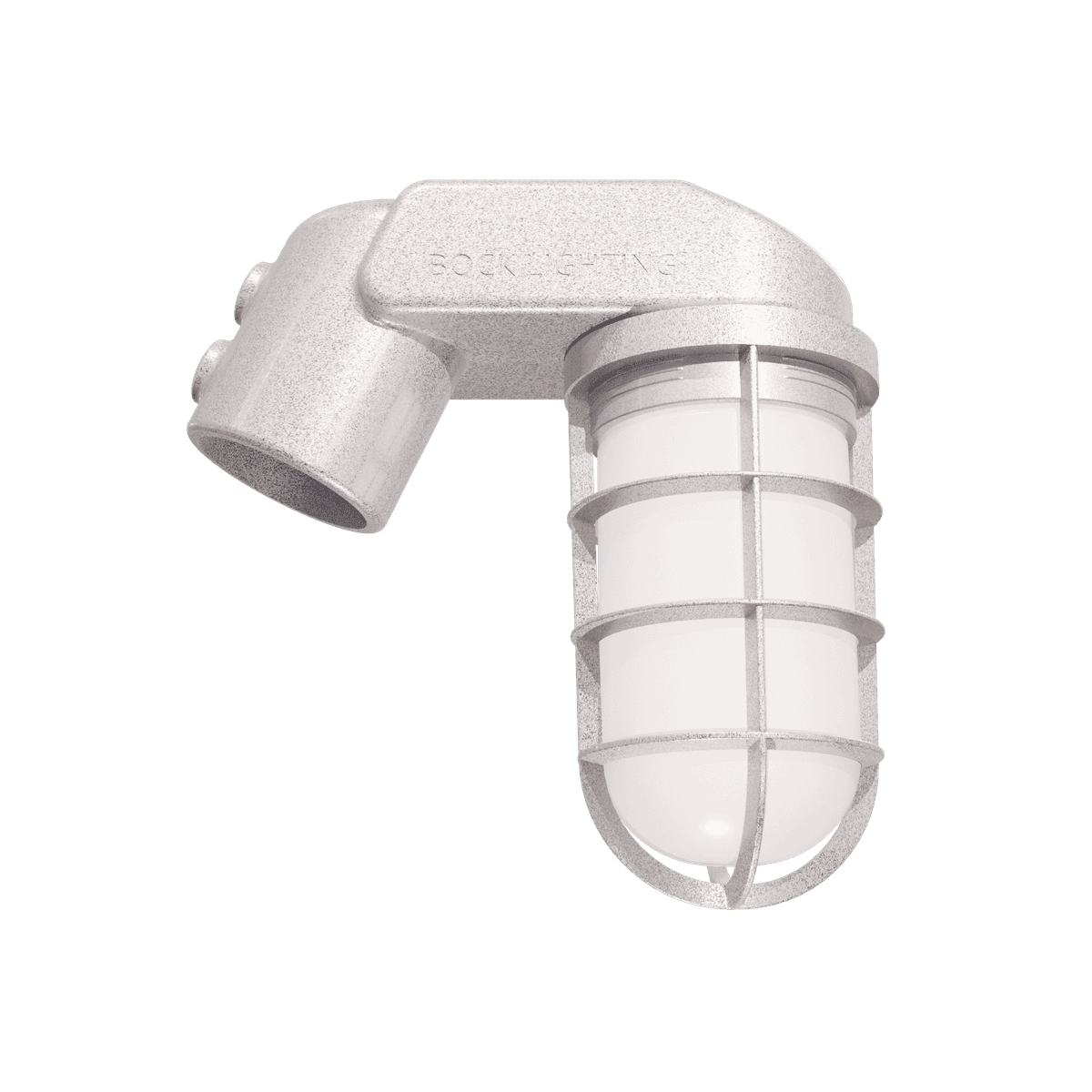

HOUSING CONSTRUCTION: Stanchion type with heavy cast aluminum slip

fitter. Die-cast threaded aluminum globe fitter assembly with exterior threads for

optional die-cast aluminum screw-on guard.

FINISH: Standard finish is textured natural aluminum. Optional powder coat

finishes are available at an additional cost. See ordering guide for complete

list of finishes.

GUARD: Threaded, die-cast aluminum with stainless steel, headless hex

type set-screw.

GLOBE: Threaded for easy lamp replacement. Standard globe is clear

glass. Optional glass globes include prismatic, opal, blue, green, amber or

red. Lexan globes in clear or colors are also available. Cast guard option

is not available with Lexan globes. See ordering guide for complete list of

globes.

SOCKET: Standard units include a medium base, glazed porcelain, 4KV

pulse rated lamp holder with nickel plated screw shell and spring loaded center

contact. Compact fluorescent ballast option includes GX24Q-3 / GX24Q-4

universal 4-pin socket for 26, 32 or 42 watt triple tube lamps.

HARDWARE: All fasteners are stainless steel.

GASKETS: Memory retentive, die-cut silicone for superior sealing and heat

resistance.

APPROVALS: Listed with Underwriter’s Laboratories for

WET LOCATIONS. C-UL Listed for Canada.

BAA/BABA: Please add either BAA or BABA to end of part number if job requires.
