APPLICATION: Approved for use in all indoor and outdoor locations
exposed to moisture and rain, corrosive fumes, non-explosive vapors and
gases or non-combustible dusts. Vapor tight and rain tight. May be

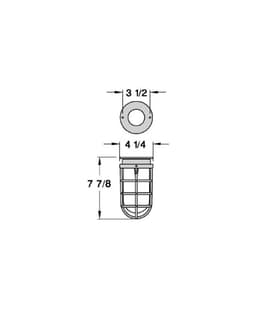

mounted directly to a surface mounted or recessed outlet box with 3-1/2”
centers.
LIGHT SOURCE: Standard incandescent fixture for medium base “A” lamp.
Fixtures can be equipped with an optional ballast housing for up to 42
watt compact fluorescent or 150 watt metal halide or high pressure sodium.

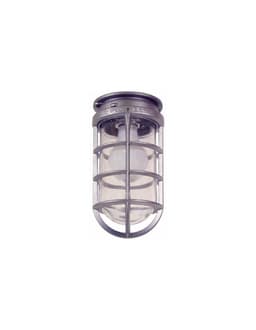

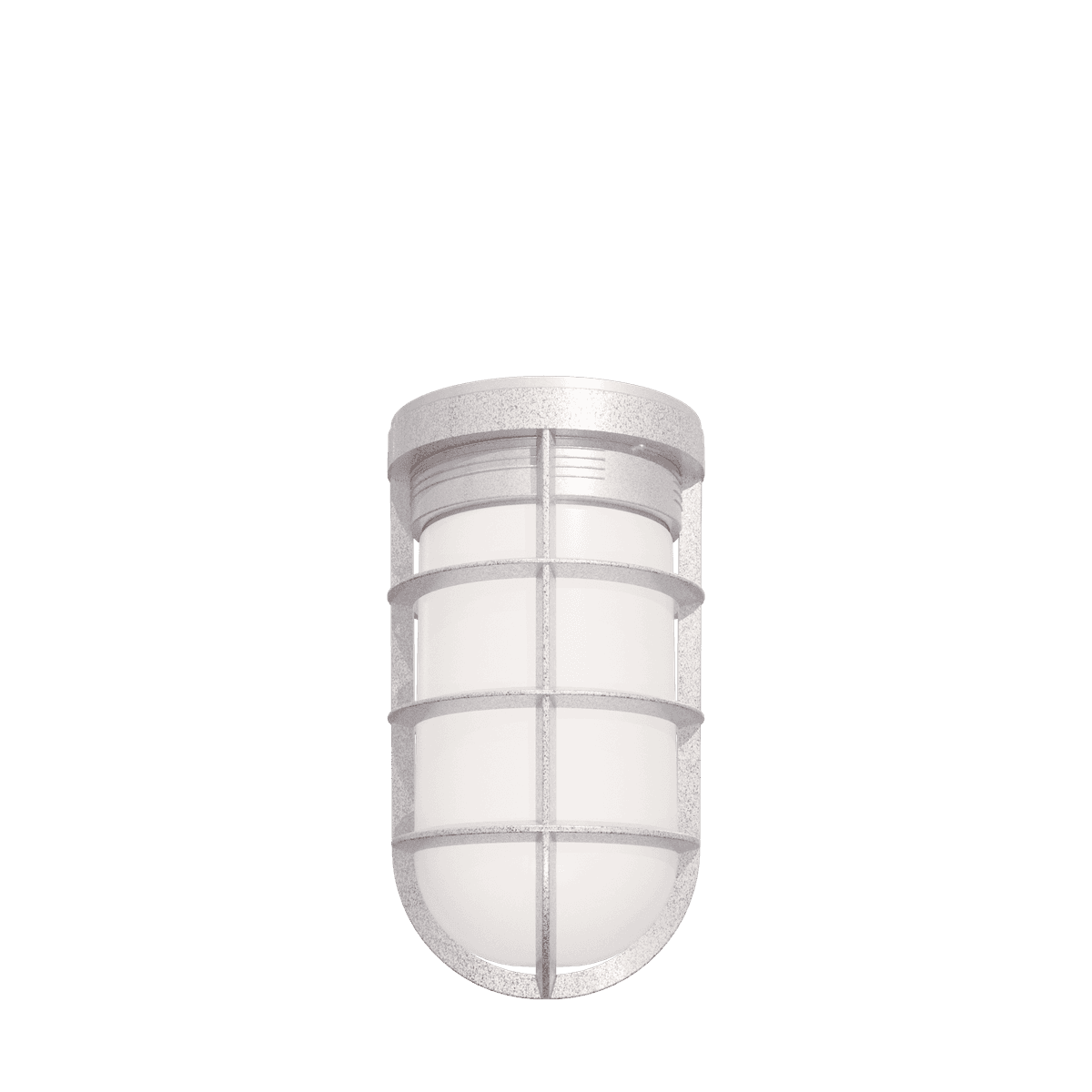

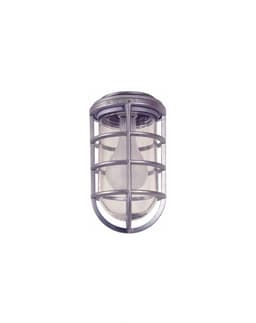

HOUSING CONSTRUCTION: Box mounting type with heavy die-cast
aluminum junction box adapter. Die-cast threaded aluminum globe fitter
assembly with exterior threads for optional die-cast aluminum screw-on
guard.
FINISH: Standard finish is textured natural aluminum. Optional powder
coat finishes are available at an additional cost. See ordering guide for
complete list of finishes.
GUARD: Threaded, die-cast aluminum with stainless steel, headless hex
type set-screw.
GLOBE: Threaded for easy lamp replacement. Standard globe is clear
glass. Optional glass globes include prismatic, opal, blue, green, amber
or red. Lexan globes in clear or colors are also available. Cast guard
option is not available with Lexan globes. See ordering guide for complete
list of globes.
REFLECTOR: Optional reflector choices include Dome, Cone, Angle, Deep
Bowl and Radial Wave. Standard finish is white. Optional powder coat
color choices are available. See ordering guide for all options.
SOCKET: Standard units include a medium base, glazed porcelain, 4KV
pulse rated lamp holder with nickel plated screw shell and spring loaded
center contact. Compact fluorescent ballast option includes GX24Q-3 /
GX24Q-4 universal 4-pin socket for 26, 32 or 42 watt triple tube lamps.
HARDWARE: All fasteners are stainless steel.
GASKETS: Memory retentive, die-cut silicone for superior sealing and heat
resistance.
APPROVALS: Listed with Underwriter’s Laboratories for
WET LOCATIONS. C-UL Listed for Canada.
BAA/BABA: Please add either BAA or BABA to end of part number if job requires.
