BRL SERIES SPECIFICATIONS

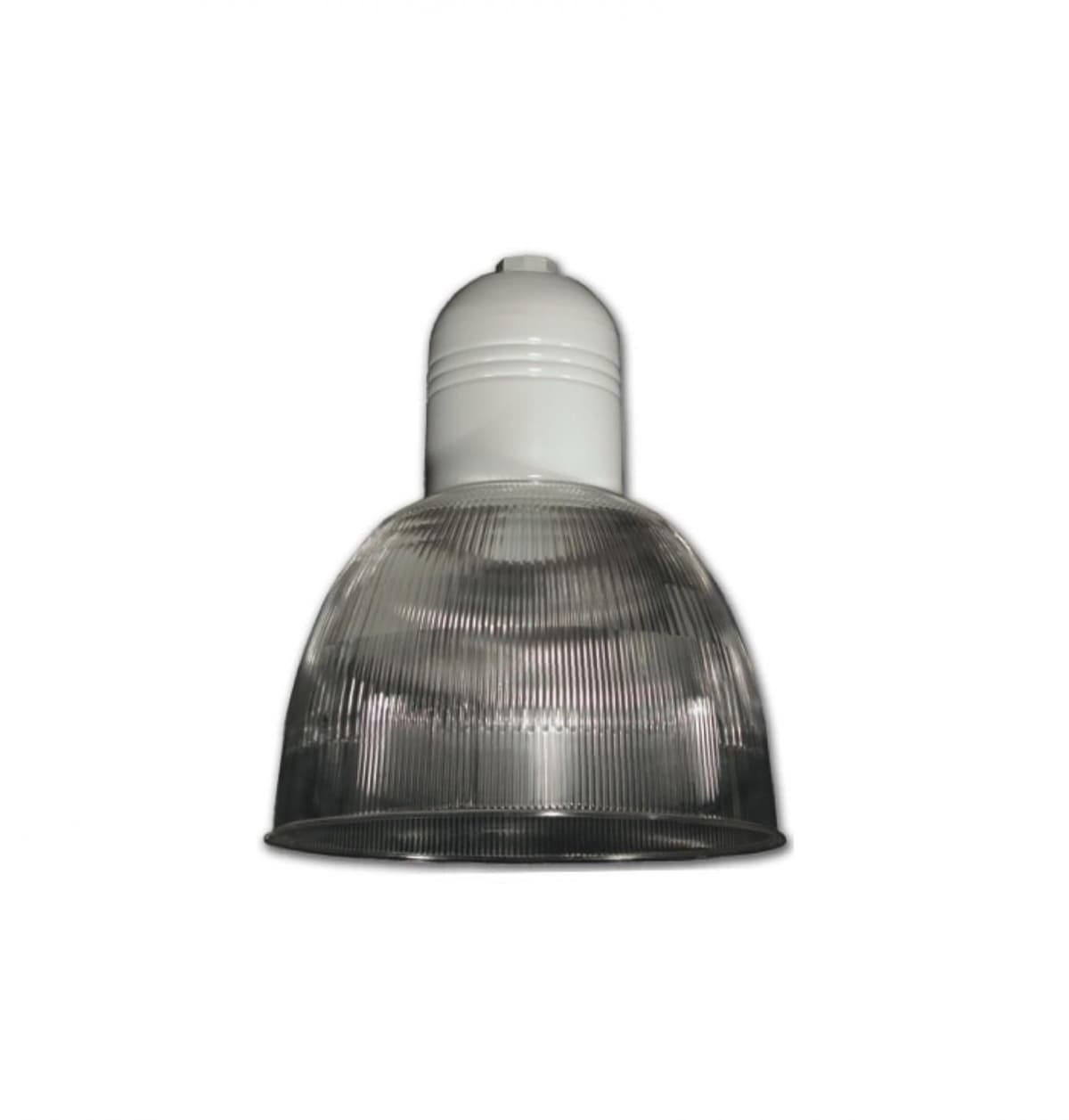

APPLICATION: Retail stores, restaurants, cafeterias, gymnasiums, convention centers, auditoriums and other large public spaces that require highly versatile, energy efficient light sources. The Bock Brilliante series is available with up to 8 high output compact fluorescent lamps or a single HID source. With optional multi-switch legs or dimming capabilities and instant-on operation the BRL offers virtually unlimited light level configurations.
HOUSING: Spun heavy gauge aluminum ballast compartment. This design ensures maximum cooling of the heat sensitive electronic components and promotes long, maintenance free fixture life.
OPTICS: Injection molded prismatic acrylic design with over 94% optical efficiency and 25% up light by Reflexor® by LEXALITE®.
MOUNTING: The BRL may be attached to a 1/2” or 3/4”pendant or bracket. Optional hook, loop, power hook receptacle, cord and plug and other convenience options are available. See options and accessories in the ordering guide.
FINISH: Ballast housing is white powder coat. Optional powder coat finishes are available at an additional cost. See ordering guide for complete list of finishes.
APPROVALS: Listed with Underwriter’s Laboratories for DAMP LOCATIONS. C-UL Listed for Canada.
COMPACT FLUORESCENT SPECIFICATIONS
LAMP TYPES: 1, 2, 4, 6 or 8 GX24Q-4 base 4-pin triple tube compact fluorescent lamps in either 26, 32, 42 or 57 watts. Optional multiple switch leg option allows stepped dimming by separately controlling the operation of 4, 6 or 8 lamps. Choose from 2700°K, 3000°K, 3500°K, or 4100°K color temperature triple tube type CFL lamps.
BALLAST: Highest quality microprocessor controlled auto sensing electronic ballast. Class P thermal protected and class A sound rated. Universal voltage and wattage ballasts allows for 120 through 277 volt input and 26, 32, 42 or 57 watt lamp operation. Optional continuous dimming requires a 2 wire 0-10 volt dimmer. Emergency battery powered ballast option available.
LAMP HOLDERS: Compact fluorescent sockets are GX24Q-4 base universal 4-pin socket for 26, 32, 42 or 57 watt triple tube lamps.
HIGH INTENSITY DISCHARGE SPECIFICATIONS
LAMP TYPES: Choice of 50 through 400 watt metal halide, pulse start metal halide or high pressure sodium. Fixtures are supplied with a phosphor coated H. I. D. lamp. BALLAST: High Intensity fixtures incorporate a normal power factor Class H core and coil reactor type ballast with integral ignitor.
LAMP HOLDER: 4KV pulse rated porcelain base with nickel plated screw shell.

BAA/BABA: Please add either BAA or BABA to end of part number if job requires.
